Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
FS75R12W2T4PB11BPSA1 LOW POWER EASY Infineon Technologies	3,997	-	RFQ		Tray	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
FS75R17W2E4PB11BPSA1 LOW POWER EASY Infineon Technologies	2,982	-	RFQ		Tray	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
FS75R12W2T4PBPSA1 LOW POWER EASY AG-EASY2B-411 Infineon Technologies	2,921	-	RFQ		Tray	EasyPACK™	Active	Trench Field Stop	Full Bridge Inverter	1200 V	107 A	375 W	2.15V @ 15V, 75A	1 mA	4.3 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
APTGT75DDA60T3G IGBT MODULE 600V 100A 250W SP3 Microchip Technology	3,657	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Dual Boost Chopper	600 V	100 A	250 W	1.9V @ 15V, 75A	250 µA	4.62 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
APTGL90A120T1G IGBT MODULE 1200V 110A 385W SP1 Microchip Technology	3,522	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Half Bridge	1200 V	110 A	385 W	2.25V @ 15V, 75A	250 µA	4.4 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Through Hole
FP15R12YT3BOMA1 IGBT MOD 1200V 25A 110W Infineon Technologies	2,638	-	RFQ	Datasheet	Tray	-	Not For New Designs	-	Three Phase Inverter	1200 V	25 A	110 W	2.15V @ 15V, 15A	5 mA	1.1 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 125°C	Chassis Mount
MIXA30WB1200TED IGBT MODULE 1200V 43A 150W E2 IXYS	2,626	-	RFQ	Datasheet	Box	-	Active	PT	Three Phase Inverter with Brake	1200 V	43 A	150 W	2.1V @ 15V, 25A	1.5 mA	-	Three Phase Bridge Rectifier	Yes	-40°C ~ 125°C (TJ)	Chassis Mount
FS25R12KT3BOSA1 IGBT MOD 1200V 40A 145W Infineon Technologies	3,134	-	RFQ	Datasheet	Tray	EconoPACK™ 2	Discontinued at Mosen	Trench Field Stop	Full Bridge	1200 V	40 A	145 W	2.15V @ 15V, 25A	5 mA	1.8 nF @ 25 V	Standard	Yes	-40°C ~ 125°C	Chassis Mount
BSM10GD120DN2BOSA1 IGBT MODULE 2 LOW PWR ECONO2-1 Infineon Technologies	3,215	-	RFQ		Tray	-	Not For New Designs	-	-	-	-	-	-	-	-	-	-	-	-
APTGLQ40H120T1G IGBT MODULE 1200V 75A 250W SP1 Microchip Technology	2,196	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Full Bridge	1200 V	75 A	250 W	2.4V @ 15V, 40A	100 µA	2.3 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Through Hole
FP15R12KE3BOMA1 MOD IGBT LOW PWR EASY2-1 Infineon Technologies	3,336	-	RFQ		Tray	-	Not For New Designs	-	-	-	-	-	-	-	-	-	-	-	-
APT60GF120JRD IGBT NPT COMBI 1200V 60A ISOTOP Microchip Technology	2,092	-	RFQ		Tube	-	Active	NPT	Single	1200 V	115 A	521 W	3.4V @ 15V, 60A	500 mA	7.08 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount

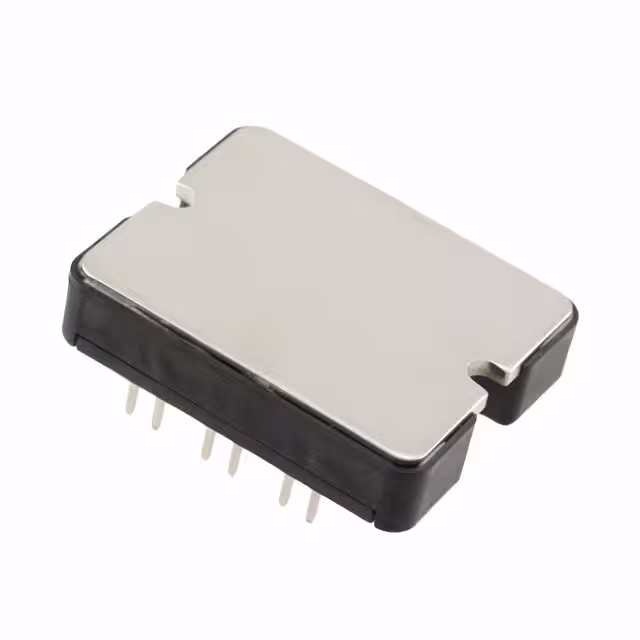

APTGT150A60T1G IGBT MODULE 600V 225A 480W SP1 Microchip Technology	2,451	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Half Bridge	600 V	225 A	480 W	1.9V @ 15V, 150A	250 µA	9.2 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
A2C35S12M3-F IGBT MOD 1200V 35A 250W ACEPACK2 STMicroelectronics	3,980	-	RFQ	Datasheet	Tray	-	Active	Trench Field Stop	Three Phase Inverter with Brake	1200 V	35 A	250 W	2.45V @ 15V, 35A	100 µA	2.154 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
NXH25T120L2Q1PG PIM Q1 3 CHANNEL T-TYPE NPC 25A onsemi	2,548	-	RFQ	Datasheet	Tray	-	Active	-	Three Phase Inverter	1200 V	25 A	81 W	2.5V @ 15V, 25A	300 µA	8.502 nF @ 20 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
NXH25T120L2Q1PTG PIM Q1 3 CHANNEL T-TYPE NPC 25A onsemi	2,800	-	RFQ	Datasheet	Tray	-	Active	-	Three Phase Inverter	1200 V	25 A	81 W	2.5V @ 15V, 25A	300 µA	8.502 nF @ 20 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount

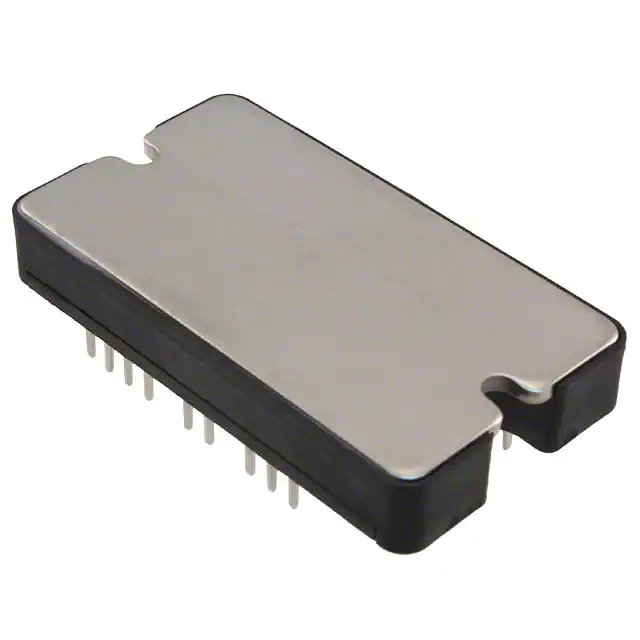

APTGL60DDA120T3G IGBT MODULE 1200V 80A 280W SP3 Microchip Technology	2,357	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Dual Boost Chopper	1200 V	80 A	280 W	2.25V @ 15V, 50A	250 µA	2.77 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
APTGL40H120T1G IGBT MODULE 1200V 65A 220W SP1 Microchip Technology	3,386	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Full Bridge	1200 V	65 A	220 W	2.25V @ 15V, 35A	250 µA	1.95 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
FB50R07W2E3B23BOMA1 LOW POWER EASY AG-EASY2B-2 Infineon Technologies	3,857	-	RFQ		Tray	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
MIXG240RF1200P-PC IGBT MODULE MIXG240RF1200PTED-PC IXYS	3,126	-	RFQ	Datasheet	Box	-	Active	-	-	-	-	-	-	-	-	-	-	-	-
