Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
IXBN75N170A IGBT MOD 1700V 75A 625W SOT227B IXYS	3,314	-	RFQ	Datasheet	Tube	BIMOSFET™	Active	-	Single	1700 V	75 A	625 W	6V @ 15V, 42A	50 µA	7.4 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount
APTGLQ100DA120T1G IGBT MODULE 1200V 170A 520W SP1 Microchip Technology	2,584	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Boost Chopper	1200 V	170 A	520 W	2.42V @ 15V, 100A	50 µA	6.15 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
MDI75-12A3 IGBT MODULE 1200V 90A 370W Y4M5 IXYS	2,976	-	RFQ	Datasheet	Box	-	Active	NPT	Single	1200 V	90 A	370 W	2.7V @ 15V, 50A	4 mA	3.3 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
NXH25C120L2C2SG IGBT MODULE, CIB 1200 V, 25 A IG onsemi	2,352	-	RFQ	Datasheet	Tube	-	Active	-	Three Phase Inverter with Brake	1200 V	25 A	20 mW	2.4V @ 15V, 25A	250 µA	6.2 nF @ 20 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Through Hole
NXH35C120L2C2S1G IGBT MOD 1200V 35A 26DIP onsemi	3,131	-	RFQ		Tube	-	Active	-	Three Phase Inverter with Brake	1200 V	35 A	20 mW	2.4V @ 15V, 35A	250 µA	8.33 nF @ 20 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Through Hole
NXH75M65L4Q1PTG 6KW H6.5 75A Q1PACK PRESS-FIT PI onsemi	2,723	-	RFQ	Datasheet	Tray	-	Active	Trench Field Stop	Half Bridge	650 V	59 A	86 W	2.22V @ 15V, 75A	300 µA	5.665 nF @ 30 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount

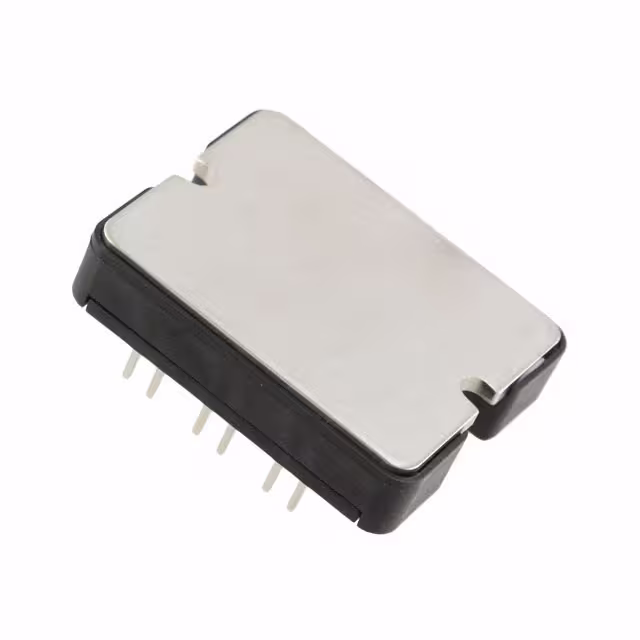

APTGT100A60T1G IGBT MODULE 600V 150A 340W SP1 Microchip Technology	2,225	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Half Bridge	600 V	150 A	340 W	1.9V @ 15V, 100A	250 µA	6.1 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
FP15R06YE3B4BOMA1 MOD IGBT LOW PWR EASY2-1 Infineon Technologies	2,955	-	RFQ		Tray	-	Not For New Designs	-	-	-	-	-	-	-	-	-	-	-	-
APTGT100DA120T1G IGBT MODULE 1200V 140A 480W SP1 Microchip Technology	2,098	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Single	1200 V	140 A	480 W	2.1V @ 15V, 100A	250 µA	7.2 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
FF150R12YT3BOMA1 IGBT MOD 1200V 200A 625W Infineon Technologies	3,626	-	RFQ		Bulk	-	Not For New Designs	-	2 Independent	1200 V	200 A	625 W	2.15V @ 15V, 150A	1 mA	10.5 nF @ 25 V	Standard	Yes	-40°C ~ 125°C	Chassis Mount
APT150GT120JR IGBT MOD 1200V 170A 830W ISOTOP Microchip Technology	3,835	-	RFQ	Datasheet	Tube	Thunderbolt IGBT®	Active	NPT	Single	1200 V	170 A	830 W	3.7V @ 15V, 150A	150 µA	9.3 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount
APTGT50DDA60T3G IGBT MODULE 600V 80A 176W SP3 Microchip Technology	2,299	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Dual Boost Chopper	600 V	80 A	176 W	1.9V @ 15V, 50A	250 µA	3.15 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
MII75-12A3 IGBT MODULE 1200V 90A 370W Y4M5 IXYS	3,990	-	RFQ	Datasheet	Box	-	Active	NPT	Half Bridge	1200 V	90 A	370 W	2.7V @ 15V, 50A	4 mA	3.3 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
MIXA10WB1200TED IGBT MODULE 1200V 17A 60W E2 IXYS	3,053	-	RFQ	Datasheet	Box	-	Active	PT	Three Phase Inverter with Brake	1200 V	17 A	60 W	2.1V @ 15V, 9A	700 µA	-	Three Phase Bridge Rectifier	Yes	-40°C ~ 125°C (TJ)	Chassis Mount
APTGLQ30H65T3G IGBT MODULE 650V 40A 95W Microchip Technology	3,293	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Full Bridge	650 V	40 A	95 W	2.3V @ 15V, 30A	50 µA	1.9 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
APTGLQ25H120T1G IGBT MODULE 1200V 50A 165W SP1 Microchip Technology	3,309	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Full Bridge	1200 V	50 A	165 W	2.42V @ 15V, 25A	50 µA	1.43 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount

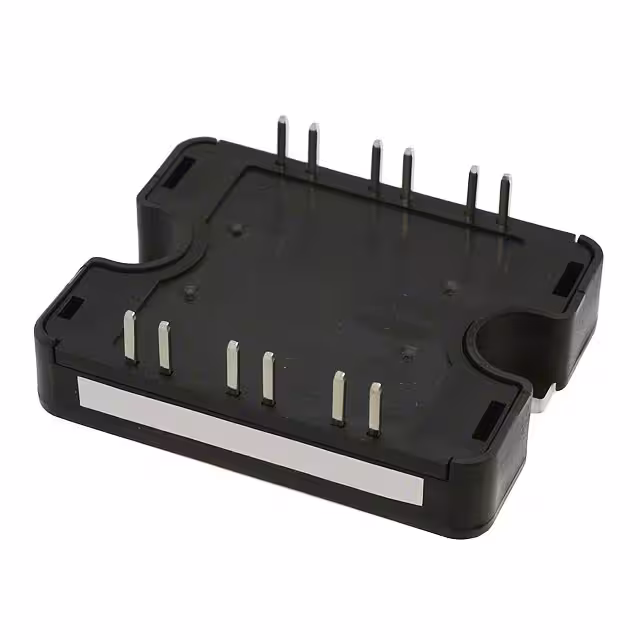

APTGT50A120T1G IGBT MODULE 1200V 75A 277W SP1 Microchip Technology	2,665	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Half Bridge	1200 V	75 A	277 W	2.1V @ 15V, 50A	250 µA	3.6 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
DF200R12W1H3B27BOMA1 IGBT MOD 1200V 30A 375W Infineon Technologies	3,398	-	RFQ	Datasheet	Bulk	-	Active	-	2 Independent	1200 V	30 A	375 W	1.3V @ 15V, 30A	1 mA	2 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
FP10R12YT3BOMA1 MOD IGBT LOW PWR EASY2-1 Infineon Technologies	2,993	-	RFQ		Tray	-	Not For New Designs	-	-	-	-	-	-	-	-	-	-	-	-
FP20R06YE3B4BOMA1 MOD IGBT LOW PWR EASY2-1 Infineon Technologies	2,773	-	RFQ		Tray	-	Not For New Designs	-	-	-	-	-	-	-	-	-	-	-	-
