Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
FP75R12N2T7BPSA2 LOW POWER ECONO Infineon Technologies	3,996	-	RFQ	Datasheet	Tray	EconoPIM™ 2	Active	Trench Field Stop	Three Phase Inverter	1200 V	75 A	20 mW	1.55V @ 15V, 75A	14 µA	15.1 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
FF225R12ME4B11BPSA2 MEDIUM POWER ECONO AG-ECONOD-411 Infineon Technologies	2,528	-	RFQ	Datasheet	Tray	EconoDUAL™ 3	Active	Trench Field Stop	2 Independent	1200 V	320 A	1050 W	2.15V @ 15V, 225A	3 mA	13 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount

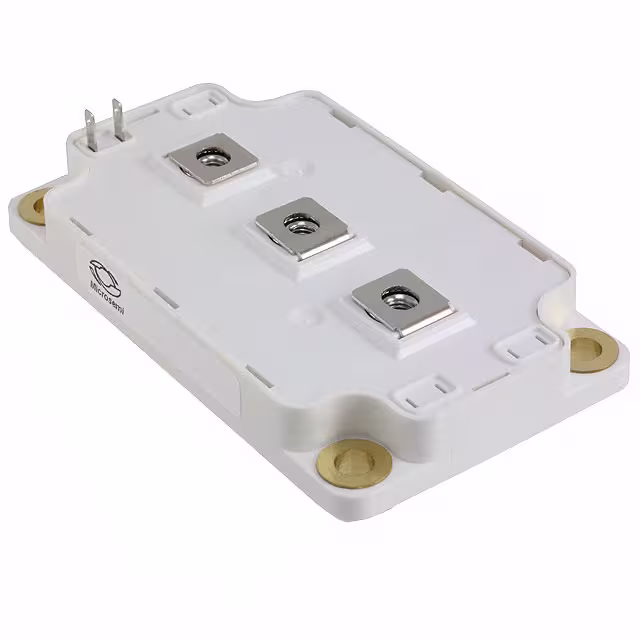

APTGT150DA120G IGBT MODULE 1200V 220A 690W SP6 Microchip Technology	2,650	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Single	1200 V	220 A	690 W	2.1V @ 15V, 150A	350 µA	10.7 nF @ 25 V	Standard	No	-	Chassis Mount

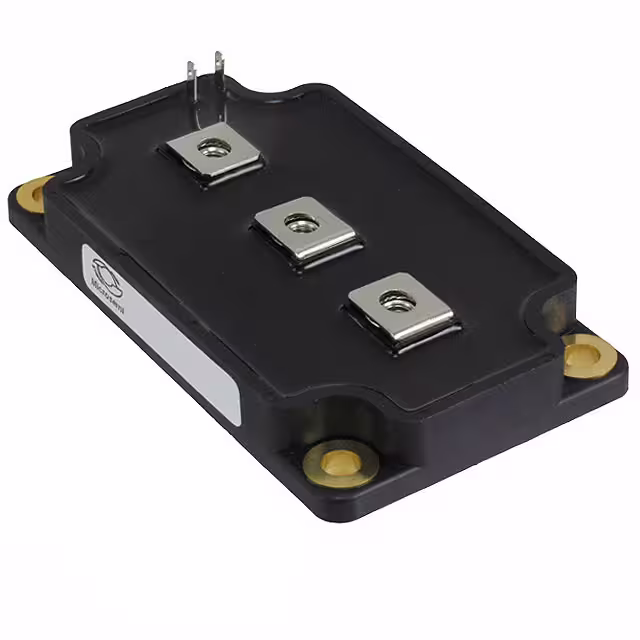

APTGT150SK120G IGBT MODULE 1200V 220A 690W SP6 Microchip Technology	3,668	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Single	1200 V	220 A	690 W	2.1V @ 15V, 150A	350 µA	10.7 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
FP75R12N2T7B11BPSA2 LOW POWER ECONO Infineon Technologies	2,388	-	RFQ	Datasheet	Tray	EconoPIM™ 2	Active	Trench Field Stop	Three Phase Inverter	1200 V	75 A	20 mW	1.55V @ 15V, 75A	14 µA	15.1 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
MUBW50-17T8 IGBT MODULE 1700V 74A 290W E3 IXYS	2,936	-	RFQ	Datasheet	Box	-	Active	Trench	Three Phase Inverter with Brake	1700 V	74 A	290 W	2.4V @ 15V, 50A	400 µA	4.4 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 125°C (TJ)	Chassis Mount
FF225R12ME3BOSA1 IGBT MOD 1200V 325A 1150W Infineon Technologies	183	-	RFQ		Bulk,Tray	EconoDUAL™	Not For New Designs	Trench Field Stop	Half Bridge	1200 V	325 A	1150 W	2.15V @ 15V, 225A	5 mA	16 nF @ 25 V	Standard	Yes	-40°C ~ 125°C	Chassis Mount
APTGT300DA60D3G IGBT MODULE 600V 400A 940W D3 Microchip Technology	3,517	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Single	600 V	400 A	940 W	1.9V @ 15V, 300A	500 µA	18.5 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount
FF200R12KE3B2HOSA1 IGBT MOD 1200V 295A 1050W Infineon Technologies	2,777	-	RFQ		Tray	-	Active	-	Half Bridge	1200 V	295 A	1050 W	2.15V @ 15V, 200A	5 mA	14 nF @ 25 V	Standard	No	-40°C ~ 125°C	Chassis Mount
BSM50GX120DN2BOSA1 IGBT MODULE 2 LOW PWR ECONO2-2 Infineon Technologies	3,861	-	RFQ		Bulk,Tray	-	Last Time Buy	-	-	-	-	-	-	-	-	-	-	-	-
FS50R17KE3B17BPSA1 LOW POWER ECONO AG-ECONO2B-311 Infineon Technologies	3,333	-	RFQ	Datasheet	Tray	EconoPACK™ 2	Active	Trench Field Stop	Three Phase Inverter	1700 V	82 A	345 W	2.45V @ 15V, 50A	1 mA	4.5 nF @ 25 V	Standard	No	-40°C ~ 125°C (TJ)	Chassis Mount
MIEB101W1200EH IGBT MODULE 1200V 183A 630W E3 IXYS	2,337	-	RFQ	Datasheet	Box	-	Active	-	Three Phase Inverter	1200 V	183 A	630 W	2.2V @ 15V, 100A	300 µA	7.43 nF @ 25 V	Standard	No	-40°C ~ 125°C (TJ)	Chassis Mount
MII200-12A4 IGBT MOD 1200V 270A 1130W Y3DCB IXYS	3,683	-	RFQ	Datasheet	Box	-	Active	NPT	Half Bridge	1200 V	270 A	1130 W	2.7V @ 15V, 150A	10 mA	11 nF @ 25 V	Standard	No	150°C (TJ)	Chassis Mount

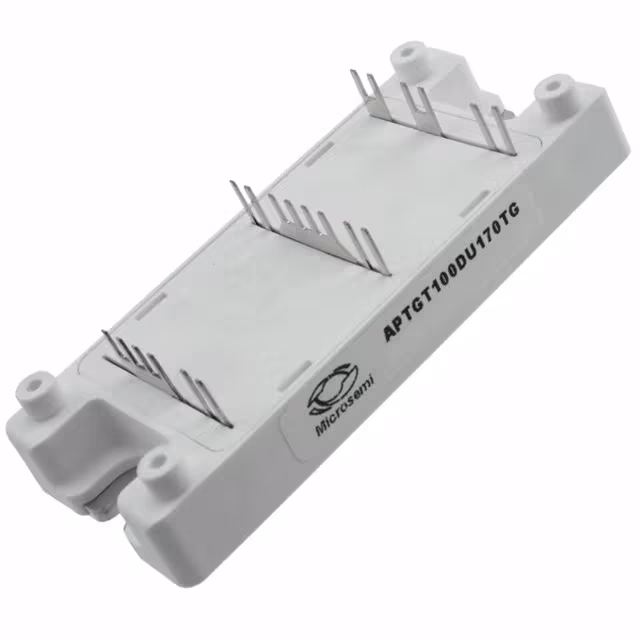

APTGT100DU170TG IGBT MODULE 1700V 150A 560W SP4 Microchip Technology	3,403	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Dual, Common Source	1700 V	150 A	560 W	2.4V @ 15V, 100A	250 µA	9 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount

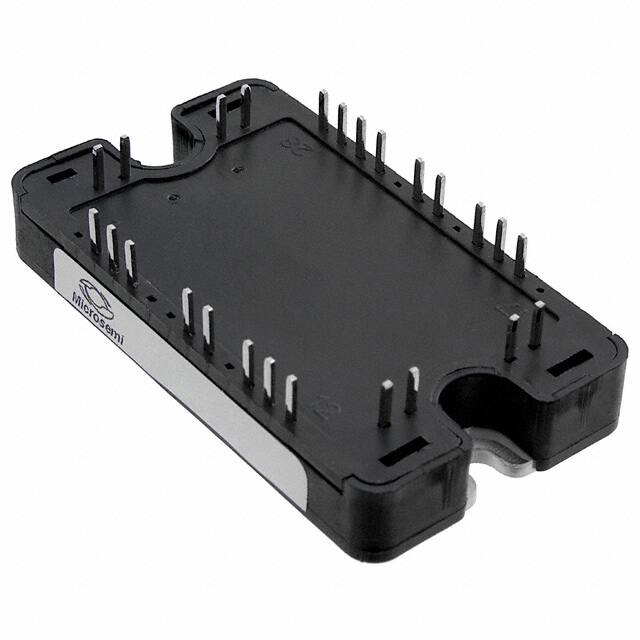

APTGT100A170TG IGBT MODULE 1700V 150A 560W SP4 Microchip Technology	3,969	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Half Bridge	1700 V	150 A	560 W	2.4V @ 15V, 100A	250 µA	9 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
APTGT150DU120TG IGBT MODULE 1200V 220A 690W SP4 Microchip Technology	3,636	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Dual, Common Source	1200 V	220 A	690 W	2.1V @ 15V, 150A	250 µA	10.7 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
APTGT150A120TG IGBT MODULE 1200V 220A 690W SP4 Microchip Technology	2,273	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Half Bridge	1200 V	220 A	690 W	2.1V @ 15V, 150A	250 µA	10.7 nF @ 25 V	Standard	Yes	-	Chassis Mount
BYM300A120DN2HOSA1 IGBT MOD 1200V 450A 1000W Infineon Technologies	2,456	-	RFQ	Datasheet	Tray	-	Not For New Designs	-	Single	1200 V	450 A	1000 W	-	-	-	Standard	No	150°C (TJ)	Chassis Mount
FF300R12KE4B2HOSA1 IGBT MOD 1200V 460A 1600W Infineon Technologies	2,684	-	RFQ	Datasheet	Bulk,Tray	C	Active	Trench Field Stop	2 Independent	1200 V	460 A	1600 W	2.15V @ 15V, 300A	5 mA	19 nF @ 25 V	Standard	No	-40°C ~ 150°C	Chassis Mount
FZ600R12KP4HOSA1 IGBT MODULE 1200V 600A Infineon Technologies	3,461	-	RFQ	Datasheet	Bulk,Tray	C	Active	Trench Field Stop	Single	1200 V	600 A	-	2.05V @ 15V, 600A	5 mA	42 nF @ 25 V	Standard	No	-40°C ~ 150°C	Chassis Mount
