Transistors - IGBTs - Modules- Page 58

MAX3232IDR AOZ5311NQI-03 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
FS75R12KT4B11BPSA1 LOW POWER ECONO AG-ECONO2B-411 Infineon Technologies	2,754	-	RFQ	Datasheet	Tray	EconoPACK™ 2	Active	Trench Field Stop	Three Phase Inverter	1200 V	75 A	20 mW	2.15V @ 15V, 75A	1 mA	4.3 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
FS75R12KT4BPSA2 LOW POWER ECONO AG-ECONO2B-411 Infineon Technologies	3,620	-	RFQ	Datasheet	Tray	EconoPACK™ 2	Active	Trench Field Stop	Three Phase Inverter	1200 V	75 A	20 mW	2.15V @ 15V, 75A	1 mA	4.3 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount

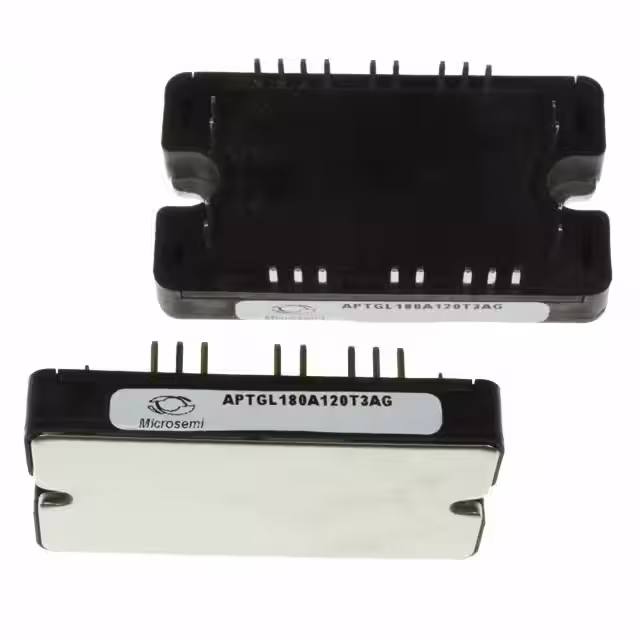

APTGL180A120T3AG IGBT MODULE 1200V 230A 940W SP3 Microchip Technology	3,838	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Half Bridge	1200 V	230 A	940 W	2.2V @ 15V, 150A	300 µA	9.3 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
APTGLQ80HR120CT3G IGBT MODULE 1200V 150A 500W SP3 Microchip Technology	2,329	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	-	1200 V	150 A	500 W	2.4V @ 15V, 80A	150 µA	4.6 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Through Hole
MII150-12A4 IGBT MOD 1200V 180A 760W Y3DCB IXYS	2,130	-	RFQ	Datasheet	Box	-	Active	NPT	Half Bridge	1200 V	180 A	760 W	2.7V @ 15V, 100A	7.5 mA	6.6 nF @ 25 V	Standard	No	150°C (TJ)	Chassis Mount
MWI75-12T7T IGBT MODULE 1200V 110A 355W E2 IXYS	3,663	-	RFQ	Datasheet	Box	-	Active	Trench	Three Phase Inverter	1200 V	110 A	355 W	2.15V @ 15V, 75A	4 mA	5.35 nF @ 25 V	Standard	Yes	-40°C ~ 125°C (TJ)	Chassis Mount
APTGT100H60TG IGBT MODULE 600V 150A 340W SP4 Microchip Technology	3,925	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Full Bridge Inverter	600 V	150 A	340 W	1.9V @ 15V, 100A	250 µA	6.1 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
FF200R12KE4PHOSA1 IGBT MODULE 1200V 200A Infineon Technologies	2,638	-	RFQ	Datasheet	Tray	C	Active	Trench Field Stop	Half Bridge	1200 V	200 A	-	2.15V @ 15V, 200A	5 mA	14 nF @ 25 V	Standard	No	-40°C ~ 150°C	Chassis Mount
APTCV60HM45BC20T3G IGBT MODULE 600V 50A 250W SP3 Microchip Technology	3,412	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Boost Chopper, Full Bridge	600 V	50 A	250 W	1.9V @ 15V, 50A	250 µA	3.15 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
F450R12KS4B11BPSA1 LOW POWER ECONO AG-ECONO2B-211 Infineon Technologies	3,147	-	RFQ	Datasheet	Tray	EconoPACK™ 2	Active	-	Full Bridge Inverter	1200 V	70 A	355 W	3.75V @ 15V, 50A	1 mA	3.4 nF @ 25 V	Standard	Yes	-40°C ~ 125°C (TJ)	Chassis Mount
FS75R12KT4PB11BPSA1 IGBT MODULE LOW PWR ECONO2-6 Infineon Technologies	3,501	-	RFQ		Tray	EconoPACK™ 2	Active	-	-	-	-	-	-	-	-	-	-	-	-
MIXA100W1200TEH IGBT MODULE 1200V 155A 500W E3 IXYS	2,061	-	RFQ	Datasheet	Box	-	Active	PT	Three Phase Inverter	1200 V	155 A	500 W	2.1V @ 15V, 100A	300 µA	-	Standard	Yes	-40°C ~ 125°C (TJ)	Chassis Mount
MIXG120W1200PTEH IGBT MODULE - SIXPACK E3-PACK-PF IXYS	3,803	-	RFQ		Box	-	Active	-	-	-	-	-	-	-	-	-	-	-	-
APTGLQ200A120T3AG IGBT MOD 1200V 400A 1250W SP3F Microchip Technology	2,832	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	2 Independent	1200 V	400 A	1250 W	2.4V @ 15V, 160A	100 µA	9.3 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
FZ400R12KE3B1HOSA1 IGBT MOD 1200V 650A 2250W Infineon Technologies	2,749	-	RFQ	Datasheet	Tray	-	Active	-	Single	1200 V	650 A	2250 W	2.15V @ 15V, 400A	5 mA	28 nF @ 25 V	Standard	No	-40°C ~ 125°C	Chassis Mount
MIXG330PF1200PTSF IGBT MODULE - PHASELEG SIMBUS F- IXYS	3,251	-	RFQ		Box	-	Active	-	-	-	-	-	-	-	-	-	-	-	-
DF450R12N2E4PB11BPSA1 IGBT MODULE LOW POWER ECONO Infineon Technologies	2,008	-	RFQ		Tray	-	Active	-	-	-	-	-	-	-	-	-	-	-	-
FP25R12KS4CBPSA1 LOW POWER ECONO AG-ECONO2C-211 Infineon Technologies	2,286	-	RFQ	Datasheet	Tray	-	Last Time Buy	-	Three Phase Inverter	1200 V	40 A	230 W	3.7V @ 15V, 25A	5 mA	1.5 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 125°C (TJ)	Chassis Mount
BSM35GD120DLCE3224BOSA1 IGBT MOD 1200V 70A 280W Infineon Technologies	3,909	-	RFQ		Bulk,Tray	-	Last Time Buy	-	Full Bridge	1200 V	70 A	280 W	2.6V @ 15V, 35A	80 µA	2 nF @ 25 V	Standard	No	-40°C ~ 125°C	Chassis Mount
MUBW50-12A8 IGBT MODULE 1200V 85A 350W E3 IXYS	3,405	-	RFQ	Datasheet	Box	-	Active	NPT	Three Phase Inverter with Brake	1200 V	85 A	350 W	2.6V @ 15V, 50A	3.7 mA	3.3 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 125°C (TJ)	Chassis Mount
