Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType

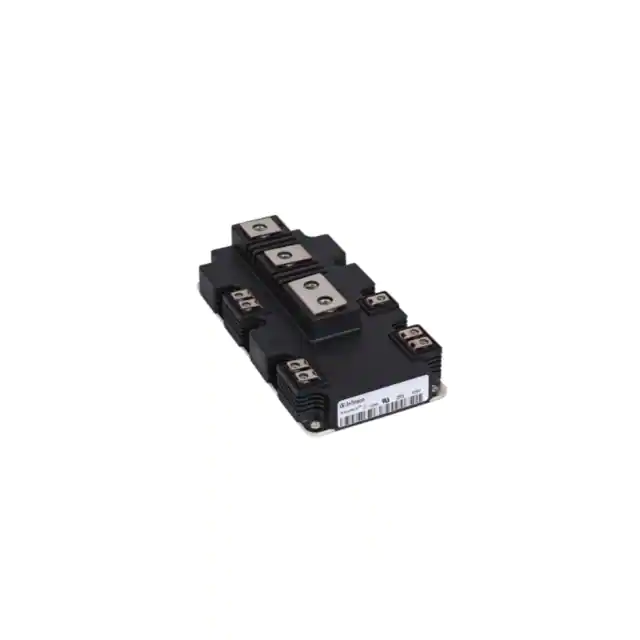

FF900R12IE4BOSA1 IGBT MOD 1200V 900A 5100W Infineon Technologies	3,733	-	RFQ	Datasheet	Tray	PrimePack™2	Active	Trench Field Stop	Single	1200 V	900 A	5100 W	2.05V @ 15V, 900A	5 mA	54 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
FS820R08A6P2LBBPSA1 IGBT MODULE 820A HYBRID PK DRIVE Infineon Technologies	2,044	-	RFQ	Datasheet	Tray	HybridPACK™	Active	Trench Field Stop	Three Phase Inverter	-	820 A	-	-	-	-	Standard	No	175°C (TJ)	Chassis Mount
FS950R08A6P2BBPSA1 IGBT MODULE 750V 950A Infineon Technologies	2,967	-	RFQ	Datasheet	Tray	HybridPACK™	Active	Trench Field Stop	Three Phase Inverter	750 V	950 A	870 W	1.35V @ 15V, 450A	1 mA	-	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount

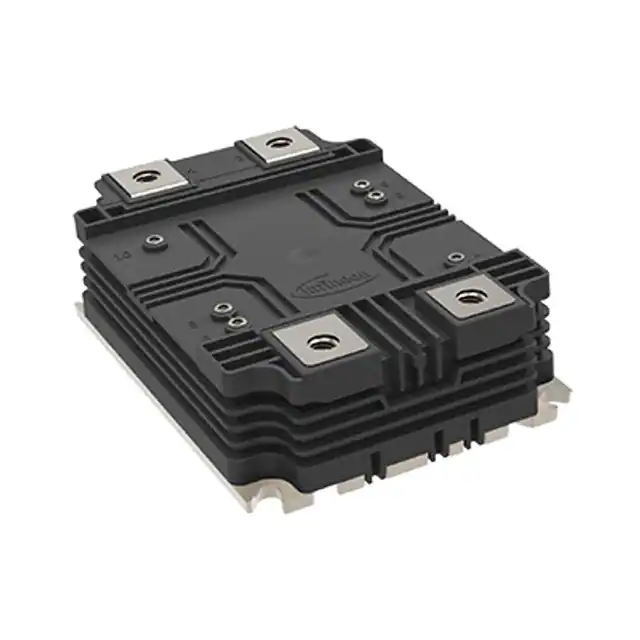

FF450R33T3E3BPSA1 IGBT MOD 3300V 450A AGXHP100-3 Infineon Technologies	2,493	-	RFQ	Datasheet	Tray	XHP™3	Active	Trench Field Stop	Half Bridge	3300 V	450 A	1000000 W	2.75V @ 15V, 450A	5 mA	-	Standard	No	-40°C ~ 150°C	Chassis Mount
FF450R33T3E3B5BPSA1 IGBT MOD 3300V 450A AGXHP100-6 Infineon Technologies	3,589	-	RFQ	Datasheet	Tray	XHP™3	Active	Trench Field Stop	Half Bridge Inverter	3300 V	450 A	1000000 W	2.75V @ 15V, 450A	5 mA	84 nF @ 25 V	Standard	No	-40°C ~ 150°C	Chassis Mount

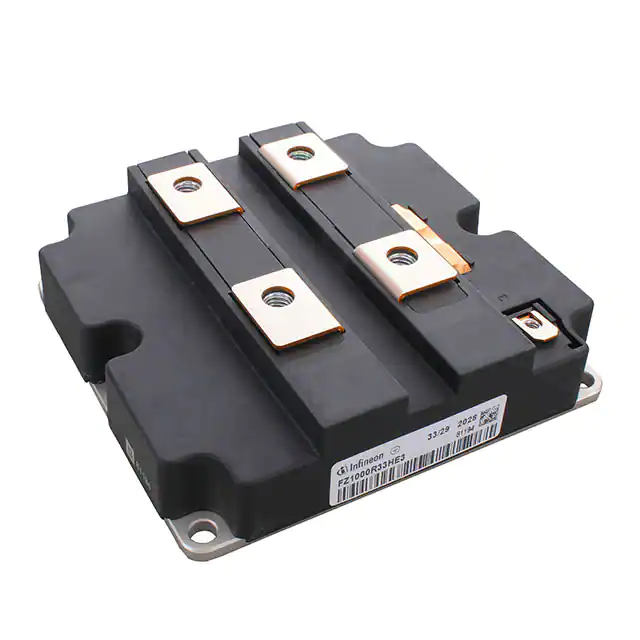

FZ1000R33HE3BPSA1 IGBT MODULE 3300V 1000A Infineon Technologies	2,167	-	RFQ	Datasheet	Tray	IHM-B	Active	Trench Field Stop	Single Switch	3300 V	1000 A	-	3.1V @ 15V, 100A	5 mA	190 nF @ 25 V	Standard	No	-40°C ~ 150°C	Chassis Mount
FF1800R17IP5PBPSA1 IGBT MODULE 1700V 3600A Infineon Technologies	2,795	-	RFQ	Datasheet	Tray	PrimePACK™3+	Active	Trench Field Stop	Half Bridge	1700 V	3600 A	1800000 W	2.2V @ 15V, 1800A	5 mA	105 nF @ 25 V	Standard	Yes	-40°C ~ 175°C	Chassis Mount
FZ2400R17HP4B29BOSA2 IGBT MODULE 1700V 4800A Infineon Technologies	2,520	-	RFQ	Datasheet	Tray	IHM-B	Active	Trench Field Stop	Single Switch	1700 V	4800 A	15500 W	2.25V @ 15V, 2400A	5 mA	195 nF @ 25 V	Standard	No	-40°C ~ 150°C	Chassis Mount
F3L150R12W2H3B11BPSA1 IGBT MOD 1200V 75A 500W Infineon Technologies	3,704	-	RFQ	Datasheet	Tray	EasyPACK™	Active	-	Three Phase Inverter	1200 V	75 A	500 W	1.75V @ 15V, 75A	1 mA	8.7 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
FZ1500R33HE3BPSA1 IGBT MODULE 3300V 1500A Infineon Technologies	3,757	-	RFQ	Datasheet	Tray	IHM-B	Active	Trench Field Stop	Full Bridge	3300 V	1500 A	17000 W	3.1V @ 15V, 1500A	5 mA	280 nF @ 25 V	Standard	No	-40°C ~ 150°C	Chassis Mount

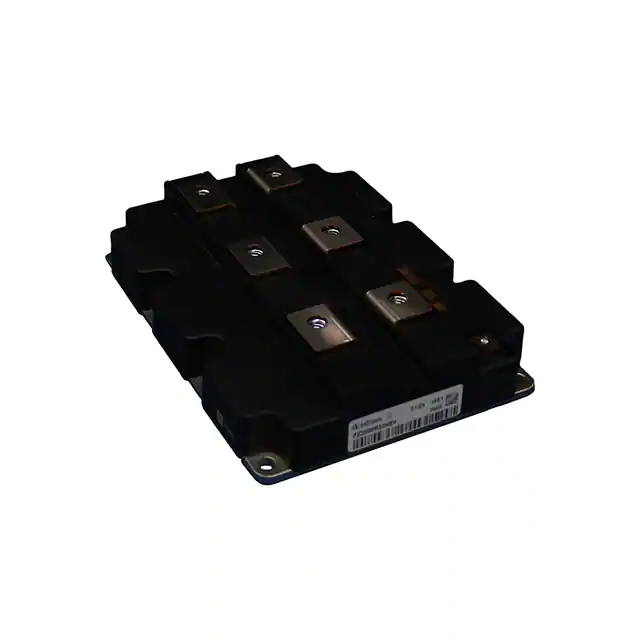

FZ2000R33HE4BOSA1 IGBT MOD IHV IHM T XHP 3 3-6 5K Infineon Technologies	2,425	-	RFQ		Tray	IHM-B	Active	Trench Field Stop	Single Switch	3300 V	2000 A	4.2 mW	2.2V @ 15V, 2kA (Typ)	5 mA	280 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
FF150R12KT3GHOSA1 IGBT MOD 1200V 225A 780W Infineon Technologies	3,034	-	RFQ	Datasheet	Tray	C	Not For New Designs	Trench Field Stop	Single Chopper	1200 V	225 A	780 W	2.15V @ 15V, 150A	5 mA	11 nF @ 25 V	Standard	No	-40°C ~ 125°C	Chassis Mount
FF200R12KE3HOSA1 IGBT MODULE 1200V 1050W Infineon Technologies	2,373	-	RFQ	Datasheet	Tray	-	Active	-	2 Independent	1200 V	-	1050 W	2.15V @ 15V, 200A	5 mA	14 nF @ 25 V	Standard	Yes	-40°C ~ 125°C	Chassis Mount
FP75R12KT4B15BOSA1 IGBT MOD 1200V 75A 385W Infineon Technologies	3,834	-	RFQ	Datasheet	Tray	EconoPIM™ 3	Active	Trench Field Stop	Three Phase Inverter	1200 V	75 A	385 W	2.15V @ 15V, 75A	1 mA	4.3 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount

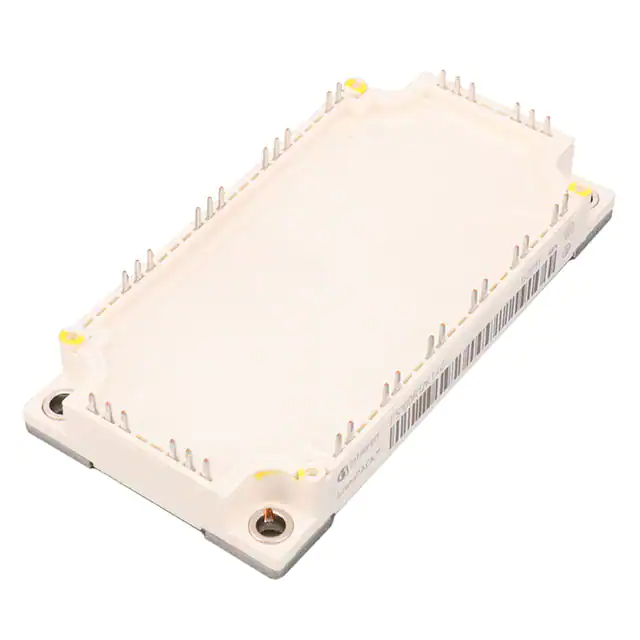

FS100R12KT4GBOSA1 IGBT MOD 1200V 100A 515W Infineon Technologies	2,495	-	RFQ	Datasheet	Tray	EconoPACK™ 3	Not For New Designs	Trench Field Stop	Three Phase Inverter	1200 V	100 A	515 W	2.2V @ 15V, 100A	1 mA	6.3 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
2ED300C17STROHSBPSA1 IGBT MODULE 1700V 30A Infineon Technologies	3,189	-	RFQ	Datasheet	Tray	EiceDriver™	Active	-	2 Independent	1700 V	-	-	-	-	-	Standard	No	-40°C ~ 85°C	Through Hole
FS200R07N3E4RBOSA1 IGBT MOD 650V 200A 600W Infineon Technologies	2,562	-	RFQ	Datasheet	Tray	EconoPACK™ 3	Active	Trench Field Stop	Three Phase Inverter	650 V	200 A	600 W	1.95V @ 15V, 200A	1 mA	13 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
FP100R12KT4BOSA1 IGBT MOD 1200V 100A 515W Infineon Technologies	2,213	-	RFQ	Datasheet	Tray	EconoPIM™ 3	Active	Trench Field Stop	Three Phase Inverter	1200 V	100 A	515 W	2.2V @ 15V, 100A	1 mA	6.3 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
FP20R06W1E3BOMA1 IGBT MODULE 600V 27A 94W Infineon Technologies	3,215	-	RFQ	Datasheet	Tray	-	Active	Trench Field Stop	Three Phase Inverter	600 V	27 A	94 W	2V @ 15V, 20A	1 mA	1.1 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
APT85GR120JD60 IGBT MOD 1200V 116A 543W SOT227 Microchip Technology	2,636	-	RFQ	Datasheet	Tube	-	Active	NPT	Single	1200 V	116 A	543 W	3.2V @ 15V, 85A	1.1 mA	8.4 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount
