Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
FS225R12OE4BOSA1 IGBT MOD 1200V 350A 1250W Infineon Technologies	2,669	-	RFQ	Datasheet	Tray	EconoPACK™+	Active	Trench Field Stop	Full Bridge Inverter	1200 V	350 A	1250 W	2.15V @ 15V, 225A	3 mA	13 nF @ 25 V	Standard	Yes	-40°C ~ 125°C	Chassis Mount
FS225R17OE4BOSA1 IGBT MOD 1700V 350A 1450W Infineon Technologies	2,576	-	RFQ	Datasheet	Tray	EconoPACK™+	Active	Trench Field Stop	Three Phase Inverter	1700 V	350 A	1450 W	2.3V @ 15V, 225A	3 mA	600 pF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount

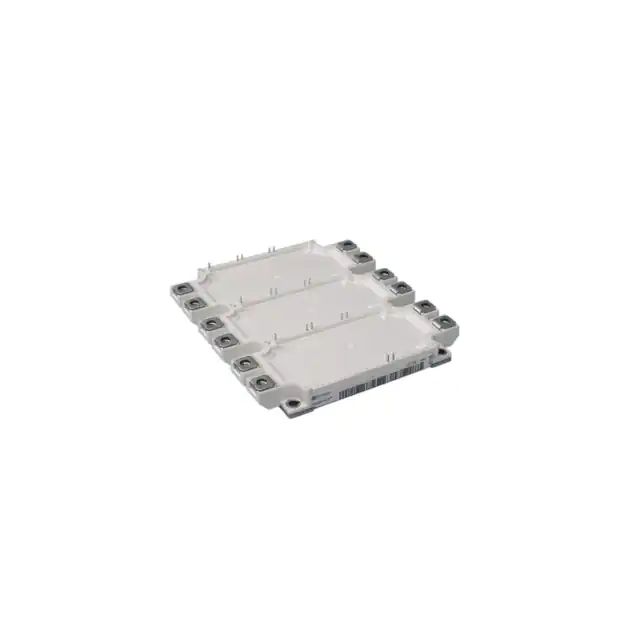

FS450R12OE4BOSA1 IGBT MOD 1200V 660A 2250W Infineon Technologies	3,945	-	RFQ	Datasheet	Tray	-	Active	Trench Field Stop	Three Phase Inverter	1200 V	660 A	2250 W	2.1V @ 15V, 450A	3 mA	28 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
FS300R12OE4B81BPSA1 MEDIUM POWER ECONO Infineon Technologies	2,873	-	RFQ	Datasheet	Tray	EconoPACK™+	Active	Trench Field Stop	Three Phase Inverter	1200 V	300 A	20 mW	2.1V @ 15V, 300A	3 mA	18.5 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
FS450R12OE4B81BPSA1 MEDIUM POWER ECONO Infineon Technologies	2,638	-	RFQ	Datasheet	Tray	EconoPACK™+	Active	Trench Field Stop	Three Phase Inverter	1200 V	450 A	20 mW	2.1V @ 15V, 450A	3 mA	27.9 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
FMS7G20US60S IGBT, 20A, 600V, N-CHANNEL Fairchild Semiconductor	2,293	-	RFQ	Datasheet	Box	-	Obsolete	-	Three Phase Inverter with Brake	600 V	20 A	89 W	2.7V @ 15V, 20A	250 µA	1.277 nF @ 30 V	Single Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
HGT1N30N60A4D IGBT, 96A, 600V, N-CHANNEL Fairchild Semiconductor	844	-	RFQ	Datasheet	Tube	-	Obsolete	-	Single	600 V	96 A	255 W	2.7V @ 15V, 30A	250 µA	-	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount
FS50R12N2T7B15BPSA2 LOW POWER ECONO Infineon Technologies	2,732	-	RFQ	Datasheet	Tray	EconoPACK™ 2	Active	Trench Field Stop	Full Bridge Inverter	1200 V	50 A	20 mW	1.8V @ 15V, 50A	10 µA	11.1 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
FS50R12KT4B15BPSA1 LOW POWER ECONO AG-ECONO2B-411 Infineon Technologies	2,029	-	RFQ	Datasheet	Tray	EconoPACK™ 2	Active	Trench Field Stop	Three Phase Inverter	1200 V	50 A	280 W	2.15V @ 15V, 50A	1 mA	2.8 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
NXH200B100H4F2SG 1500V F2 BOOST FOR SOLAR PIM onsemi	3,888	-	RFQ		Tray	*	Active	-	-	-	-	-	-	-	-	-	-	-	-

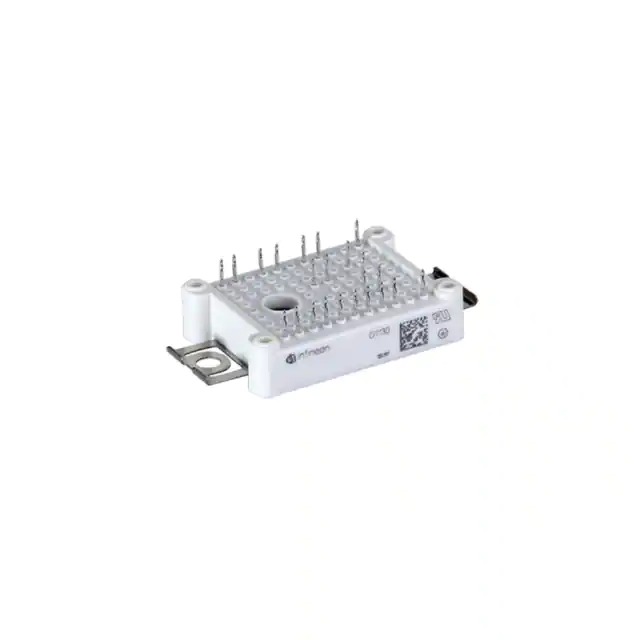

FP25R12W1T7PBPSA1 LOW POWER EASY AG-EASY1B-711 Infineon Technologies	3,452	-	RFQ		Tray	EasyPIM™	Active	Trench Field Stop	Three Phase Inverter	1200 V	25 A	20 mW	-	5.6 µA	4.77 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
FS300R17OE4B81BPSA1 MEDIUM POWER ECONO Infineon Technologies	2,570	-	RFQ	Datasheet	Tray	EconoPACK™+	Active	Trench Field Stop	Three Phase Inverter	1700 V	300 A	20 mW	2.3V @ 15V, 300A	3 mA	24.3 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
FS500R17OE4DB81BPSA1 MEDIUM POWER ECONO Infineon Technologies	2,938	-	RFQ	Datasheet	Tray	EconoPACK™+	Active	Trench Field Stop	Three Phase Inverter	1700 V	500 A	20 mW	2.3V @ 15V, 500A	3 mA	40 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount

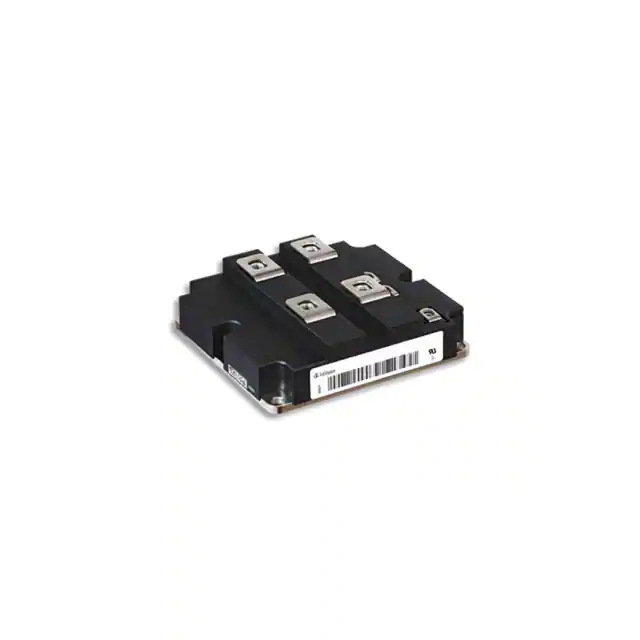

FZ1400R33HE4BPSA1 IGBT MODULE DIODE HVB130-3 Infineon Technologies	3,508	-	RFQ	Datasheet	Tray	-	Active	Trench Field Stop	2 Independent	3300 V	1400 A	-	2.3V @ 15V, 1400A (Typ)	5 mA	187 nF @ 25 V	Single Phase Bridge Rectifier	No	-40°C ~ 150°C (TJ)	Chassis Mount
FSBF15CH60BT-F166 POWER DRIVER MODULE IGBT 600V 15 onsemi	2,569	-	RFQ	Datasheet	Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
FP10R12W1T4PBPSA1 IGBT MOD 1200V 20A 20MW Infineon Technologies	2,832	-	RFQ	Datasheet	Tray	EasyPIM™ 1B	Active	Trench Field Stop	Three Phase Inverter	1200 V	20 A	20 mW	2.25V @ 15V, 10A	1 mA	600 pF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C	Chassis Mount
APT40GF120JRD IGBT NPT COMBI 1200V 40A ISOTOP Microchip Technology	3,938	-	RFQ		Tube	-	Active	-	Single	1200 V	60 A	390 W	3.4V @ 15V, 50A	500 µA	3.45 nF @ 25 V	Standard	No	-55°C ~ 150°C (TJ)	Chassis Mount
FS25R12W1T7B11BOMA1 IGBT MODULE LOW POWER EASY Infineon Technologies	3,373	-	RFQ		Tray	-	Active	-	-	-	-	-	-	-	-	-	-	-	-
FP15R12W1T7B11BOMA1 IGBT MODULE LOW POWER EASY Infineon Technologies	3,042	-	RFQ		Tray	TrenchStop™	Active	Trench Field Stop	Half Bridge Inverter	1200 V	-	-	-	-	-	Standard	No	175°C (TJ)	Chassis Mount
FS35R12W1T7B11BOMA1 IGBT MODULE LOW POWER EASY Infineon Technologies	3,295	-	RFQ		Tray	-	Active	-	-	-	-	-	-	-	-	-	-	-	-
