Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
UBT1C471MPD1TD CAP ALUM 470UF 20% 16V RADIAL Nichicon	4,487	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UBT	Active	470 µF	±20%	16 V	-	5000 Hrs @ 125°C	-40°C ~ 125°C	Polar	-	Automotive	472.5 mA @ 120 Hz	945 mA @ 100 kHz	75 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.709 (18.00mm)	-	Through Hole
25ZLH560MEFC8X20 CAP ALUM 560UF 20% 25V RADIAL Rubycon	2,453	-	RFQ	Datasheet	Bulk	ZLH	Active	560 µF	±20%	25 V	-	8000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	825 mA @ 120 Hz	1.5 A @ 100 kHz	29 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.866 (22.00mm)	-	Through Hole
ECA-1VM471 CAP ALUM 470UF 20% 35V RADIAL Panasonic Electronic Components	5,371	-	RFQ	Datasheet	Bulk	M-A	Active	470 µF	±20%	35 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	550 mA @ 120 Hz	935 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.669 (17.00mm)	-	Through Hole
EEU-FR1C152B CAP ALUM 1500UF 20% 16V RADIAL Panasonic Electronic Components	3,591	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	FR-A	Active	1500 µF	±20%	16 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.744 A @ 120 Hz	2.18 A @ 100 kHz	20 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.866 (22.00mm)	-	Through Hole
ESK108M6R3AG3AA CAP ALUM 1000UF 20% 6.3V RADIAL KEMET	13,311	-	RFQ	Datasheet	Bulk	ESK	Active	1000 µF	±20%	6.3 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	-	-	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.492 (12.50mm)	-	Through Hole
RFS-6V470ME3#5 CAP ALUM 47UF 20% 6.3V RADIAL Elna America	8,385	-	RFQ	Datasheet	Bulk	RFS, SILMIC II	Active	47 µF	±20%	6.3 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	65 mA @ 120 Hz	-	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole

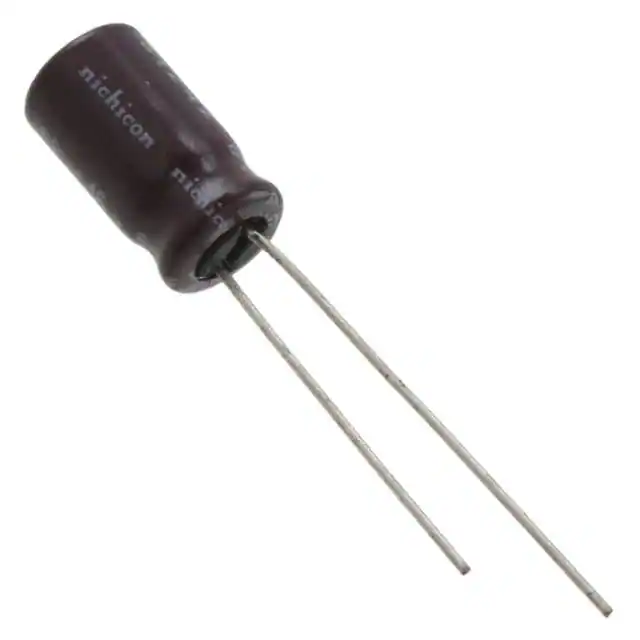

UPJ1V560MED CAP ALUM 56UF 20% 35V RADIAL Nichicon	5,067	-	RFQ	Datasheet	Bulk	UPJ	Not For New Designs	56 µF	±20%	35 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	180 mA @ 120 Hz	295 mA @ 10 kHz	450 mOhms	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.472 (12.00mm)	-	Through Hole
6.3AX220MEFC6.3X7 CAP ALUM 220UF 20% 6.3V RADIAL Rubycon	1,415	-	RFQ	Datasheet	Bulk	AX	Active	220 µF	±20%	6.3 V	-	1000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	-	-	130 mOhms	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.335 (8.50mm)	-	Through Hole
UKL1E6R8KDDANA CAP ALUM 6.8UF 10% 25V RADIAL Nichicon	1,115	-	RFQ	Datasheet	Bulk	UKL	Not For New Designs	6.8 µF	±10%	25 V	-	1000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	55 mA @ 120 Hz	110 mA @ 10 kHz	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.472 (12.00mm)	-	Through Hole
ECA-1HM331 CAP ALUM 330UF 20% 50V RADIAL Panasonic Electronic Components	10,217	-	RFQ	Datasheet	Bulk	M-A	Active	330 µF	±20%	50 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	500 mA @ 120 Hz	850 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.669 (17.00mm)	-	Through Hole
25ZL680MEFC10X20 CAP ALUM 680UF 20% 25V RADIAL Rubycon	11,979	-	RFQ	Datasheet	Bulk	ZL	Active	680 µF	±20%	25 V	-	4000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.001 A @ 120 Hz	1.82 A @ 100 kHz	23 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.866 (22.00mm)	-	Through Hole
ELXZ160ELL331MH12D CAP ALUM 330UF 20% 16V RADIAL United Chemi-Con	1,827	-	RFQ	Datasheet	Bulk	LXZ	Active	330 µF	±20%	16 V	-	3000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	277.5 mA @ 120 Hz	555 mA @ 100 kHz	120 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.531 (13.50mm)	-	Through Hole
EEU-FM1V221L CAP ALUM 220UF 20% 35V RADIAL Panasonic Electronic Components	42,516	-	RFQ	Datasheet	Bulk	FM-A	Active	220 µF	±20%	35 V	-	3000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	868 mA @ 120 Hz	1.24 A @ 100 kHz	41 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.650 (16.50mm)	-	Through Hole

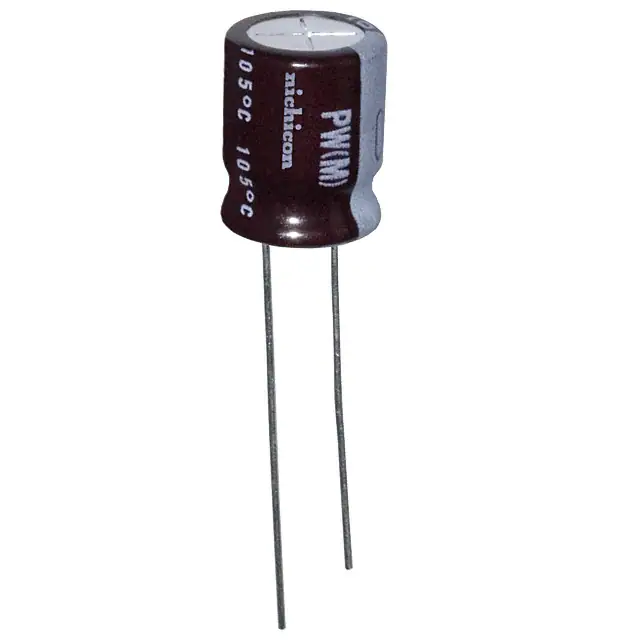

UPW2W010MPD CAP ALUM 1UF 20% 450V RADIAL Nichicon	1,093	-	RFQ	Datasheet	Bulk	UPW	Not For New Designs	1 µF	±20%	450 V	-	5000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	18 mA @ 120 Hz	28.8 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.492 (12.50mm)	-	Through Hole
EEU-EB1J470 CAP ALUM 47UF 20% 63V RADIAL Panasonic Electronic Components	5,083	-	RFQ	Datasheet	Bulk	EB-A	Active	47 µF	±20%	63 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	94 mA @ 120 Hz	122.2 mA @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.630 (16.00mm)	-	Through Hole
UHE1C102MHD6TO CAP ALUM 1000UF 20% 16V RADIAL Nichicon	5,526	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UHE	Not For New Designs	1000 µF	±20%	16 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.088 A @ 120 Hz	1.45 A @ 100 kHz	49 mOhms	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.650 (16.50mm)	-	Through Hole
50RX3033M8X11.5 CAP ALUM 33UF 20% 50V RADIAL Rubycon	1,788	-	RFQ	Datasheet	Bulk	RX30	Active	33 µF	±20%	50 V	-	2000 Hrs @ 130°C	-40°C ~ 130°C	Polar	AEC-Q200	Automotive	165 mA @ 120 Hz	300 mA @ 100 kHz	280 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole
ESW477M016AG4AA CAP ALUM 470UF 20% 16V RADIAL KEMET	13,658	-	RFQ	Datasheet	Bulk	ESW	Active	470 µF	±20%	16 V	85mOhm @ 100kHz	4000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	420 mA @ 120 Hz	840 mA @ 100 kHz	85 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.669 (17.00mm)	-	Through Hole
ESW226M100AG3AA CAP ALUM 22UF 20% 100V RADIAL KEMET	12,680	-	RFQ	Datasheet	Bulk	ESW	Active	22 µF	±20%	100 V	680mOhm @ 100kHz	4000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	92 mA @ 120 Hz	230 mA @ 100 kHz	680 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.492 (12.50mm)	-	Through Hole

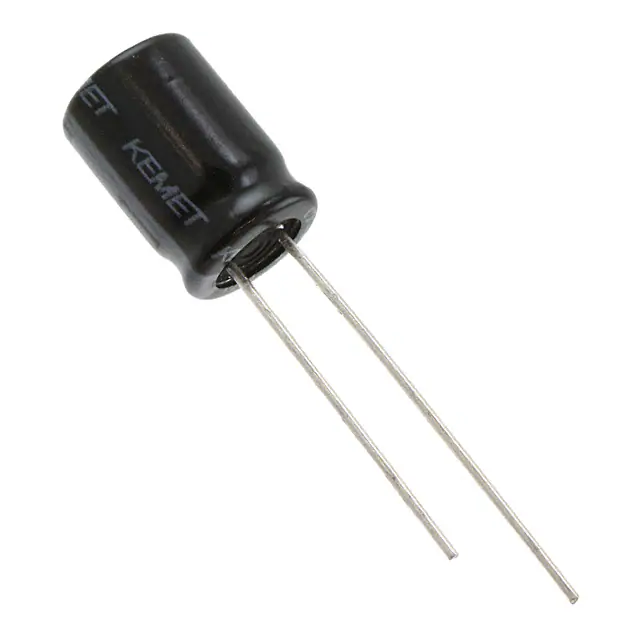

ESH107M050AG3AA CAP ALUM 100UF 20% 50V RADIAL KEMET	9,293	-	RFQ	Datasheet	Bulk	ESH	Active	100 µF	±20%	50 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	200 mA @ 120 Hz	300 mA @ 10 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.492 (12.50mm)	-	Through Hole
