Aluminum Electrolytic Capacitors- Page 93

MAX3232IDR AOZ5311NQI-03 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
ESW337M050AH4EA CAP ALUM 330UF 20% 50V RADIAL KEMET	1,873	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	ESW	Active	330 µF	±20%	50 V	58mOhm @ 100kHz	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	700 mA @ 120 Hz	1.4 A @ 100 kHz	58 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.827 (21.00mm)	-	Through Hole
25WXA470MEFC10X9 CAP ALUM 470UF 20% 25V RADIAL Rubycon	2,116	-	RFQ	Datasheet	Bulk	WXA	Active	470 µF	±20%	25 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	370 mA @ 120 Hz	444 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.413 (10.50mm)	-	Through Hole
EEU-FC1H121 CAP ALUM 120UF 20% 50V RADIAL Panasonic Electronic Components	2,773	-	RFQ	Datasheet	Bulk	FC	Active	120 µF	±20%	50 V	-	3000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	399.8 mA @ 120 Hz	615 mA @ 100 kHz	162 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.492 (12.50mm)	-	Through Hole
EEU-FM1H121L CAP ALUM 120UF 20% 50V RADIAL Panasonic Electronic Components	2,587	-	RFQ	Datasheet	Bulk	FM-A	Active	120 µF	±20%	50 V	-	3000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	798 mA @ 120 Hz	1.14 A @ 100 kHz	45 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.650 (16.50mm)	-	Through Hole
226BPS035M CAP ALUM 22UF 20% 35V RADIAL Cornell Dubilier / Illinois Capacitor	95,440	-	RFQ	Datasheet	Bulk	BPS	Active	22 µF	±20%	35 V	10.55Ohm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Bi-Polar	-	Audio	75 mA @ 120 Hz	117.75 mA @ 50 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.512 (13.00mm)	-	Through Hole
227CKS035M CAP ALUM 220UF 20% 35V RADIAL Cornell Dubilier / Illinois Capacitor	82,177	-	RFQ	Datasheet	Bulk	CKS	Active	220 µF	±20%	35 V	1.055Ohm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	405 mA @ 120 Hz	-	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole
MAL202138478E3 CAP ALUM 4.7UF 20% 63V AXIAL Vishay Beyschlag/Draloric/BC Components	13,856	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	021 ASM	Active	4.7 µF	±20%	63 V	31Ohm	2500 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	-	43.4 mA @ 10 kHz	12 Ohms	-	0.177 Dia x 0.394 L (4.50mm x 10.00mm)	-	-	Through Hole
MAL202138228E3 CAP ALUM 2.2UF 20% 63V AXIAL Vishay Beyschlag/Draloric/BC Components	6,638	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	021 ASM	Active	2.2 µF	±20%	63 V	65Ohm	2500 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	-	29.4 mA @ 10 kHz	25 Ohms	-	0.177 Dia x 0.394 L (4.50mm x 10.00mm)	-	-	Through Hole
477CKS016M CAP ALUM 470UF 20% 16V RADIAL Cornell Dubilier / Illinois Capacitor	15,793	-	RFQ	Datasheet	Bulk	CKS	Active	470 µF	±20%	16 V	564mOhm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	500 mA @ 120 Hz	825 mA @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole
EEU-FR1A101 CAP ALUM 100UF 20% 10V RADIAL Panasonic Electronic Components	8,188	-	RFQ	Datasheet	Bulk	FR-A	Active	100 µF	±20%	10 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	196 mA @ 120 Hz	280 mA @ 100 kHz	300 mOhms	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
UKT1E220MDD CAP ALUM 22UF 20% 25V RADIAL Nichicon	6,484	-	RFQ	Datasheet	Bulk	UKT	Not For New Designs	22 µF	±20%	25 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	Audio	58 mA @ 120 Hz	116 mA @ 10 kHz	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.433 (11.00mm)	-	Through Hole
63ZLJ100M8X16 CAP ALUM 100UF 20% 63V RADIAL Rubycon	7,995	-	RFQ	Datasheet	Bulk	ZLJ	Active	100 µF	±20%	63 V	-	9000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	495 mA @ 120 Hz	990 mA @ 100 kHz	130 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.689 (17.50mm)	-	Through Hole
25ZL470MEFC10X16 CAP ALUM 470UF 20% 25V RADIAL Rubycon	5,043	-	RFQ	Datasheet	Bulk	ZL	Active	470 µF	±20%	25 V	-	4000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	786.5 mA @ 120 Hz	1.43 A @ 100 kHz	38 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
100ZLJ47M8X16 CAP ALUM 47UF 20% 100V RADIAL Rubycon	2,618	-	RFQ	Datasheet	Bulk	ZLJ	Active	47 µF	±20%	100 V	-	9000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	390 mA @ 120 Hz	780 mA @ 100 kHz	200 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.689 (17.50mm)	-	Through Hole

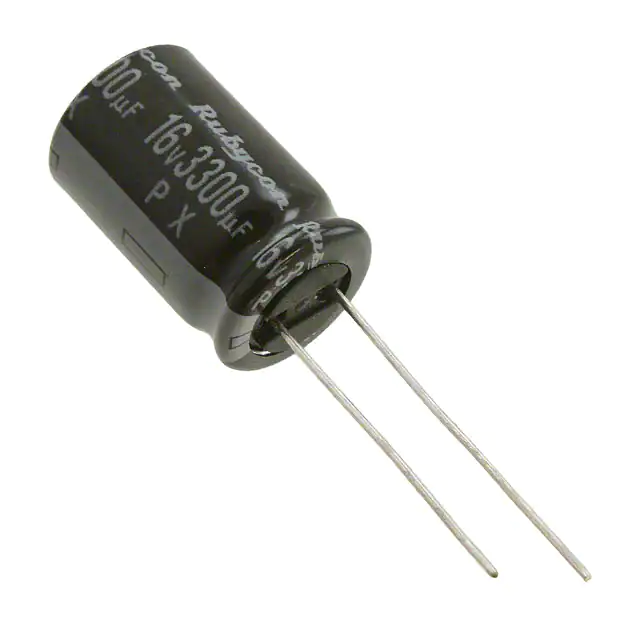

16PX3300MEFCG412.5X20 CAP ALUM 3300UF 20% 16V RADIAL Rubycon	26,374	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	PX	Active	3300 µF	±20%	16 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	1.3 A @ 120 Hz	1.495 A @ 10 kHz	-	0.197 (5.00mm)	0.492 Dia (12.50mm)	0.846 (21.50mm)	-	Through Hole
UVZ1H331MPD CAP ALUM 330UF 20% 50V RADIAL Nichicon	3,326	-	RFQ	Datasheet	Bulk	UVZ	Not For New Designs	330 µF	±20%	50 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	410 mA @ 120 Hz	-	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
16ZL680MEFC10X16 CAP ALUM 680UF 20% 16V RADIAL Rubycon	2,591	-	RFQ	Datasheet	Bulk	ZL	Active	680 µF	±20%	16 V	-	4000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	786.5 mA @ 120 Hz	1.43 A @ 100 kHz	38 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
50RX30220M10X20 CAP ALUM 220UF 20% 50V RADIAL Rubycon	1,925	-	RFQ	Datasheet	Bulk	RX30	Active	220 µF	±20%	50 V	-	2000 Hrs @ 130°C	-40°C ~ 130°C	Polar	AEC-Q200	Automotive	623 mA @ 120 Hz	890 mA @ 100 kHz	82 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.866 (22.00mm)	-	Through Hole

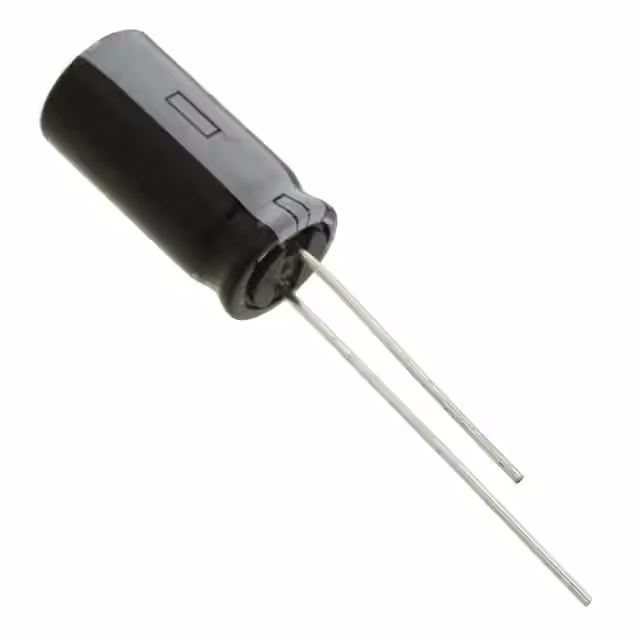

100ZLH47MEFC8X16 CAP ALUM 47UF 20% 100V RADIAL Rubycon	1,578	-	RFQ	Datasheet	Bulk	ZLH	Active	47 µF	±20%	100 V	-	8000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	292.5 mA @ 120 Hz	585 mA @ 100 kHz	250 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.689 (17.50mm)	-	Through Hole
UVR2V100MPD CAP ALUM 10UF 20% 350V RADIAL Nichicon	763	-	RFQ	Datasheet	Bulk	UVR	Not For New Designs	10 µF	±20%	350 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	115 mA @ 120 Hz	184 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.866 (22.00mm)	-	Through Hole
