Aluminum Electrolytic Capacitors- Page 92

MAX3232IDR AOZ5311NQI-03 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
UVY1E221MED CAP ALUM 220UF 20% 25V RADIAL Nichicon	7,130	-	RFQ	Datasheet	Bulk	UVY	Not For New Designs	220 µF	±20%	25 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	200 mA @ 120 Hz	300 mA @ 10 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.433 (11.00mm)	-	Through Hole
UHE1V271MPD CAP ALUM 270UF 20% 35V RADIAL Nichicon	1,353	-	RFQ	Datasheet	Bulk	UHE	Not For New Designs	270 µF	±20%	35 V	-	7000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	735 mA @ 120 Hz	1.05 A @ 100 kHz	69 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.787 (20.00mm)	-	Through Hole
UPW1H181MPD6 CAP ALUM 180UF 20% 50V RADIAL Nichicon	949	-	RFQ	Datasheet	Bulk	UPW	Not For New Designs	180 µF	±20%	50 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	552.5 mA @ 120 Hz	850 mA @ 100 kHz	119 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.630 (16.00mm)	-	Through Hole
MAL202136479E3 CAP ALUM 47UF 20% 25V AXIAL Vishay Beyschlag/Draloric/BC Components	10,707	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	021 ASM	Active	47 µF	±20%	25 V	4.8Ohm	2500 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	-	104 mA @ 10 kHz	2.6 Ohms	-	0.177 Dia x 0.394 L (4.50mm x 10.00mm)	-	-	Through Hole

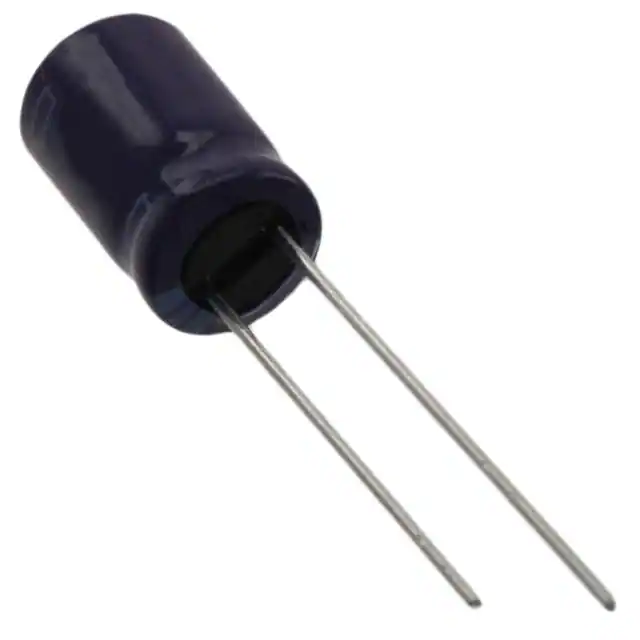

ELXZ500ELL101MH12D CAP ALUM 100UF 20% 50V RADIAL United Chemi-Con	5,183	-	RFQ	Datasheet	Bulk	LXZ	Active	100 µF	±20%	50 V	-	3000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	194 mA @ 120 Hz	485 mA @ 100 kHz	220 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.531 (13.50mm)	-	Through Hole
UCD1V221MCL6GS CAP ALUM 220UF 20% 35V SMD Nichicon	25,096	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	UCD	Not For New Designs	220 µF	±20%	35 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	300 mA @ 120 Hz	600 mA @ 100 kHz	180 mOhms	-	0.394 Dia (10.00mm)	0.323 (8.20mm)	0.406 L x 0.406 W (10.30mm x 10.30mm)	Surface Mount
UVZ1C102MPD CAP ALUM 1000UF 20% 16V RADIAL Nichicon	492	-	RFQ	Datasheet	Bulk	UVZ	Not For New Designs	1000 µF	±20%	16 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	560 mA @ 120 Hz	644 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole

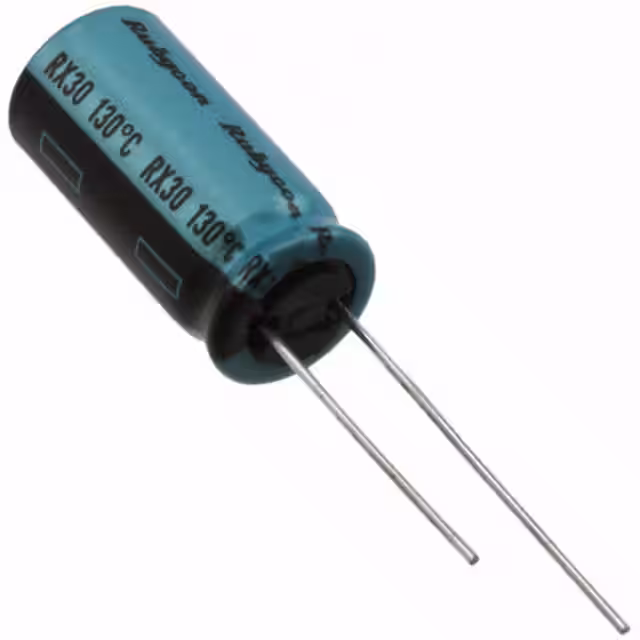

35RX30470M10X20 CAP ALUM 470UF 20% 35V RADIAL Rubycon	1,482	-	RFQ	Datasheet	Bulk	RX30	Active	470 µF	±20%	35 V	-	2000 Hrs @ 130°C	-40°C ~ 130°C	Polar	AEC-Q200	Automotive	720 mA @ 120 Hz	960 mA @ 100 kHz	73 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.866 (22.00mm)	-	Through Hole
UVR1J102MHD1TN CAP ALUM 1000UF 20% 63V RADIAL Nichicon	2,426	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UVR	Not For New Designs	1000 µF	±20%	63 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	1.3 A @ 120 Hz	1.495 A @ 10 kHz	-	0.295 (7.50mm)	0.630 Dia (16.00mm)	1.063 (27.00mm)	-	Through Hole

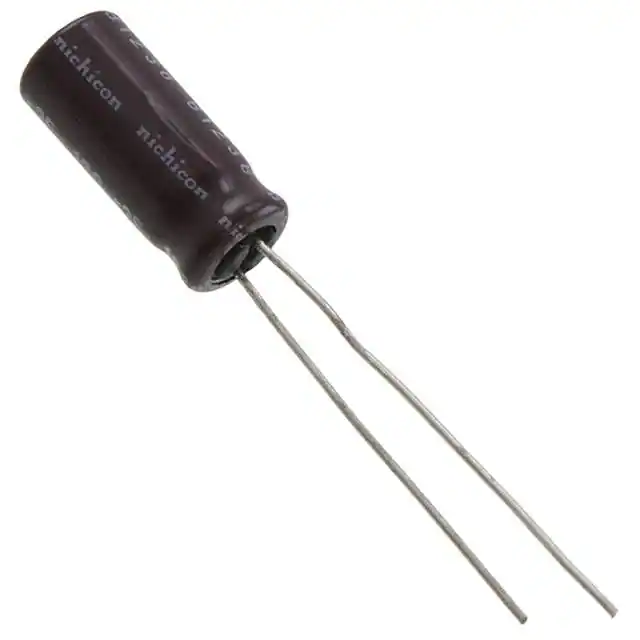

UPM1A221MED CAP ALUM 220UF 20% 10V RADIAL Nichicon	1,931	-	RFQ	Datasheet	Bulk	UPM	Not For New Designs	220 µF	±20%	10 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	270 mA @ 120 Hz	370 mA @ 10 kHz	240 mOhms	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.650 (16.50mm)	-	Through Hole
UKW1H100MDD CAP ALUM 10UF 20% 50V RADIAL Nichicon	1,788	-	RFQ	Datasheet	Bulk	UKW	Not For New Designs	10 µF	±20%	50 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	65 mA @ 120 Hz	130 mA @ 10 kHz	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.433 (11.00mm)	-	Through Hole

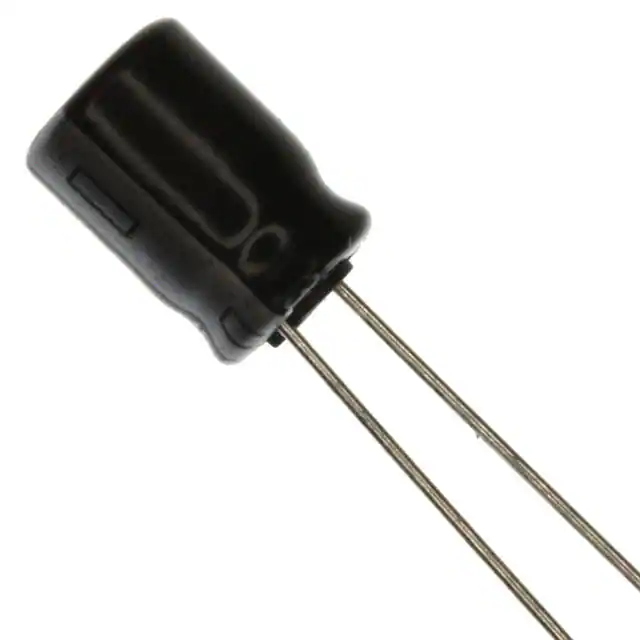

EEU-EB1J101 CAP ALUM 100UF 20% 63V RADIAL Panasonic Electronic Components	33,478	-	RFQ	Datasheet	Bulk	EB-A	Active	100 µF	±20%	63 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	180 mA @ 120 Hz	234 mA @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.650 (16.50mm)	-	Through Hole

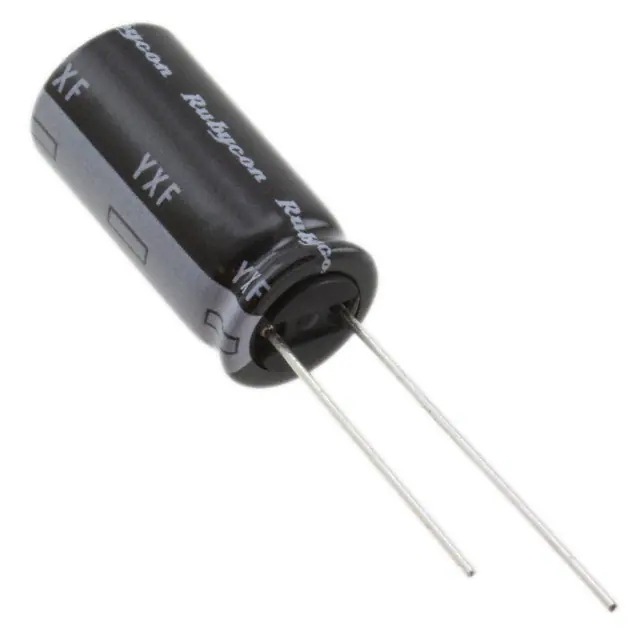

35YXF470MEFC10X20 CAP ALUM 470UF 20% 35V RADIAL Rubycon	32,017	-	RFQ	Datasheet	Bulk	YXF	Active	470 µF	±20%	35 V	-	7000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	787.5 mA @ 120 Hz	1.05 A @ 100 kHz	78 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.866 (22.00mm)	-	Through Hole
UPW2V2R2MPD CAP ALUM 2.2UF 20% 350V RADIAL Nichicon	6,599	-	RFQ	Datasheet	Bulk	UPW	Not For New Designs	2.2 µF	±20%	350 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	31 mA @ 120 Hz	-	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.630 (16.00mm)	-	Through Hole
25PX1000MEFC10X16 CAP ALUM 1000UF 20% 25V RADIAL Rubycon	17,421	-	RFQ	Datasheet	Bulk	PX	Active	1000 µF	±20%	25 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	740 mA @ 120 Hz	888 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
UPW1V331MPD6 CAP ALUM 330UF 20% 35V RADIAL Nichicon	2,354	-	RFQ	Datasheet	Bulk	UPW	Not For New Designs	330 µF	±20%	35 V	-	3000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	646.75 mA @ 120 Hz	995 mA @ 100 kHz	65 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.787 (20.00mm)	-	Through Hole

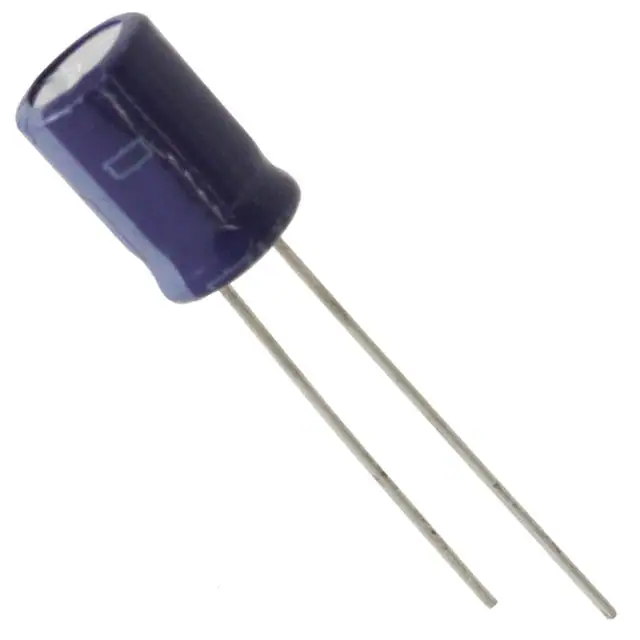

ELXY350ELL121MH12D CAP ALUM 120UF 20% 35V RADIAL United Chemi-Con	1,506	-	RFQ	Datasheet	Bulk	LXY	Active	120 µF	±20%	35 V	-	3000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	178 mA @ 120 Hz	445 mA @ 100 kHz	170 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.531 (13.50mm)	-	Through Hole
UVZ2C220MPD CAP ALUM 22UF 20% 160V RADIAL Nichicon	6,392	-	RFQ	Datasheet	Bulk	UVZ	Not For New Designs	22 µF	±20%	160 V	-	1000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	100 mA @ 120 Hz	160 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.689 (17.50mm)	-	Through Hole
100YXH47MEFC10X12.5 CAP ALUM 47UF 20% 100V RADIAL Rubycon	4,792	-	RFQ	Datasheet	Bulk	YXH	Active	47 µF	±20%	100 V	-	7000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	162.5 mA @ 120 Hz	325 mA @ 100 kHz	340 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole
EEU-FR1V561B CAP ALUM 560UF 20% 35V RADIAL Panasonic Electronic Components	1,977	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	FR-A	Active	560 µF	±20%	35 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	1.635 A @ 120 Hz	2.18 A @ 100 kHz	20 mOhms	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.866 (22.00mm)	-	Through Hole
