Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

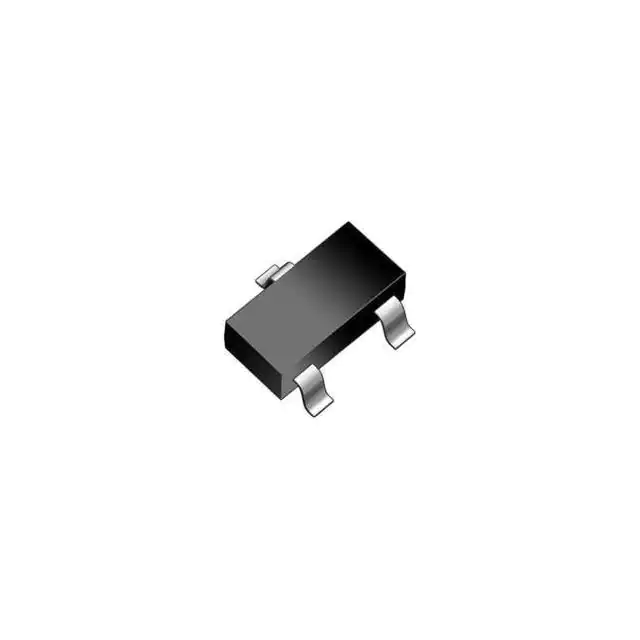

2N7002KN-CHANNEL SMALL SIGNAL MOSFET |
150 | - |
RFQ |
Tape & Reel (TR) | 2N7002K | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 340mA (Ta) | 4.5V, 10V | 5Ohm @ 500mA, 10V | 2.5V @ 1mA | - | ±20V | 40 pF @ 10 V | - | 350mW (Ta) | 150°C (TJ) | Surface Mount | ||
PMPB20EN/S500XPMPB20EN - 30V, N-CHANNEL TRENCH |
5,899 | - |
RFQ |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 7.2A (Ta) | 4.5V, 10V | 19.5mOhm @ 7A, 10V | 2V @ 250µA | 10.8 nC @ 10 V | ±20V | 435 pF @ 10 V | - | 1.7W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | ||
PBHV8115TLH215NEXPERIA PBHV8115X - SMALL SIGNA |
4,000 | - |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
MMBF4091MMBF4091 - N-CHANNEL SWITCH |
3,965 | - |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
PMPB29XNE,115MOSFET N-CH 30V 5A DFN2020MD-6 |
8,996 | - |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 5A (Ta) | 1.8V, 4.5V | 33mOhm @ 5A, 4.5V | 900mV @ 250µA | 18.6 nC @ 4.5 V | ±12V | 1150 pF @ 15 V | - | 1.7W (Ta), 12.5W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
SPW21N50C3FKSA1MOSFET N-CH 560V 21A TO247-3 |
3,949 | - |
RFQ |
Datasheet |
Bulk,Tube | CoolMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 560 V | 21A (Tc) | 10V | 190mOhm @ 13.1A, 10V | 3.9V @ 1mA | 95 nC @ 10 V | ±20V | 2400 pF @ 25 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
SPP15P10PMOSFET P-CH 100V 15A TO220-3 |
2,073 | - |
RFQ |
Datasheet |
Tube,Tube | SIPMOS® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 100 V | 15A (Tc) | 10V | 240mOhm @ 10.6A, 10V | 2.1V @ 1.54mA | 50 nC @ 10 V | ±20V | 1180 pF @ 25 V | - | 128W (Tc) | -55°C ~ 175°C (TJ) | Through Hole | |
SPP80N03S2L-06MOSFET N-CH 30V 80A TO220-3 |
2,517 | - |
RFQ |
Datasheet |
Tube,Tube | OptiMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 80A (Tc) | 4.5V, 10V | 6.2mOhm @ 80A, 10V | 2V @ 80µA | 68 nC @ 10 V | ±20V | 2530 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Through Hole | |
SPP100N03S2L-03MOSFET N-CH 30V 100A TO220-3 |
2,364 | - |
RFQ |
Datasheet |
Tube | OptiMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 100A (Tc) | 10V | 3mOhm @ 80A, 10V | 2V @ 250µA | 220 nC @ 10 V | ±20V | 8180 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Through Hole | |
SPP100N03S2-03MOSFET N-CH 30V 100A TO220-3 |
400 | - |
RFQ |
Datasheet |
Tube,Tube | OptiMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 100A (Tc) | 10V | 3.3mOhm @ 80A, 10V | 4V @ 250µA | 150 nC @ 10 V | ±20V | 7020 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Through Hole | |
IPU09N03LA GMOSFET N-CH 25V 50A TO251-3 |
2,270 | - |
RFQ |
Datasheet |
Tube | OptiMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 50A (Tc) | 4.5V, 10V | 8.8mOhm @ 30A, 10V | 2V @ 20µA | 13 nC @ 5 V | ±20V | 1642 pF @ 15 V | - | 63W (Tc) | -55°C ~ 175°C (TJ) | Through Hole | |
IPP03N03LAMOSFET N-CH 25V 80A TO220-3 |
2,257 | - |
RFQ |
Datasheet |
Tape & Box (TB) | OptiMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 80A (Tc) | 4.5V, 10V | 3mOhm @ 55A, 10V | 2V @ 100µA | 57 nC @ 5 V | ±20V | 7027 pF @ 15 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Through Hole | |
IPU06N03LAGXKMOSFET N-CH 25V 50A TO251-3 |
2,476 | - |
RFQ |
Datasheet |
Tube | OptiMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 50A (Tc) | 4.5V, 10V | 5.9mOhm @ 30A, 10V | 2V @ 40µA | 22 nC @ 5 V | ±20V | 2653 pF @ 15 V | - | 83W (Tc) | -55°C ~ 175°C (TJ) | Through Hole | |
IPU07N03LAMOSFET N-CH 25V 30A TO251-3 |
3,609 | - |
RFQ |
Datasheet |
Tube,Tube | OptiMOS™ | Discontinued at Mosen | N-Channel | MOSFET (Metal Oxide) | 25 V | 30A (Tc) | 4.5V, 10V | 6.5mOhm @ 30A, 10V | 2V @ 40µA | 22 nC @ 5 V | ±20V | 2653 pF @ 15 V | - | 83W (Tc) | -55°C ~ 175°C (TJ) | Through Hole | |
IPU13N03LA GMOSFET N-CH 25V 30A TO251-3 |
2,616 | - |
RFQ |
Datasheet |
Tube | OptiMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 30A (Tc) | 4.5V, 10V | 12.8mOhm @ 30A, 10V | 2V @ 20µA | 8.3 nC @ 5 V | ±20V | 1043 pF @ 15 V | - | 46W (Tc) | -55°C ~ 175°C (TJ) | Through Hole | |
IPP09N03LAMOSFET N-CH 25V 50A TO220-3 |
2,254 | - |
RFQ |
Datasheet |
Tube,Tube | OptiMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 50A (Tc) | 4.5V, 10V | 9.2mOhm @ 30A, 10V | 2V @ 20µA | 13 nC @ 5 V | ±20V | 1642 pF @ 15 V | - | 63W (Tc) | -55°C ~ 175°C (TJ) | Through Hole | |
IPP14N03LAMOSFET N-CH 25V 30A TO220-3 |
3,420 | - |
RFQ |
Datasheet |
Tube | OptiMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 30A (Tc) | 4.5V, 10V | 13.9mOhm @ 30A, 10V | 2V @ 20µA | 8.3 nC @ 5 V | ±20V | 1043 pF @ 15 V | - | 46W (Tc) | -55°C ~ 175°C (TJ) | Through Hole | |
IPP05N03LAMOSFET N-CH 25V 80A TO220-3 |
2,340 | - |
RFQ |
Datasheet |
Tube | OptiMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 80A (Tc) | 4.5V, 10V | 4.9mOhm @ 55A, 10V | 2V @ 50µA | 25 nC @ 5 V | ±20V | 3110 pF @ 15 V | - | 94W (Tc) | -55°C ~ 175°C (TJ) | Through Hole | |
IPP06N03LAMOSFET N-CH 25V 50A TO220-3 |
3,440 | - |
RFQ |
Datasheet |
Tube,Tube | OptiMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 50A (Tc) | 4.5V, 10V | 6.2mOhm @ 30A, 10V | 2V @ 40µA | 22 nC @ 5 V | ±20V | 2653 pF @ 15 V | - | 83W (Tc) | -55°C ~ 175°C (TJ) | Through Hole | |
SPA04N50C3XKSA1MOSFET N-CH 560V 4.5A TO220-FP |
2,178 | - |
RFQ |
Datasheet |
Tube,Tube | CoolMOS™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 560 V | 4.5A (Tc) | 10V | 950mOhm @ 2.8A, 10V | 3.9V @ 200µA | 22 nC @ 10 V | ±20V | 470 pF @ 25 V | - | 31W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
