Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
NXH80T120L2Q0P2TG IGBT MODULE 1200V 80A TNPC PIM20 onsemi	2,017	-	RFQ	Datasheet	Tray	-	Obsolete	Trench Field Stop	Three Level Inverter	-	-	-	1.75V @ 15V, 50A	250 µA	-	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
A1P35S12M3-F IGBT MOD 1200V 35A 250W ACEPACK1 STMicroelectronics	3,360	-	RFQ		Tray	-	Active	Trench Field Stop	Three Phase Inverter	1200 V	35 A	250 W	2.45V @ 15V, 35A	100 µA	2.154 nF @ 25 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
FS50R12W1T7B11BOMA1 IGBT MODULE LOW POWER EASY Infineon Technologies	2,875	-	RFQ	Datasheet	Tray	-	Active	-	-	1200 V	50 A	-	-	7.9 µA	11.1 nF @ 25 V	-	No	-40°C ~ 175°C	Chassis Mount
MUBW20-06A7 IGBT MODULE 600V 35A 125W E2 IXYS	3,343	-	RFQ	Datasheet	Box	-	Obsolete	NPT	Three Phase Inverter with Brake	600 V	35 A	125 W	2.3V @ 15V, 20A	600 µA	1.1 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 125°C (TJ)	Chassis Mount
VS-ETF150Y65N IGBT MOD 650V 201A 600W Vishay General Semiconductor - Diodes Division	3,033	-	RFQ		Box	FRED Pt®	Obsolete	NPT	Half Bridge Inverter	650 V	201 A	600 W	2.17V @ 15V, 150A	-	-	Standard	Yes	175°C (TJ)	-
FP15R12KE3GBOSA1 IGBT MOD 1200V 25A 105W Infineon Technologies	3,142	-	RFQ	Datasheet	Bulk	EconoPIM™ 2	Discontinued at Mosen	Trench Field Stop	Three Phase Inverter	1200 V	25 A	105 W	2.15V @ 15V, 15A	1 mA	1.1 nF @ 25 V	Standard	Yes	-40°C ~ 125°C	Chassis Mount
CM150DX-24S IGBT MOD 1200V 150A 1150W Powerex Inc.	3,963	-	RFQ	Datasheet	Bulk	IGBTMOD™	Obsolete	-	Half Bridge	1200 V	150 A	1150 W	2.25V @ 15V, 150A	1 mA	15 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	-
APTGL180A1202G IGBT MODULE 1200V 220A 750W SP2 Microsemi Corporation	2,232	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Half Bridge	1200 V	220 A	750 W	2.2V @ 15V, 150A	300 µA	9.3 nF @ 25 V	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount
FS50R12KE3BOSA1 IGBT MOD 1200V 75A 270W Infineon Technologies	3,454	-	RFQ	Datasheet	Bulk	-	Discontinued at Mosen	NPT	Three Phase Inverter	1200 V	75 A	270 W	2.15V @ 15V, 50A	5 mA	3.5 nF @ 25 V	Standard	Yes	150°C (TJ)	Chassis Mount
FP35R12KT4B15BOSA1 IGBT MOD 1200V 35A 210W Infineon Technologies	2,388	-	RFQ	Datasheet	Bulk	EconoPIM™ 2	Discontinued at Mosen	Trench Field Stop	Three Phase Inverter	1200 V	35 A	210 W	2.15V @ 15V, 35A	1 mA	2 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
FP40R12KT3BOSA1 IGBT MOD 1200V 55A 210W Infineon Technologies	2,766	-	RFQ	Datasheet	Bulk	-	Discontinued at Mosen	-	Three Phase Inverter	1200 V	55 A	210 W	2.3V @ 15V, 40A	5 mA	2.5 nF @ 25 V	Standard	Yes	-40°C ~ 125°C	Chassis Mount
CM100TX-24S1 IGBT MOD 1200V 100A 625W Powerex Inc.	3,133	-	RFQ	Datasheet	Tray	-	Discontinued at Mosen	-	Three Level Inverter	1200 V	100 A	625 W	2.25V @ 15V, 100A	1 mA	10 nF @ 10 V	Standard	Yes	-40°C ~ 150°C (TJ)	-

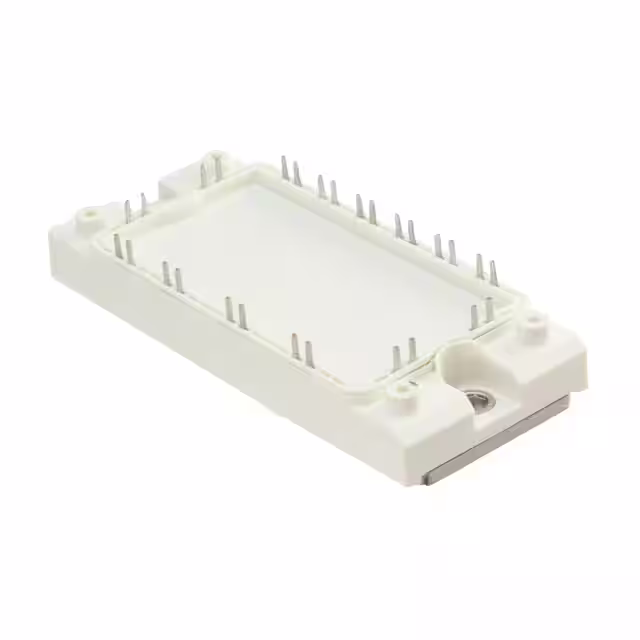

FS75R12KE3BOSA1 IGBT MOD 1200V 105A 350W Infineon Technologies	2,334	-	RFQ	Datasheet	Bulk	-	Discontinued at Mosen	NPT	Three Phase Inverter	1200 V	105 A	350 W	2.15V @ 15V, 75A	5 mA	5.3 nF @ 25 V	Standard	Yes	150°C (TJ)	Chassis Mount
MG12200D-BN2MM IGBT MODULE 1200V 290A 1050W D3 Littelfuse Inc.	2,816	-	RFQ	Datasheet	Bulk	-	Obsolete	Trench Field Stop	Half Bridge	1200 V	290 A	1050 W	1.7V @ 15V, 200A (Typ)	1 mA	14 nF @ 25 V	Standard	No	-40°C ~ 125°C (TJ)	Chassis Mount
FS75R12KT3BOSA1 IGBT MOD 1200V 105A 355W Infineon Technologies	2,857	-	RFQ	Datasheet	Tray	EconoPACK™ 2	Discontinued at Mosen	Trench Field Stop	Three Phase Inverter	1200 V	105 A	355 W	2.15V @ 15V, 75A	5 mA	5.3 nF @ 25 V	Standard	Yes	-40°C ~ 125°C	Chassis Mount
FF300R07ME4B11BOSA1 IGBT MOD 650V 390A 1100W Infineon Technologies	2,775	-	RFQ	Datasheet	Bulk	EconoDUAL™ 3	Discontinued at Mosen	Trench Field Stop	2 Independent	650 V	390 A	1100 W	1.95V @ 15V, 300A	1 mA	18.5 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
APTGT300A60TG IGBT MODULE 600V 430A 935W SP4 Microchip Technology	3,861	-	RFQ	Datasheet	Bulk	-	Active	Trench Field Stop	Half Bridge	600 V	430 A	935 W	1.9V @ 15V, 300A	350 µA	18.4 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
FP75R12N2T4BOSA1 IGBT MODULE LOW POWER ECONO Infineon Technologies	3,992	-	RFQ		Tray	EconoPIM™ 2	Discontinued at Mosen	-	-	-	-	-	-	-	-	-	-	-	-
F423MR12W1M1PB11BPSA1 MOSFET MODULE 1200V 4PACK Infineon Technologies	2,531	-	RFQ	Datasheet	Tray	EasyPACK™	Last Time Buy	Trench	Full Bridge	1200 V	50 A	20 mW	-	-	3.68 nF @ 800 V	Standard	Yes	-40°C ~ 150°C (TJ)	Chassis Mount

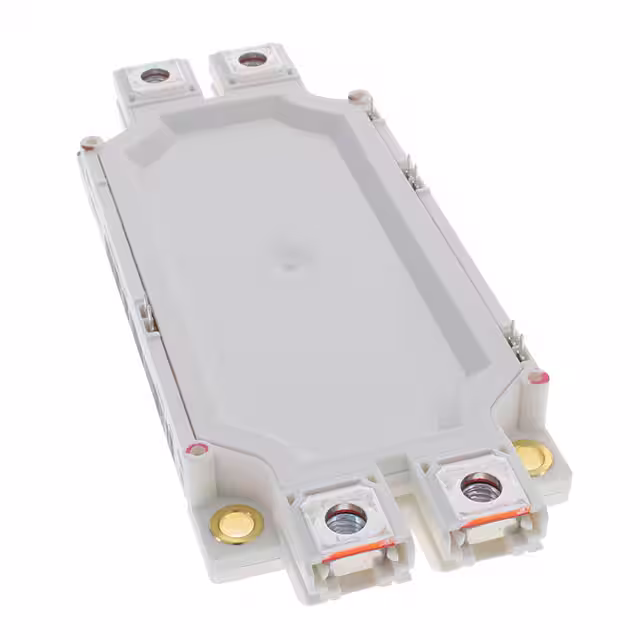

FF450R12ME4B11BPSA1 IGBT MOD 1200V 675A 2250W Infineon Technologies	2,540	-	RFQ	Datasheet	Bulk	EconoDUAL™ 3	Discontinued at Mosen	Trench Field Stop	2 Independent	1200 V	675 A	2250 W	2.1V @ 15V, 450A	3 mA	28 nF @ 25 V	Standard	Yes	-40°C ~ 150°C	Chassis Mount
