Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FZ600R12KS4HOSA1IGBT MOD 1200V 700A 3900W |
2,226 | - |
RFQ |
Datasheet |
Tray | C | Active | - | Single | 1200 V | 700 A | 3900 W | 3.75V @ 15V, 600A | 5 mA | 39 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | |

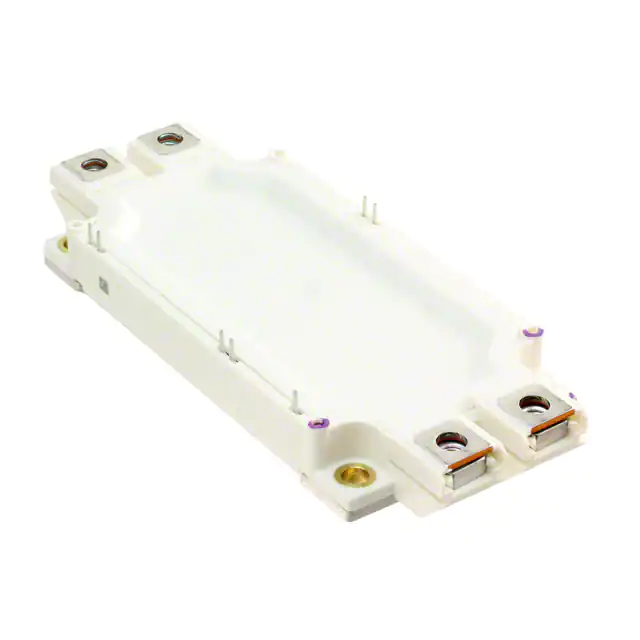

FF450R12ME4BOSA1IGBT MOD 1200V 675A 2250W |
3,804 | - |
RFQ |
Datasheet |
Bulk,Tray | - | Active | Trench Field Stop | Half Bridge | 1200 V | 675 A | 2250 W | 2.1V @ 15V, 450A | 3 mA | 28 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |

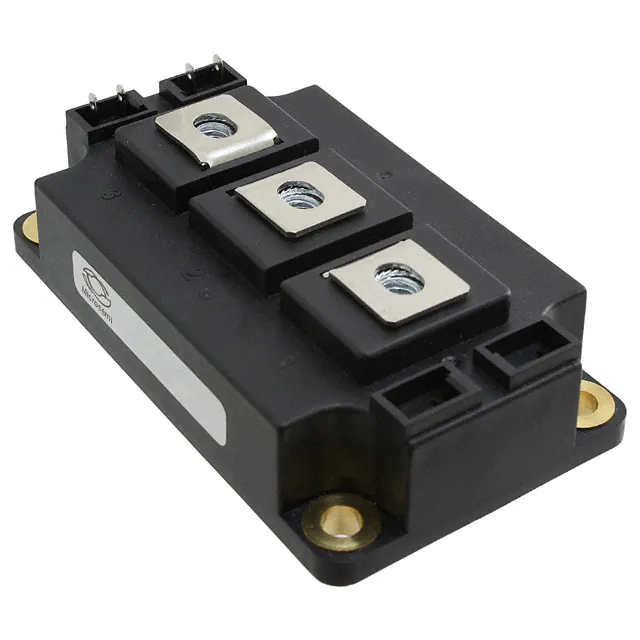

APTGT400A60D3GIGBT MODULE 600V 500A 1250W D3 |
2,138 | - |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Half Bridge | 600 V | 500 A | 1250 W | 1.9V @ 15V, 400A | 500 µA | 24 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount | |
NXH40T120L3Q1PGIGBT MOD 3TNPC Q1PACK 1200V/40 |
2,340 | - |
RFQ |
Datasheet |
Tray | - | Active | - | Three Phase | - | - | - | 2.2V @ 15V, 40A | 400 µA | - | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | |
FF400R17KE4EHOSA1IGBT MODULE 1700V 400A |
2,289 | - |
RFQ |
Datasheet |
Tray | C | Active | Trench Field Stop | Half Bridge | 1700 V | 400 A | - | 2.3V @ 15V, 400A | 1 mA | 36 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | |
IXGN400N60B3IGBT MOD 600V 430A 1000W SOT227B |
2,424 | - |
RFQ |
Datasheet |
Tube | GenX3™ | Active | PT | Single | 600 V | 430 A | 1000 W | 1.4V @ 15V, 100A | 100 µA | 31 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | |
FF500R17KE4BOSA1IGBT MODULE 1700V 500A |
3,255 | - |
RFQ |
Datasheet |
Tray | C | Active | Trench Field Stop | Half Bridge Inverter | 1700 V | 500 A | - | 2.3V @ 15V, 500A | 1 mA | 45 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | |
FS300R12OE4BOSA1IGBT MOD 1200V 460A 1650W |
3,003 | - |
RFQ |
Datasheet |
Tray | - | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 460 A | 1650 W | 2.1V @ 15V, 300A | 3 mA | 18.5 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |
FF1200R12IE5PBPSA1IGBT MOD 1200V 2400A 20MW |
2,595 | - |
RFQ |
Datasheet |
Tray | PrimePACK™2 | Active | Trench Field Stop | Half Bridge | 1200 V | 2400 A | 20 mW | 2.15V @ 15V, 1200A | 5 mA | 65.5 nF @ 25 V | Standard | Yes | -40°C ~ 175°C | Chassis Mount | |
FZ3600R17HP4B2BOSA2IGBT MODULE 1700V 3600A |
2,558 | - |
RFQ |
Datasheet |
Tray | - | Active | Trench Field Stop | Single Switch | 1700 V | 3600 A | 4900000 W | 2.25V @ 15V, 3.6kA | 5 mA | 295 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
FZ1500R33HL3BPSA1IGBT MODULE 3300V 1500A |
3,005 | - |
RFQ |
Datasheet |
Tray | - | Active | Trench Field Stop | Full Bridge | 3300 V | 1500 A | 17000 W | 2.85V @ 15V, 1500A | 5 mA | 6 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | |
F3L100R07W2E3B11BOMA1IGBT MOD 650V 117A 300W |
2,389 | - |
RFQ |
Datasheet |
Tray | - | Active | Trench Field Stop | Three Phase Inverter | 650 V | 117 A | 300 W | 1.9V @ 15V, 100A | 1 mA | 6.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | |
F3L100R12W2H3B11BPSA1IGBT MOD 1200V 100A 375W |
3,251 | - |
RFQ |
Datasheet |
Tray | EasyPACK™ | Active | - | Three Phase Inverter | 1200 V | 100 A | 375 W | 1.75V @ 15V, 50A | 1 mA | 6.15 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | |
FS3L30R07W2H3FB11BPSA2IGBT MOD 650V 30A 20MW |
3,701 | - |
RFQ |
Datasheet |
Bulk,Tray | EasyPACK™ | Active | Trench Field Stop | Three Phase Inverter | 650 V | 30 A | 20 mW | 1.9V @ 15V, 30A | 1 mA | 1.65 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |
FF100R12KS4HOSA1IGBT MOD 1200V 150A 780W |
3,246 | - |
RFQ |
Datasheet |
Tray | C | Active | - | 2 Independent | 1200 V | 150 A | 780 W | 3.7V @ 15V, 100A | 5 mA | 650 nF @ 25 V | Standard | No | -40°C ~ 125°C | Chassis Mount | |
FP50R12KT4GBOSA1IGBT MOD 1200V 50A 280W |
3,350 | - |
RFQ |
Datasheet |
Tray | EconoPIM™ 3 | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 50 A | 280 W | 2.15V @ 15V, 50A | 1 mA | 2.8 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount | |
FF300R06KE3HOSA1IGBT MOD 600V 400A 940W |
2,475 | - |
RFQ |
Datasheet |
Tray | C | Active | Trench Field Stop | 2 Independent | 600 V | 400 A | 940 W | 1.9V @ 15V, 300A | 5 mA | 19 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | |
FF200R17KE4HOSA1IGBT MOD 1700V 310A 1250W |
2,639 | - |
RFQ |
Datasheet |
Tray | C | Active | Trench Field Stop | 2 Independent | 1700 V | 310 A | 1250 W | 2.3V @ 15V, 200A | 1 mA | 18 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | |
FF400R07KE4HOSA1IGBT MODULE 650V 1250W |
3,771 | - |
RFQ |
Datasheet |
Tray | C | Active | Trench Field Stop | 2 Independent | 650 V | - | 1250 W | 1.95V @ 15V, 400A | 5 mA | 26 nF @ 25 V | Standard | No | -40°C ~ 150°C | Chassis Mount | |
FP100R06KE3BOSA1IGBT MOD 600V 100A 335W |
2,935 | - |
RFQ |
Datasheet |
Tray | EconoPIM™ 3 | Active | Trench Field Stop | Three Phase Inverter | 600 V | 100 A | 335 W | 1.9V @ 15V, 100A | 1 mA | 6.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C | Chassis Mount |
