Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
DDB6U25N16VRBOMA1IGBT MODULE |
2,667 | - |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
FS10R06VL4_B2IGBT MODULE |
2,324 | - |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
FMS6G10US60IGBT, 10A, 600V, N-CHANNEL |
3,260 | - |
RFQ |
Datasheet |
Box | - | Obsolete | - | Three Phase Inverter | 600 V | 10 A | 66 W | 2.7V @ 15V, 10A | 250 µA | 710 pF @ 30 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 150°C (TJ) | Chassis Mount | |
DDB6U50N16W1RBPSA1LOW POWER EASY |
3,365 | - |
RFQ |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | ||
DDB6U50N16W1RPB11BPSA1LOW POWER EASY |
2,823 | - |
RFQ |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | ||
BSM20GD60DLCE3224IGBT MODULE |
3,509 | - |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
FMG2G200US60IGBT, 200A, 600V, N-CHANNEL |
2,018 | - |
RFQ |
Box | - | Obsolete | - | Half Bridge | 600 V | 200 A | 695 W | 2.7V @ 15V, 200A | 250 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | ||
DDB6U50N16W1RPBPSA1LOW POWER EASY AG-EASY1B-711 |
3,624 | - |
RFQ |
Tray | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | ||
VS-GT55NA120UXSOT-227 - HIGH SIDE CHOPPER IGBT |
2,064 | - |
RFQ |
Datasheet |
Tube | - | Active | Trench Field Stop | Single Chopper | 1200 V | 68 A | 291 W | 2.8V @ 15V, 50A | 50 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
VS-GT55LA120UXSOT-227 - LOW SIDE CHOPPER IGBT |
3,449 | - |
RFQ |
Datasheet |
Tube | - | Active | Trench Field Stop | Single Chopper | 1200 V | 68 A | 291 W | 2.8V @ 15V, 50A | 50 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
BSM25GB120DN2IGBT MODULE |
3,803 | - |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
FB20R06YE3B1BOMA1IGBT MODULE |
3,585 | - |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
VS-GT90DA120USOT-227 - SINGLE SWITCH IGBT + A |
3,054 | - |
RFQ |
Datasheet |
Tube | - | Active | Trench Field Stop | Single | 1200 V | 169 A | 781 W | 2.6V @ 15V, 75A | 100 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |

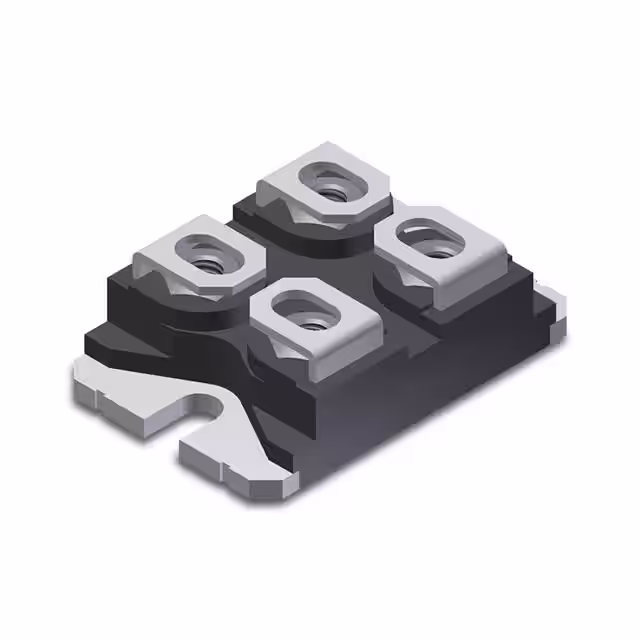

IXYN110N120C4IGBT 1200V 110A GEN4 XPT SOT227B |
2,923 | - |
RFQ |
Datasheet |
Tube | XPT™ | Active | - | Single | 1200 V | 220 A | 830 W | 2.4V @ 15V, 110A | 50 µA | 5.42 nF @ 25 V | Standard | No | -55°C ~ 175°C (TJ) | Chassis Mount | |
IXYN80N90C3H1IGBT MOD 900V 115A 500W SOT227B |
2,631 | - |
RFQ |
Datasheet |
Tube | XPT™, GenX3™ | Active | - | Single | 900 V | 115 A | 500 W | 2.7V @ 15V, 80A | 25 µA | 4.55 nF @ 25 V | Standard | No | -55°C ~ 150°C (TJ) | Chassis Mount | |
VS-ENV020F65UPOWER MODULE |
3,725 | - |
RFQ |
Datasheet |
Box | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
FP10R12W1T7PB11BPSA1LOW POWER EASY AG-EASY1B-2 |
3,453 | - |
RFQ |
Datasheet |
Tray | EasyPIM™ | Active | Trench Field Stop | Three Phase Inverter | 1200 V | 10 A | 20 mW | - | 4.5 µA | 1890 pF @ 25 V | Three Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount | |
VS-ENV020M120MPOWER MODULE |
2,040 | - |
RFQ |
Datasheet |
Box | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
FMG2G300US60IGBT, 300A, 600V, N-CHANNEL |
2,494 | - |
RFQ |
Datasheet |
Bulk | - | Obsolete | - | Half Bridge | 600 V | 300 A | 892 W | 2.7V @ 15V, 300A | 250 µA | - | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount | |
900545HOSA1IGBT MODULE |
2,226 | - |
RFQ |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - |
