Transistors - IGBTs - Modules- Page 38

MAX3232IDR AOZ5311NQI-03 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
NXH40B120MNQ0SNG 80KW GENII 1200V 80MOHM SIC MOSF onsemi	3,916	-	RFQ		Tray	-	Active	-	Dual Boost Chopper	-	-	118 W	-	-	3.227 nF @ 20 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
FMG1G300US60HE IGBT, 300A, 600V, N-CHANNEL Fairchild Semiconductor	2,245	-	RFQ	Datasheet	Bulk	-	Active	-	Single	600 V	300 A	892 W	2.7V @ 15V, 300A	250 µA	-	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount

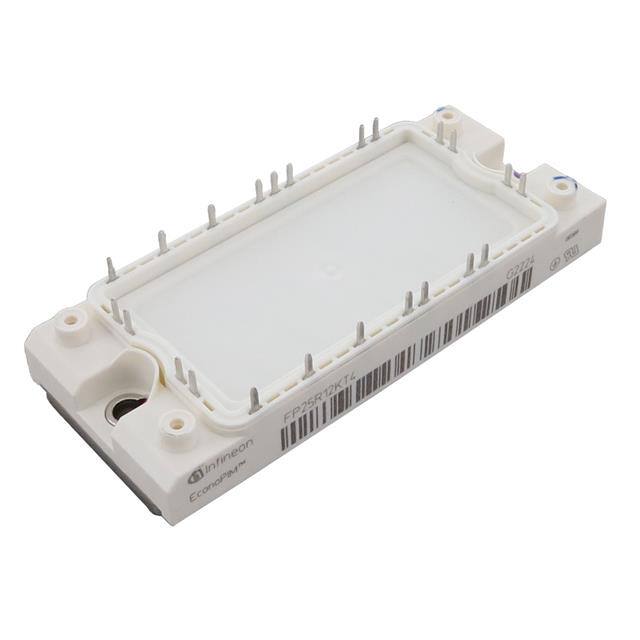

FP25R12KT4BPSA1 LOW POWER ECONO AG-ECONO2B-411 Infineon Technologies	3,749	-	RFQ	Datasheet	Tray	EconoPIM™ 2	Active	Trench Field Stop	Three Phase Inverter	1200 V	25 A	160 W	2.15V @ 15V, 25A	1 mA	1.45 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
F3L200R07W2S5B11BOMA1 LOW POWER EASY AG-EASY2B-2 Infineon Technologies	150	-	RFQ		Bulk,Tray	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
VS-ENK025C65S POWER MODULE Vishay General Semiconductor - Diodes Division	2,623	-	RFQ	Datasheet	Box	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
FS75R12W2T7BPSA1 LOW POWER EASY AG-EASY2B-711 Infineon Technologies	2,844	-	RFQ	Datasheet	Tray	EasyPACK™, TRENCHSTOP™	Active	Trench Field Stop	Three Phase Inverter	1200 V	65 A	20 mW	-	13 µA	15.1 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
FP35R12N2T7BPSA1 LOW POWER ECONO AG-ECONO2B-711 Infineon Technologies	2,999	-	RFQ	Datasheet	Tray	EconoPIM™ 2	Active	Trench Field Stop	Three Phase Inverter	1200 V	35 A	20 mW	1.6V @ 15V, 35A	7 µA	6.62 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
FS35R12KT3BPSA1 LOW POWER ECONO AG-ECONO2B-311 Infineon Technologies	3,746	-	RFQ	Datasheet	Tray	EconoPACK™ 2	Active	Trench Field Stop	Full Bridge Inverter	1200 V	55 A	210 W	2.15V @ 15V, 35A	5 mA	2.5 nF @ 25 V	Standard	Yes	-40°C ~ 125°C (TJ)	Chassis Mount
NXH100B120H3Q0PTG IGBT MODULE 1200V 50A 186W 22PIM onsemi	3,735	-	RFQ	Datasheet	Tray	-	Active	Trench Field Stop	2 Independent	1200 V	50 A	186 W	2.3V @ 15V, 50A	200 µA	9.075 nF @ 20 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
FP50R12W2T7PB11BPSA1 LOW POWER EASY AG-EASY2B-2 Infineon Technologies	3,435	-	RFQ		Tray	EasyPIM™	Active	Trench Field Stop	Three Phase Inverter	1200 V	50 A	20 mW	-	8 µA	11.1 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 175°C (TJ)	Chassis Mount

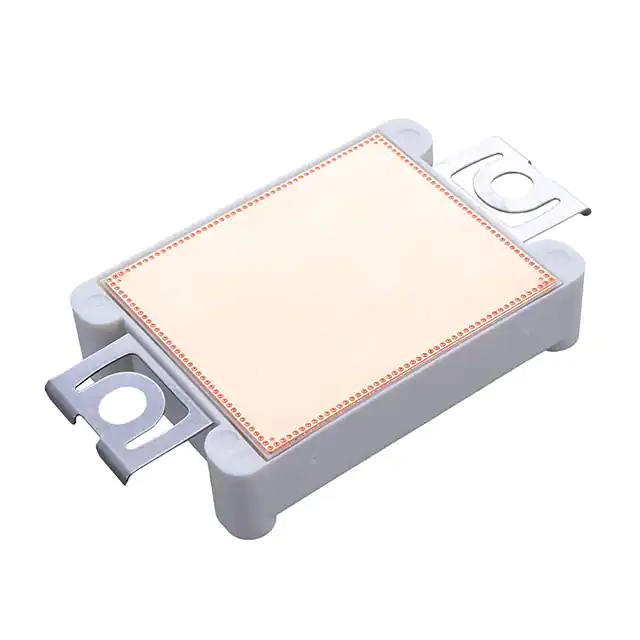

FS55MR12W1M1HB11NPSA1 LOW POWER EASY AG-EASY1B-3111 Infineon Technologies	3,971	-	RFQ		Tray	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
DDB6U134N16RRBPSA1 LOW POWER ECONO AG-ECONO2B-211 Infineon Technologies	3,551	-	RFQ	Datasheet	Tray	-	Active	-	Single Chopper	1200 V	70 A	500 W	2.75V @ 15V, 70A	500 µA	5.1 nF @ 25 V	Standard	Yes	150°C (TJ)	Chassis Mount
FP35R12KT4BPSA1 LOW POWER ECONO Infineon Technologies	3,842	-	RFQ		Tray	EconoPIM™ 2	Active	Trench Field Stop	Three Phase Inverter	1200 V	25 A	210 W	2.25V @ 15V, 35A	1 mA	2 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
MIXA60WB1200TEH IGBT MODULE 1200V 85A 290W E3 IXYS	2,557	-	RFQ	Datasheet	Box	-	Active	PT	Three Phase Inverter with Brake	1200 V	85 A	290 W	2.1V @ 15V, 55A	500 µA	-	Three Phase Bridge Rectifier	Yes	-40°C ~ 125°C (TJ)	Chassis Mount
MSCGLQ100A65TG PM-IGBT-SP4 Microchip Technology	3,257	-	RFQ		Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
FP35R12KT4B11BPSA1 LOW POWER ECONO AG-ECONO2B-711 Infineon Technologies	2,617	-	RFQ	Datasheet	Tray	EconoPIM™ 2	Active	Trench Field Stop	Three Phase Inverter	1200 V	35 A	210 W	2.15V @ 15V, 35A	1 mA	2 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Chassis Mount
MSCGLQ200A65TG PM-IGBT-SP4 Microchip Technology	3,311	-	RFQ		Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
FP50R12N2T7BPSA1 LOW POWER ECONO AG-ECONO2B-711 Infineon Technologies	2,707	-	RFQ	Datasheet	Tray	EconoPIM™ 2	Active	Trench Field Stop	Three Phase Inverter	1200 V	50 A	20 mW	1.5V @ 15V, 50A	10 µA	11.1 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
FMG2G300LS60E IGBT, 300A, 600V, N-CHANNEL Fairchild Semiconductor	3,601	-	RFQ	Datasheet	Bulk	-	Active	-	Half Bridge	600 V	300 A	892 W	1.8V @ 15V, 300A	250 µA	-	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
FP40R12KE3BPSA1 LOW POWER ECONO AG-ECONO2C-311 Infineon Technologies	3,885	-	RFQ	Datasheet	Tray	SmartPIM1	Active	Trench Field Stop	Three Phase Inverter	1200 V	55 A	210 W	2.15V @ 15V, 40A	1 mA	2.5 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 125°C (TJ)	Chassis Mount
