Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	IGBTType	Configuration	Voltage-CollectorEmitterBreakdown(Max)	Current-Collector(Ic)(Max)	Power-Max	Vce(on)(Max)@VgeIc	Current-CollectorCutoff(Max)	InputCapacitance(Cies)@Vce	Input	NTCThermistor	OperatingTemperature	MountingType
FMG1G150US60H IGBT, 150A, 600V, N-CHANNEL Fairchild Semiconductor	2,213	-	RFQ	Datasheet	Bulk	-	Active	-	Single	600 V	150 A	595 W	2.7V @ 15V, 150A	250 µA	-	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
FMG1G150US60L IGBT, 150A, 600V, N-CHANNEL Fairchild Semiconductor	2,441	-	RFQ	Datasheet	Bulk	-	Active	-	Single	600 V	150 A	595 W	2.7V @ 15V, 150A	250 µA	-	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
MID100-12A3 IGBT MODULE 1200V 135A 560W Y4M5 IXYS	2,110	-	RFQ	Datasheet	Box	-	Active	NPT	Single	1200 V	135 A	560 W	2.7V @ 15V, 75A	5 mA	5.5 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
F3L75R12W1H3BPSA1 LOW POWER EASY AG-EASY1B-311 Infineon Technologies	3,070	-	RFQ		Tray	-	Active	-	-	-	-	-	-	-	-	-	-	-	-
BSM50GP60B2BOSA1 IGBT MODULE Infineon Technologies	3,914	-	RFQ		Bulk	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
NXH80B120MNQ0SNG PIM POWER MODULE onsemi	3,019	-	RFQ	Datasheet	Tray	-	Active	-	Dual Boost Chopper	-	-	69 W	-	-	-	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
VS-ENY050C60 POWER MODULE Vishay General Semiconductor - Diodes Division	3,024	-	RFQ	Datasheet	Box	*	Active	-	-	-	-	-	-	-	-	-	-	-	-

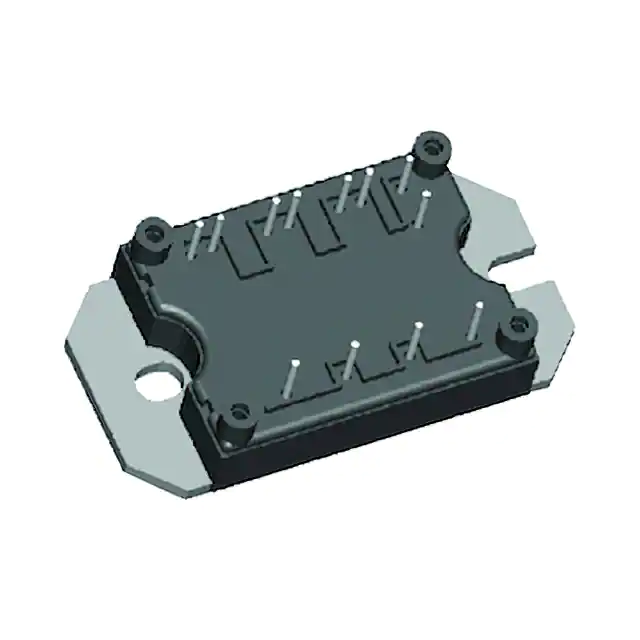

VS-40MT120PHAPBF MTP - HALF BRIDGE IGBT Vishay General Semiconductor - Diodes Division	3,885	-	RFQ	Datasheet	Tube	-	Active	Trench Field Stop	Half Bridge	1200 V	75 A	305 W	2.65V @ 15V, 40A	50 µA	3.2 nF @ 25 V	Standard	No	-40°C ~ 150°C (TJ)	Through Hole
FMG1G200US60H IGBT, 200A, 600V, N-CHANNEL Fairchild Semiconductor	3,004	-	RFQ	Datasheet	Bulk	-	Active	-	Single	600 V	200 A	695 W	2.7V @ 15V, 200A	250 µA	-	Standard	No	-40°C ~ 150°C (TJ)	Chassis Mount
VS-GT140DA60U IGBT MOD 600V 200A 652W SOT227 Vishay General Semiconductor - Diodes Division	160	-	RFQ	Datasheet	Bulk	-	Active	Trench	Single	600 V	200 A	652 W	2V @ 15V, 100A	100 µA	-	Standard	No	-40°C ~ 175°C (TJ)	Chassis Mount
FS50R12W1T7BOMA1 LOW POWER EASY AG-EASY1B-1 Infineon Technologies	2,994	-	RFQ	Datasheet	Tray	EasyPACK™	Active	Trench Field Stop	Three Phase Inverter	1200 V	50 A	20 mW	-	7.9 µA	11.1 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
MIXA40W1200TED IGBT MODULE 1200V 60A 195W E2 IXYS	2,794	-	RFQ	Datasheet	Box	-	Active	PT	Three Phase Inverter with Brake	1200 V	60 A	195 W	2.1V @ 15V, 35A	2.1 mA	-	Standard	Yes	-40°C ~ 125°C (TJ)	Chassis Mount
FS50R12W1T7PB11BPSA1 LOW POWER EASY AG-EASY1B-711 Infineon Technologies	2,369	-	RFQ		Tray	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
FP35R12W2T7BPSA1 LOW POWER EASY AG-EASY2B-711 Infineon Technologies	2,190	-	RFQ	Datasheet	Tray	EasyPIM™	Active	Trench Field Stop	Three Phase Inverter	1200 V	35 A	20 mW	-	5.8 µA	6.62 nF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
NXH50M65L4C2SG 650V 50A CONVERTER-INVERTER-PFCS onsemi	3,844	-	RFQ	Datasheet	Tube	-	Active	-	Three Phase Inverter	650 V	50 A	20 mW	2.2V @ 15V, 75A	250 µA	4.877 nF @ 20 V	Single Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Through Hole
FS50R12W2T7BPSA1 LOW POWER EASY AG-EASY2B-711 Infineon Technologies	2,649	-	RFQ	Datasheet	Tray	EasyPACK™, TRENCHSTOP™	Active	Trench Field Stop	Three Phase Inverter	1200 V	50 A	20 mW	-	7.9 µA	11.1 nF @ 25 V	Standard	Yes	-40°C ~ 175°C (TJ)	Chassis Mount
VS-ENM040M60P POWER MODULE Vishay General Semiconductor - Diodes Division	2,999	-	RFQ	Datasheet	Box	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
VS-ENZ025C60N POWER MODULE Vishay General Semiconductor - Diodes Division	3,924	-	RFQ	Datasheet	Box	*	Active	-	-	-	-	-	-	-	-	-	-	-	-
MUBW10-12A7 IGBT MODULE 1200V 20A 105W E2 IXYS	3,711	-	RFQ	Datasheet	Bulk	-	Active	NPT	Three Phase Inverter with Brake	1200 V	20 A	105 W	2.7V @ 15V, 10A	600 µA	600 pF @ 25 V	Three Phase Bridge Rectifier	Yes	-40°C ~ 125°C (TJ)	Chassis Mount
NXH50M65L4C2ESG 650V 50A CONVERTER-INVERTER-PFCS onsemi	2,610	-	RFQ	Datasheet	Tube	-	Active	-	Three Phase Inverter	650 V	50 A	20 mW	2.2V @ 15V, 75A	250 µA	2.608 nF @ 20 V	Single Phase Bridge Rectifier	Yes	-40°C ~ 150°C (TJ)	Through Hole
