Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Function	Type	Inductance	Tolerance	DCResistance(DCR)	Q@Freq	CurrentRating(Amps)	Current-Saturation(Isat)	Frequency-SelfResonant	OperatingTemperature

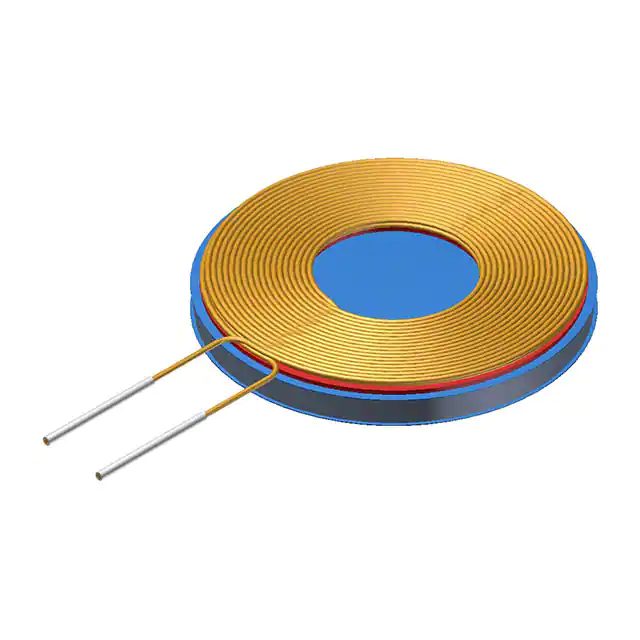

WR111180-36F5-B1 RX 1 COIL 2 LYR 16.6UH TDK Corporation	168	-	RFQ	Datasheet	Tray	WR	Active	Receiver	1 Coil, 2 Layer	16.6µH	-	1Ohm	-	-	-	-	-
760308103204 RX 1 COIL 1 LAYER 16.7UH 1A Würth Elektronik	299	-	RFQ	Datasheet	Tray	WE-WPCC	Active	Receiver	1 Coil, 1 Layer	16.7µH	±10%	430mOhm	32 @ 125kHz	1A	4A	11MHz	-20°C ~ 105°C
WT242490-30F2-G TX 1 COIL 2 LYR 12.9UH TDK Corporation	3,948	-	RFQ	Datasheet	Tray	WT	Active	Transmitter	1 Coil, 2 Layer	12.9µH	±10%	165mOhm	-	-	-	-	-
WTSC-6R3K-A11B SINGLE-COIL WIRELESS CHARGING CO Signal Transformer	3,534	-	RFQ	Datasheet	Box	WCC	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	40mOhm Max	-	6A	10A	-	-20°C ~ 85°C
760308101219 RX 1 COIL 1 LAYER 11.8UH 700MA Würth Elektronik	226	-	RFQ	Datasheet	Box	WE-WPCC	Active	Receiver	1 Coil, 1 Layer	11.8µH	±10%	750mOhm Max	13 @ 125kHz	700mA	1.5A	22MHz	-20°C ~ 105°C
760308201 RX 1 COIL 1 LAYER 10UH 4.5A Würth Elektronik	218	-	RFQ	Datasheet	Tray	WE-WPCC	Active	Receiver	1 Coil, 1 Layer	10µH	±5%	200mOhm Max	50 @ 125kHz	3.5A	8A	15MHz	-20°C ~ 105°C
760308105309 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	114	-	RFQ		Tray	WE-WPCC	Active	Receiver	1 Coil, 1 Layer	10.5µH	±10%	450mOhm	19 @ 125kHz	1.5A	3A	18.5MHz	-20°C ~ 105°C
760308101208 RX 1 COIL 3 LAYER 13UH 0.8A Würth Elektronik	556	-	RFQ	Datasheet	Box	WE-WPCC	Active	Receiver	1 Coil, 3 Layer	13µH	±10%	400mOhm	17 @ 125kHz	0.8A	2A	26MHz	-20°C ~ 105°C
760308103206 RX 1 COIL 1 LAYER 7.5UH 1.55A Würth Elektronik	260	-	RFQ	Datasheet	Box	WE-WPCC	Active	Receiver	1 Coil, 1 Layer	7.5µH	±10%	340mOhm	16 @ 125kHz	1.55A	3A	23MHz	-20°C ~ 105°C

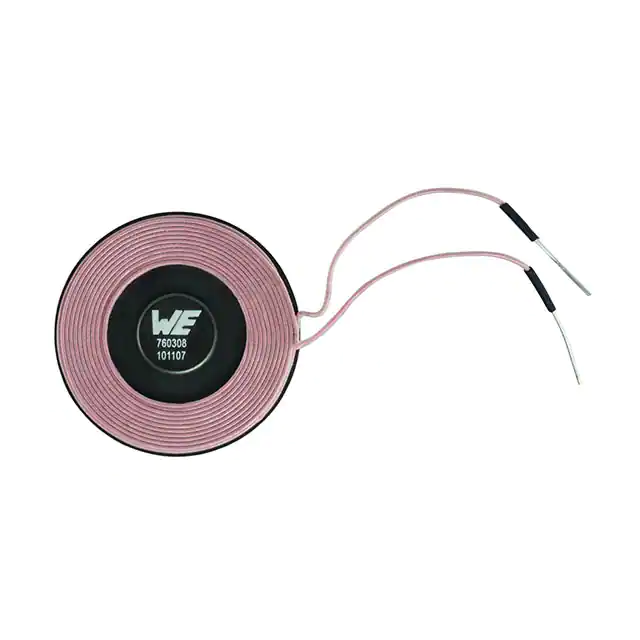

760308101107 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	115	-	RFQ		Tray	WE-WPCC	Active	Transmitter	1 Coil, 1 Layer	24µH	±10%	315mOhm	55 @ 125kHz	2A	8A	7.5MHz	-20°C ~ 105°C

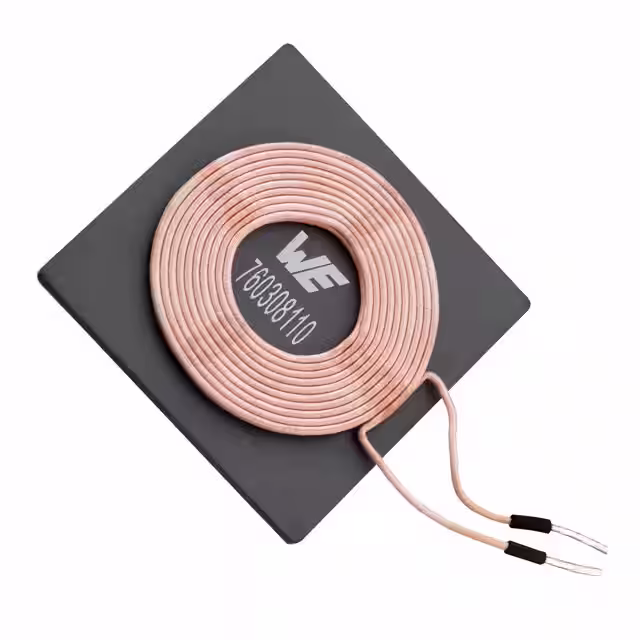

760308110 TX 1 COIL 2 LAYER 24UH 6A Würth Elektronik	108	-	RFQ	Datasheet	Bulk	WE-WPCC	Active	Transmitter	1 Coil, 2 Layer	24µH	±10%	100mOhm Max	180 @ 125kHz	6A	10A	5MHz	-20°C ~ 105°C
WRM483265-10F5-12V-G WIRELESS POWER TRANSFER RX COIL TDK Corporation	361	-	RFQ	Datasheet	Box	WRM	Active	Receiver	1 Coil, 1 Layer, Bifilar	-	-	-	-	1.25A	-	-	-30°C ~ 70°C
760308103102 TX 1 COIL 1 LAYER 10UH 7A Würth Elektronik	209	-	RFQ	Datasheet	Tray	WE-WPCC	Active	Transmitter	1 Coil, 1 Layer	10µH	±10%	55mOhm Max	130 @ 125kHz	7A	10A	11MHz	-20°C ~ 105°C

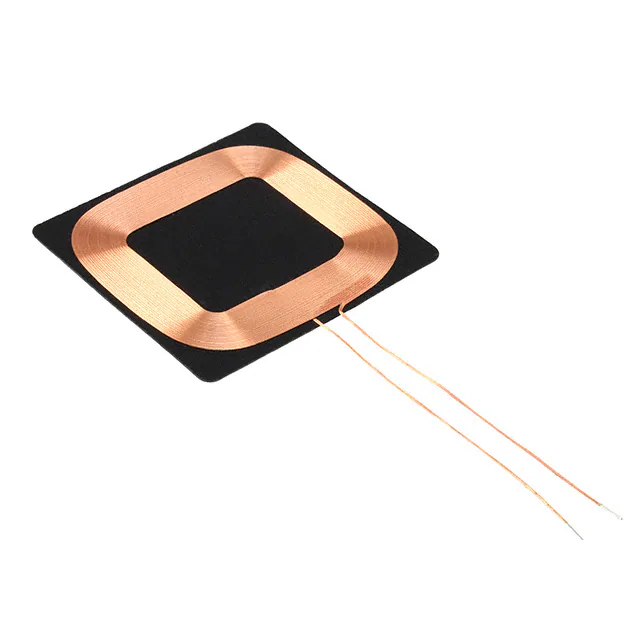

WR444030-16F3-G RX 1 COIL 1 LYR 19UH TDK Corporation	654	-	RFQ		Tray	WR	Active	Receiver	1 Coil, 1 Layer	19µH	-	700mOhm	-	-	-	-	-
WR483265-13F5-G RX 1 COIL, 1 LYR 10.1UH TDK Corporation	203	-	RFQ	Datasheet	Tray	WR	Active	Receiver	1 Coil, 1 Layer	10.1µH	-	270mOhm	-	-	-	-	-
WR555540-16K2-FS2 RX 1 COIL 2 LYR 15.8UH TDK Corporation	808	-	RFQ	Datasheet	Tray	WR	Active	Receiver	1 Coil, 2 Layer	15.8µH	-	100mOhm	98 @ 100kHz	-	-	-	-

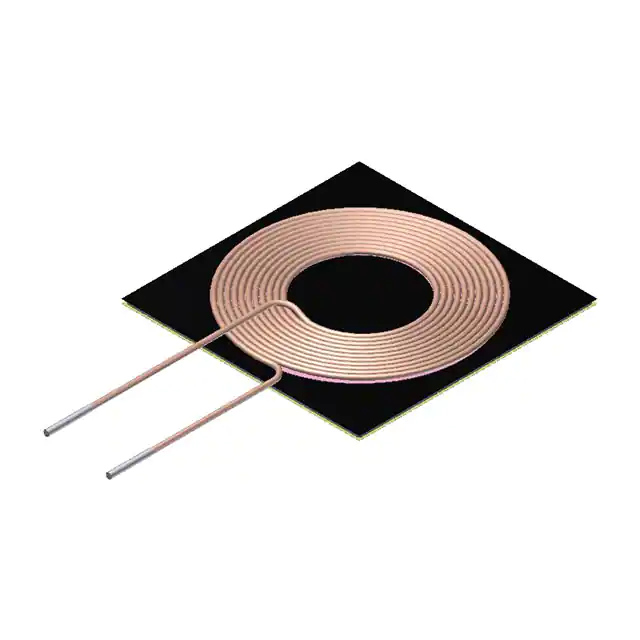

WT545490-11K2-FS TX 1 COIL 2 LYR 8.9UH TDK Corporation	143	-	RFQ	Datasheet	Tray	WT	Not For New Designs	Transmitter	1 Coil, 2 Layer	8.9µH	-	60mOhm	104 @ 100kHz	-	-	-	-
WTSC-6R3K-A11 SINGLE-COIL WIRELESS CHARGING CO Signal Transformer	406	-	RFQ	Datasheet	Box	WCC	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	40mOhm Max	-	6A	10A	-	-20°C ~ 85°C

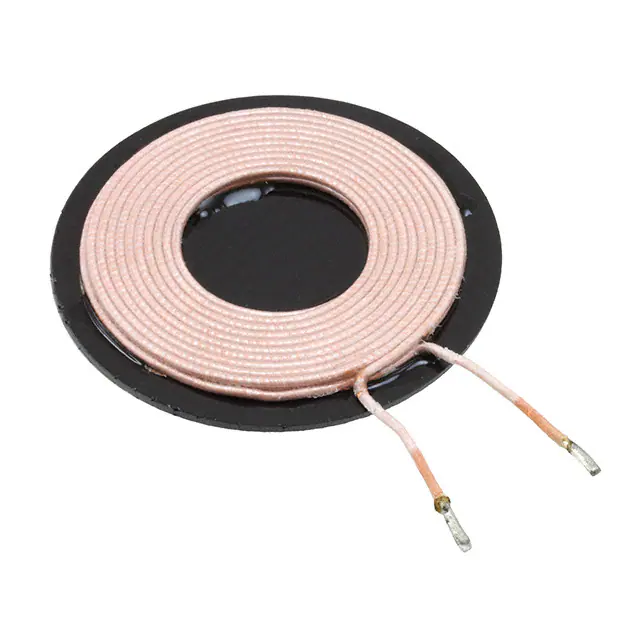

WT505090-20K2-A10-G TX 1 COIL 2 LYR 24UH TDK Corporation	277	-	RFQ		Tray	WT	Active	Transmitter	1 Coil, 2 Layer	24µH	-	100mOhm	-	-	-	-	-

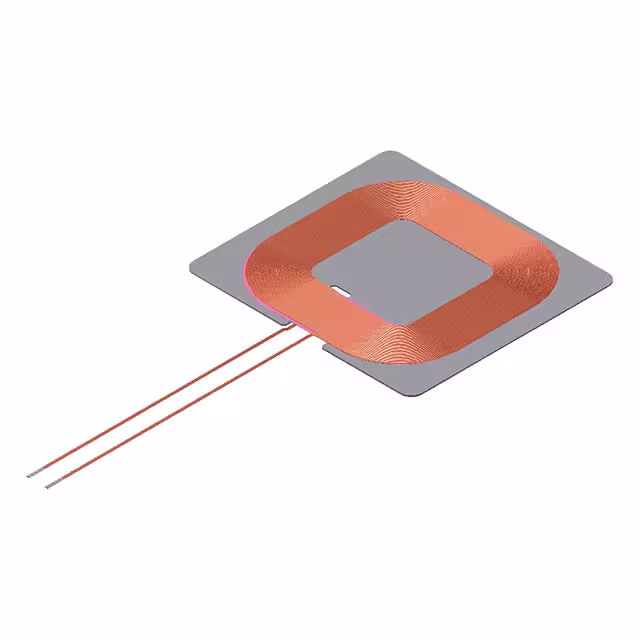

WR444025-17M6-G RX 1 COIL, 1 LYR 16.7UH TDK Corporation	135	-	RFQ		Tray	WR	Active	Receiver	1 Coil, 1 Layer	16.7µH	-	650mOhm	-	-	-	-	-

Total 263 Records«Prev 123 4 5...14 Next»
