Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Function	Type	Inductance	Tolerance	DCResistance(DCR)	Q@Freq	CurrentRating(Amps)	Current-Saturation(Isat)	Frequency-SelfResonant	OperatingTemperature
WCT38466-N0E0SST101 PATTERNED TX COIL FOR WPT TDK Corporation	184	-	RFQ	Datasheet	Tray	WCT	Active	Transmitter	1 Coil, 2 Layer	10.6µH	±0.5µH	149mOhm Max	-	-	-	-	-40°C ~ 85°C
1461798011 RX 1 COIL 1 LAYER 2.6UH Molex	2,634	-	RFQ	Datasheet	Bulk	NuCurrent, PowerLife, 146179	Obsolete	Receiver	1 Coil, 1 Layer	2.6µH	±2%	245mOhm	90 @ 6.78MHz	-	-	-	-
RWC5050AK060-500 TX 1 COIL 1 LAYER 6.5UH Laird-Signal Integrity Products	258	-	RFQ	Datasheet	Box	RWC	Active	Transmitter	1 Coil, 1 Layer	6.5µH	±10%	50mOhm Max	70 @ 100kHz	-	-	-	-40°C ~ 125°C

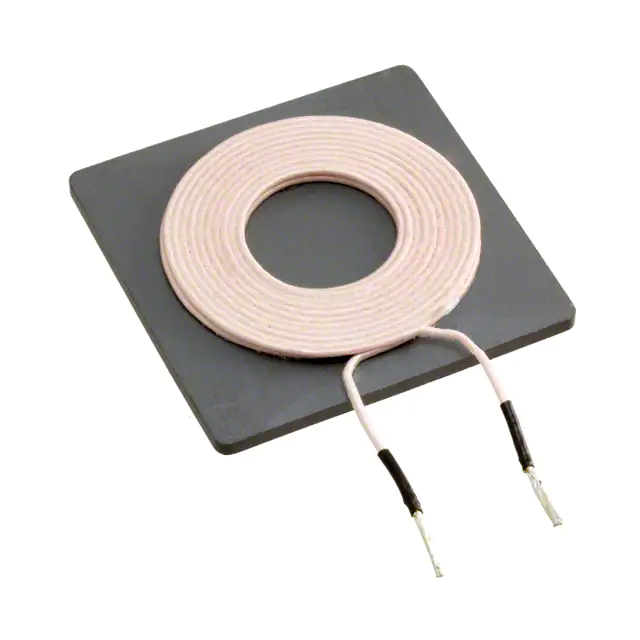

RWC5353EJ240-501 TX 1 COIL 2 LAYER 24UH 5.5A Laird-Signal Integrity Products	141	-	RFQ	Datasheet	Box	RWC	Active	Transmitter	1 Coil, 2 Layer	24µH	±10%	75mOhm Max	90 @ 100kHz	5.5A	10A	-	-40°C ~ 125°C
1461792001 RX 2 COIL 1 LAYER 10.6UH Molex	404	-	RFQ	Datasheet	Bulk	NuCurrent, PowerLife, 146179	Obsolete	Receiver	2 Coil, 1 Layer	10.6µH	±2%	190mOhm	24 @ 200kHz	-	-	-	-
1461798001 RX 1 COIL 1 LAYER 2.9UH Molex	430	-	RFQ	Datasheet	Bulk	NuCurrent, PowerLife, 146179	Obsolete	Receiver	1 Coil, 1 Layer	2.9µH	±2%	120mOhm	160 @ 6.78MHz	-	-	-	-
1461794001 RX 2 COIL 1 LAYER 8.9UH Molex	359	-	RFQ	Datasheet	Bulk	NuCurrent, PowerLife, 146179	Obsolete	Receiver	2 Coil, 1 Layer	8.9µH	±2%	350mOhm	25 @ 200kHz	-	-	-	-
AWCCA-98T56H38-C01-B TRANSMITTER 3 COIL 1 LAYER Abracon LLC	109	-	RFQ	Datasheet	Box	AWCCA	Active	Transmitter	3 Coil, 1 Layer	12.0µH, 11.5µH, 12.0µH	±10%	56mOhm	120 @ 100kHZ, 110 @ 100kHZ	-	-	-	-25°C ~ 85°C

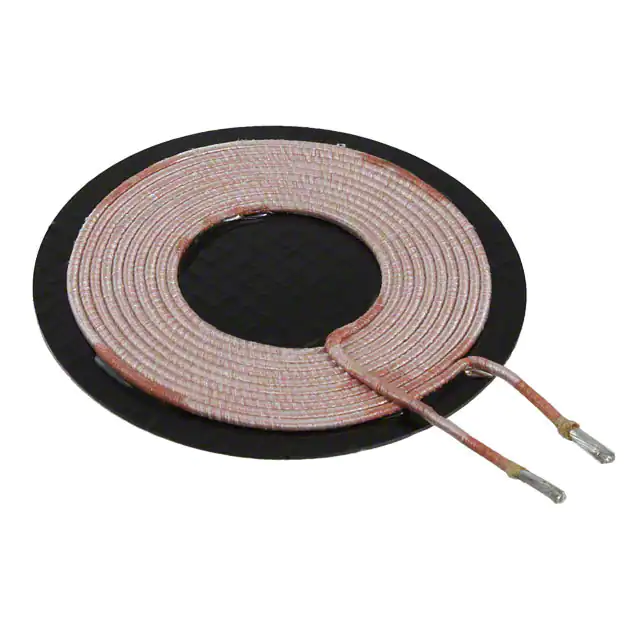

WT-505060-10K2-A11-G TX 1 COIL 1 LYR 6.3UH TDK Corporation	140	-	RFQ	Datasheet	Tray	WT	Last Time Buy	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	60mOhm Max	70 @ 100kHz	-	-	-	-30°C ~ 70°C
L41200R02 48UH Q = 19 TYPICAL AT 125KHZ WI ITG Electronics, Inc.	220	-	RFQ	Datasheet	Tray	-	Active	Receiver	1 Coil, 1 Layer	48µH	-	-	19 @ 125kHz	-	-	-	-40°C ~ 105°C
WR221230-36M8-G RX 1 COIL 2 LYR 27.9UH TDK Corporation	925	-	RFQ		Tray	WR	Active	Receiver	1 Coil, 2 Layer	27.9µH	-	1.21Ohm Max	-	-	-	-	-
WR121210-27M8-ID RX 1 COIL 1 LYR 8.32UH TDK Corporation	753	-	RFQ	Datasheet	Tray	WR	Active	Receiver	1 Coil, 1 Layer	8.32µH	±5%	950mOhm	-	-	-	-	-
WR111180-49F5-G RX 1 COIL 3 LYR 31.8UH TDK Corporation	244	-	RFQ	Datasheet	Tray	WR	Active	Receiver	1 Coil, 3 Layer	31.8µH	±5%	1.34Ohm	-	-	-	-	-

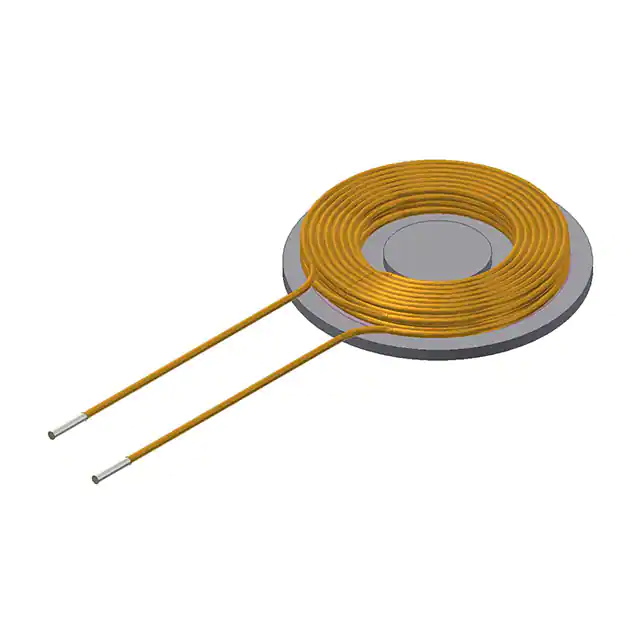

WT202080-28F2-G TX 1 COIL 4 LYR 20.9UH TDK Corporation	3,324	-	RFQ	Datasheet	Tray	WT	Active	Transmitter	1 Coil, 4 Layer	20.9µH	-	300mOhm	-	-	-	-	-

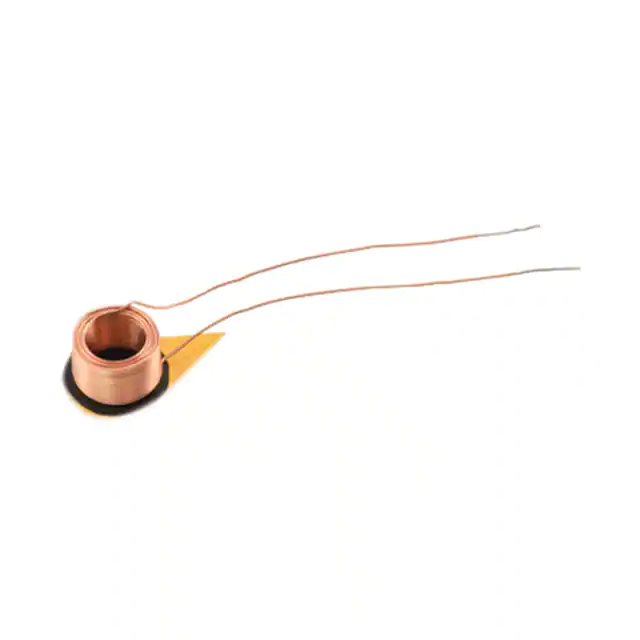

760308101221 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	3,599	-	RFQ	Datasheet	Bulk	WE-WPCC	Active	Receiver	1 Coil, 6 Layer	24µH	±10%	1.15Ohm Max	16 @ 125kHz	400mA	1A	10MHz	-20°C ~ 105°C

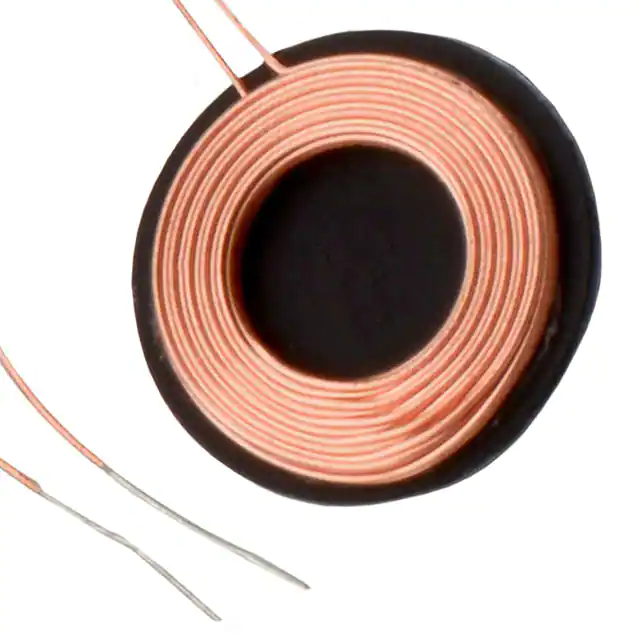

760308101208A RX 1 COIL 3 LAYER 18UH 700MA Würth Elektronik	2,930	-	RFQ	Datasheet	Tray	WE-WPCC	Active	Receiver	1 Coil, 3 Layer	18µH	±10%	650mOhm Max	18 @ 125kHz	700mA	2A	24MHz	-20°C ~ 105°C
760308101217 RX 1 COIL 6 LAYER 24.2UH 400MA Würth Elektronik	3,473	-	RFQ	Datasheet	Box	WE-WPCC	Active	Receiver	1 Coil, 6 Layer	24.2µH	±10%	1.4Ohm Max	13 @ 125kHz	400mA	1A	14.5MHz	-20°C ~ 105°C
760308103215 RX 1 COIL 1 LAYER 14.3UH 3A Würth Elektronik	2,926	-	RFQ	Datasheet	Tray	WE-WPCC	Active	Receiver	1 Coil, 1 Layer	14.3µH	±10%	190mOhm Max	40 @ 125kHz	3A	8A	8.8MHz	-20°C ~ 105°C
WR383245-17F5-G RX 1 COIL, 1 LYR 13.9UH TDK Corporation	2,585	-	RFQ	Datasheet	Tray	WR	Active	Receiver	1 Coil, 1 Layer	13.9µH	-	310mOhm	28 @ 100kHz	-	-	-	-
WT505090-10F2-LP-G1 TX 1 COIL, 1 LYR 6.3UH TDK Corporation	3,697	-	RFQ	Datasheet	Tray	WT	Active	Transmitter	1 Coil, 1 Layer	6.3µH	-	60mOhm	-	-	-	-	-

Total 263 Records«Prev 1 2 345 6 7...14 Next»
