Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Function	Type	Inductance	Tolerance	DCResistance(DCR)	Q@Freq	CurrentRating(Amps)	Current-Saturation(Isat)	Frequency-SelfResonant	OperatingTemperature
WR303050-15F5-G RX 1 COIL 2 LYR 12.3UH TDK Corporation	3,923	-	RFQ		Tray	WR	Active	Receiver	1 Coil, 2 Layer	12.3µH	-	410mOhm	-	-	-	-	-

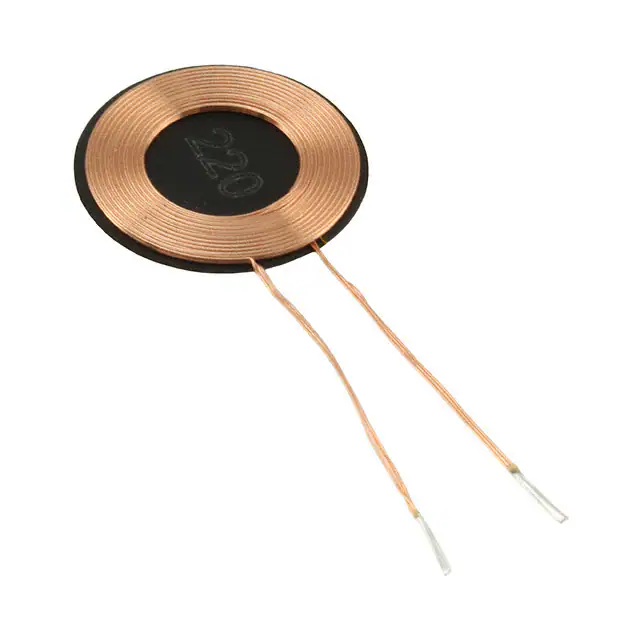

760308101220 RX 1 COIL 3 LAYER BIFILAR 12.6UH Würth Elektronik	2,157	-	RFQ	Datasheet	Box	WE-WPCC	Active	Receiver	1 Coil, 3 Layer, Bifilar	12.6µH	±10%	340mOhm Max	20 @ 125kHz	1.1A	2.5A	19MHz	-20°C ~ 105°C

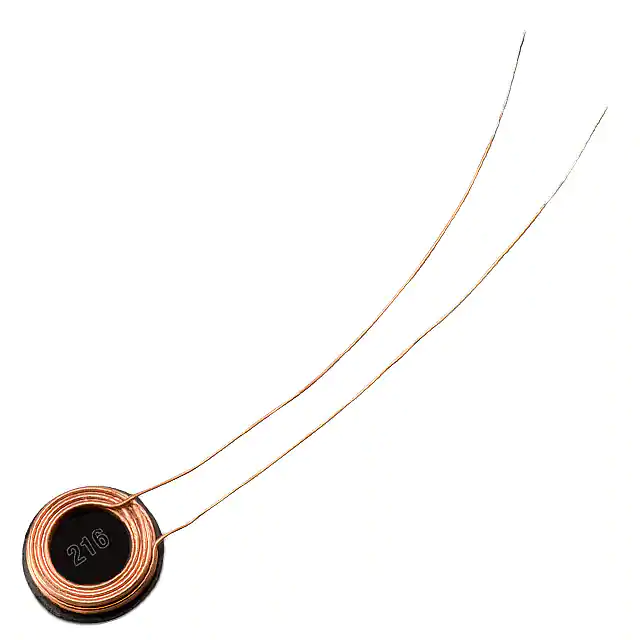

760308101216 RX 1 COIL 6 LAYER 7.2UH 500MA Würth Elektronik	3,014	-	RFQ	Datasheet	Box	WE-WPCC	Active	Receiver	1 Coil, 6 Layer	7.2µH	±10%	440mOhm Max	10 @ 125kHz	500mA	1A	32MHz	-20°C ~ 105°C

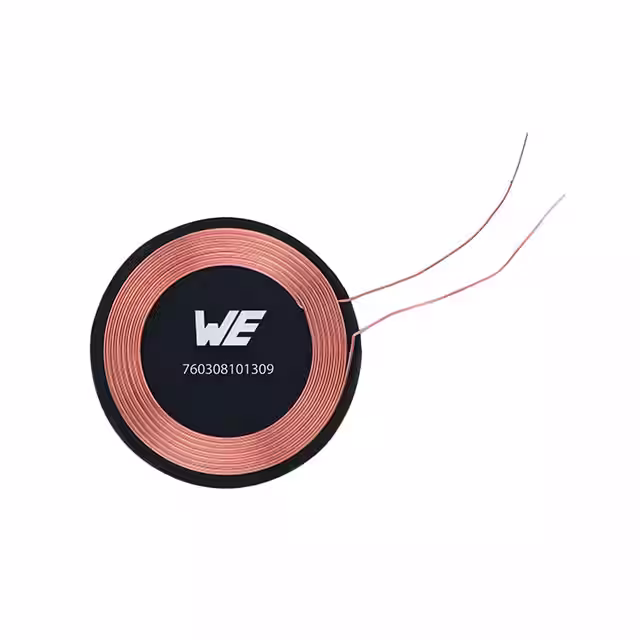

760308101309 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	2,599	-	RFQ		Bulk	WE-WPCC	Active	Receiver	1 Coil, 1 Layer	10µH	±10%	450mOhm	20 @ 125kHz	1.5A	5A	19MHz	-20°C ~ 105°C
760308101106 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	3,954	-	RFQ		Tray	WE-WPCC	Active	Transmitter	1 Coil, 1 Layer	2.5µH	±10%	90mOhm	30 @ 125kHz	2.5A	8A	38MHz	-20°C ~ 105°C

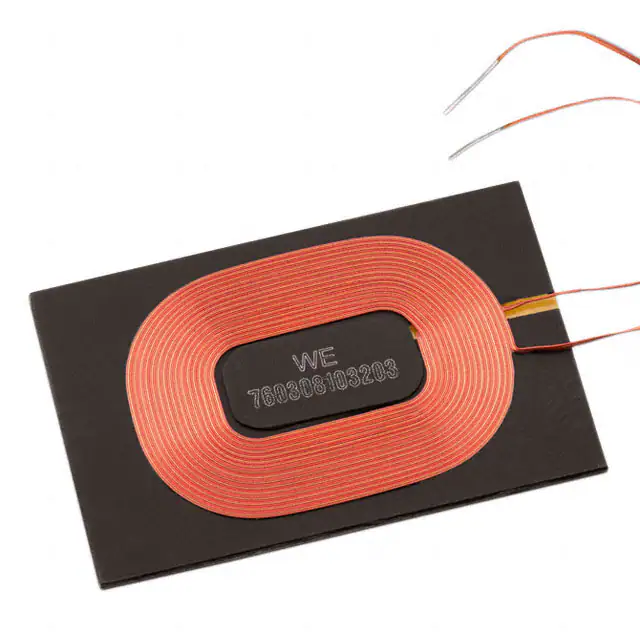

760308103203 RX 1 COIL 1 LAYER 12UH 1.55A Würth Elektronik	2,326	-	RFQ	Datasheet	Tray	WE-WPCC	Active	Receiver	1 Coil, 1 Layer	12µH	±10%	550mOhm	21 @ 125kHz	1.55A	3A	20MHz	-20°C ~ 105°C
760308102212 RX 1 COIL 1 LAYER 5.4UH 2A Würth Elektronik	2,470	-	RFQ	Datasheet	Tray	WE-WPCC	Active	Receiver	1 Coil, 1 Layer	5.4µH	±10%	240mOhm Max	18 @ 125kHz	2A	4A	25MHz	-20°C ~ 105°C

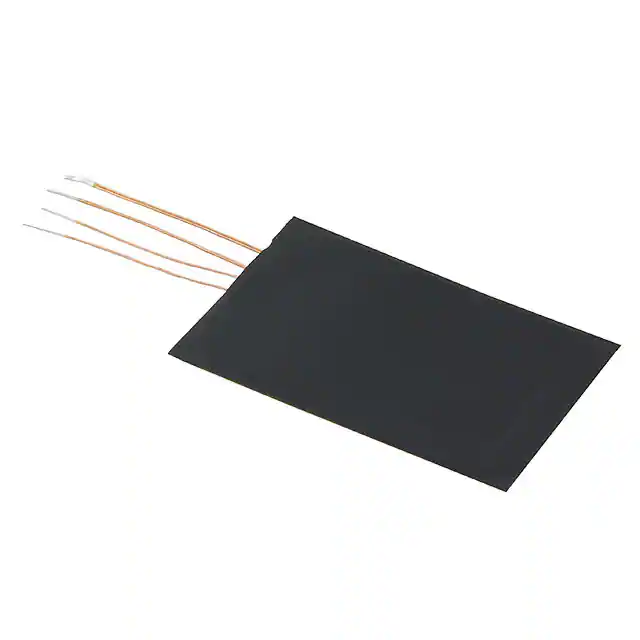

760308103307 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	3,972	-	RFQ	Datasheet	Tray	WE-WPCC	Active	Receiver	2 Coil, 1 Layer	7.8µH, 1.6µH	±10%	340mOhm Max, 90mOhm Max	19 @ 125kHz, 47 @ 125kHz	1.5A, 4A	3A, 7A	22MHz, 24MHz	-20°C ~ 105°C

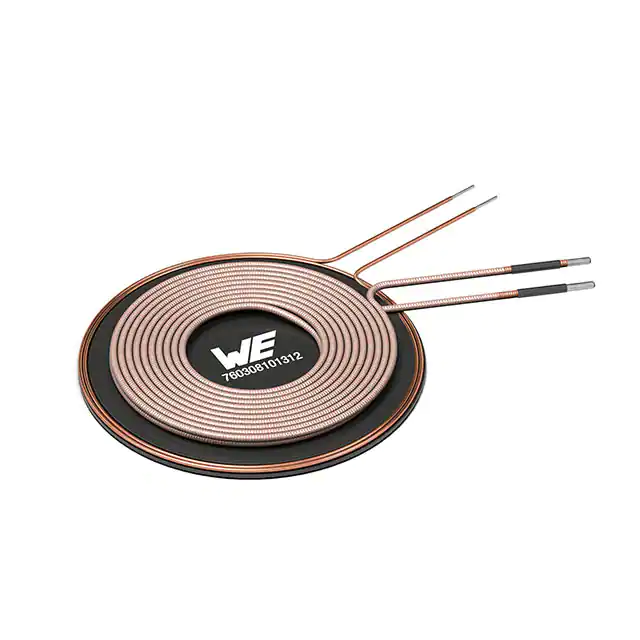

760308101312 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	3,636	-	RFQ	Datasheet	Tray	WE-WPCC	Active	Transmitter	2 Coil, 1 Layer	24µH, 700nH	±10%	90mOhm, 30mOhm	125 @ 125kHz, 30 @ 125kHz	6A, 13A	-	7MHz, 63MHz	-20°C ~ 105°C
760308101411 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	2,995	-	RFQ	Datasheet	Tray	WE-WPCC	Active	Transmitter	1 Coil, 1 Layer	6.3µH	±10%	48mOhm	110 @ 125kHz	7.5A	10A	20MHz	-20°C ~ 105°C

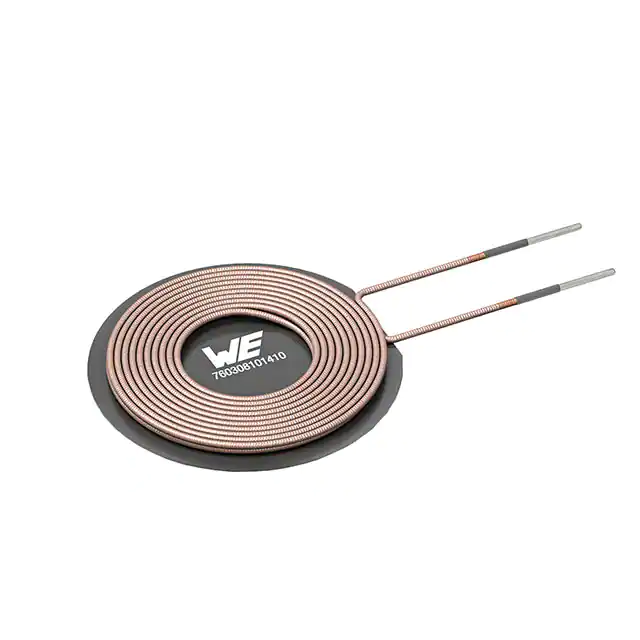

760308101410 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	3,345	-	RFQ	Datasheet	Tray	WE-WPCC	Active	Transmitter	1 Coil, 1 Layer	24µH	±10%	100mOhm	170 @ 125kHz	5.5A	10A	6MHz	-20°C ~ 105°C
760308104113 TX 1 COIL 1 LAYER 12UH 7A Würth Elektronik	3,998	-	RFQ	Datasheet	Tray	WE-WPCC	Active	Transmitter	1 Coil, 1 Layer	12µH	±10%	72mOhm Max	120 @ 125kHz	7A	12A	16MHz	-20°C ~ 105°C
760308102308 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	2,107	-	RFQ	Datasheet	Box	WE-WPCC	Active	Transmitter	1 Coil, 1 Layer	3µH	±10%	35mOhm Max	60 @ 125kHz	8.5A	15A	27MHz	-20°C ~ 105°C

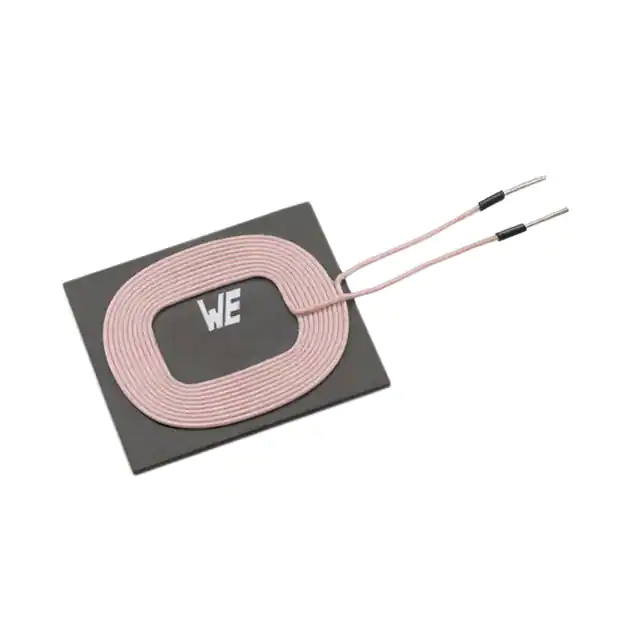

760308103146 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	2,075	-	RFQ	Datasheet	Tray	WE-WPCC	Active	Transmitter	1 Coil, 1 Layer	8.5µH	±10%	56mOhm Max	140 @ 125kHz	8A	16A	11MHz	-20°C ~ 60°C
760308101302 TX 1 COIL 1 LAYER 5.3UH 8A Würth Elektronik	3,215	-	RFQ	Datasheet	Box	WE-WPCC	Active	Transmitter	1 Coil, 1 Layer	5.3µH	±10%	33mOhm	100 @ 125kHz	8A	10A	27MHz	-20°C ~ 105°C
760308102142 TX 1 COIL 1 LYR BIFIL 5.8UH 18A Würth Elektronik	2,405	-	RFQ	Datasheet	Box	WE-WPCC	Active	Transmitter	1 Coil, 2 Layer, Bifilar	5.8µH	±10%	12mOhm Max	100 @ 125kHz	18A	30A	12MHz	-20°C ~ 105°C
760308100143 TX 1 COIL 2 LAYER 6UH 12A Würth Elektronik	3,637	-	RFQ	Datasheet	Box	WE-WPCC	Active	Transmitter	1 Coil, 2 Layer	6µH	±10%	18mOhm Max	180 @ 125kHz	12A	24A	16MHz	-20°C ~ 105°C
760308102144 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	2,381	-	RFQ	Datasheet	Box	WE-WPCC	Active	Transmitter	1 Coil, 2 Layer	19.5µH	±10%	45mOhm Max	220 @ 125kHz	9.5A	20A	5MHz	-20°C ~ 105°C

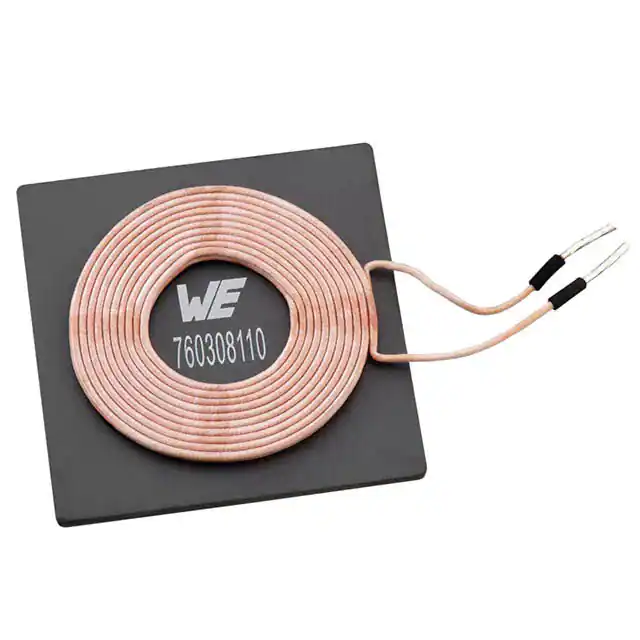

760308141 TX 1 COIL 2 LAYER 10UH 9A Würth Elektronik	3,678	-	RFQ	Datasheet	Box	WE-WPCC	Active	Transmitter	1 Coil, 2 Layer	10µH	±10%	30mOhm Max	140 @ 125kHz	9A	16A	11MHz	-20°C ~ 105°C

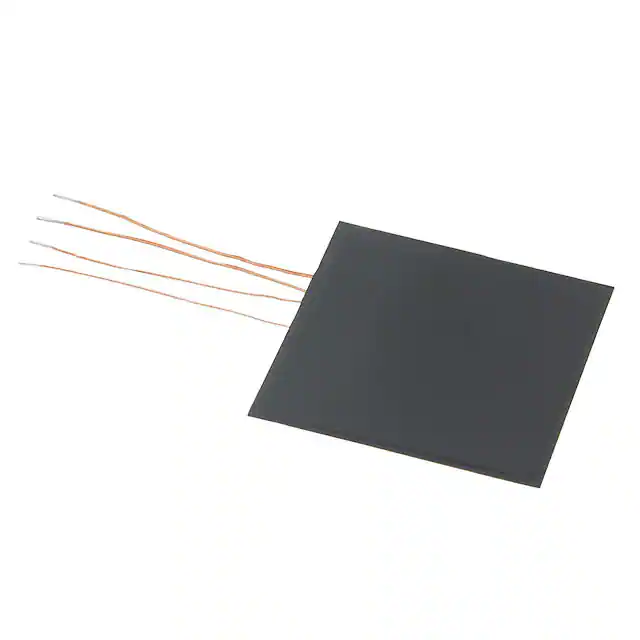

760308102306 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	2,326	-	RFQ	Datasheet	Tray	WE-WPCC	Active	Receiver	2 Coil, 1 Layer	8µH, 1.4µH	±10%	400mOhm Max, 100mOhm Max	19 @ 125kHz, 47 @ 125kHz	2A, 5A	5A, 5A	17.5MHz, 19MHz	-20°C ~ 105°C

Total 263 Records«Prev 1 2 3 4 5 678 9 10...14 Next»
