Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Function	Type	Inductance	Tolerance	DCResistance(DCR)	Q@Freq	CurrentRating(Amps)	Current-Saturation(Isat)	Frequency-SelfResonant	OperatingTemperature

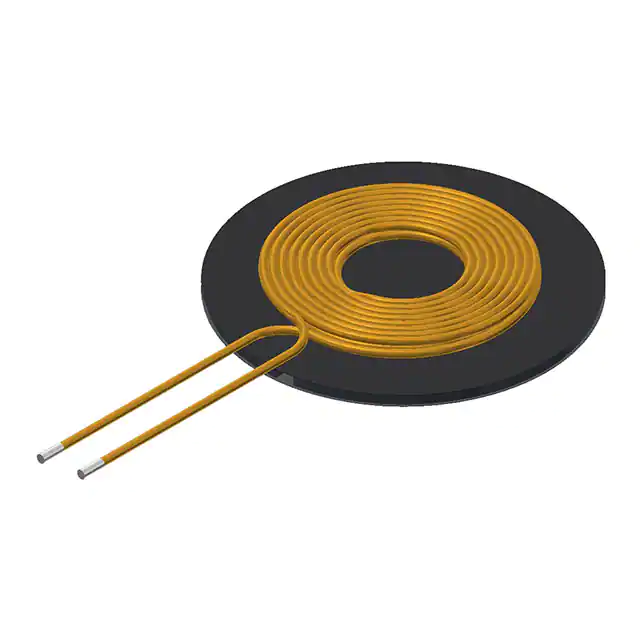

WT282890-16F2-G TX 1 COIL 2 LYR 7.4UH TDK Corporation	3,552	-	RFQ	Datasheet	Tray	WT	Active	Transmitter	1 Coil, 2 Layer	7.4µH	-	110mOhm	-	-	-	-	-

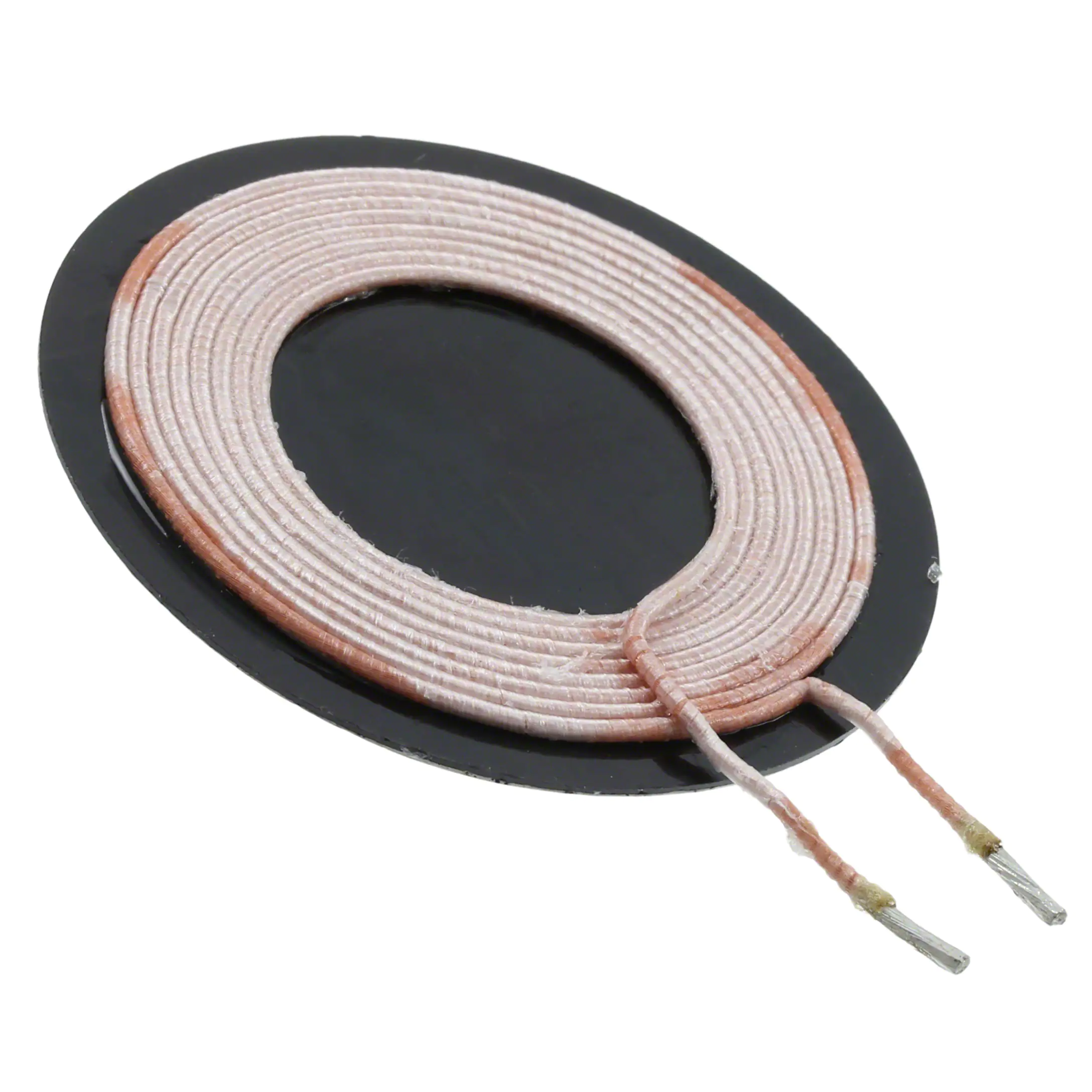

WT-505060-8K2-LT TX 1 COIL 1 LYR 4.95UH TDK Corporation	2,935	-	RFQ	Datasheet	Tray	WT	Active	Transmitter	1 Coil, 1 Layer	4.95µH	-	30mOhm	97 @ 100kHz	-	-	-	-
760308102213 RX 1 COIL 1 LAYER 7.9UH 1.7A Würth Elektronik	3,139	-	RFQ	Datasheet	Tray	WE-WPCC	Active	Receiver	1 Coil, 1 Layer	7.9µH	±10%	330mOhm Max	18 @ 125kHz	1.7A	4A	21MHz	-20°C ~ 105°C

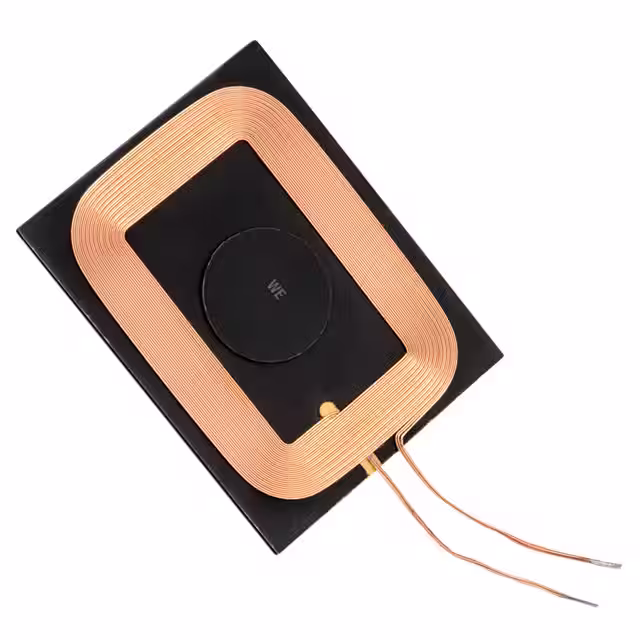

760308103211 RX 1 COIL 1 LAYER 7.3UH 2.5A Würth Elektronik	3,855	-	RFQ	Datasheet	Tray	WE-WPCC	Active	Receiver	1 Coil, 1 Layer	7.3µH	±10%	200mOhm Max	28 @ 125kHz	2.5A	5A	12.7MHz	-20°C ~ 105°C
WR524830-16F3-NF-G RX 1 COIL, 1 LYR 19.5UH TDK Corporation	2,866	-	RFQ		Tray	WR	Active	Receiver	1 Coil, 1 Layer	19.5µH	-	800mOhm	-	-	-	-	-
WR524825-17M6-NF-G RX 1 COIL, 1 LYR 16.8UH TDK Corporation	3,800	-	RFQ	Datasheet	Tray	WR	Active	Receiver	1 Coil, 1 Layer	16.8µH	-	750mOhm	-	-	-	-	-
760308102210 RX 1 COIL 1 LAYER 7.5UH 3A Würth Elektronik	3,954	-	RFQ	Datasheet	Tray	WE-WPCC	Active	Receiver	1 Coil, 1 Layer	7.5µH	±10%	180mOhm Max	45 @ 125kHz	3A	6A	22MHz	-20°C ~ 105°C
760308105 TX 1 COIL 2 LYR BILFILAR 6.3UH Würth Elektronik	3,483	-	RFQ	Datasheet	Tray	WE-WPCC	Active	Transmitter	1 Coil, 2 Layer, Bifilar	6.3µH	±10%	24mOhm Max	55 @ 125kHz	13A	16A	20MHz	-20°C ~ 105°C
WTM9R8K-A9 MULTI-COIL WIRELESS CHARGING COI Signal Transformer	2,298	-	RFQ	Datasheet	Box	WCC	Active	Transmitter	3 Coil, 1 Layer	9.8µH, 10.2µH, 9.8µH	±10%	60mOhm Max, 65mOhm Max	-	8A	10A	-	-20°C ~ 85°C
760308101 TX 1 COIL 2 LAYER 24UH 6A Würth Elektronik	3,133	-	RFQ	Datasheet	Tray	WE-WPCC	Active	Transmitter	1 Coil, 2 Layer	24µH	±10%	100mOhm Max	90 @ 125kHz	6A	10A	6MHz	-20°C ~ 105°C

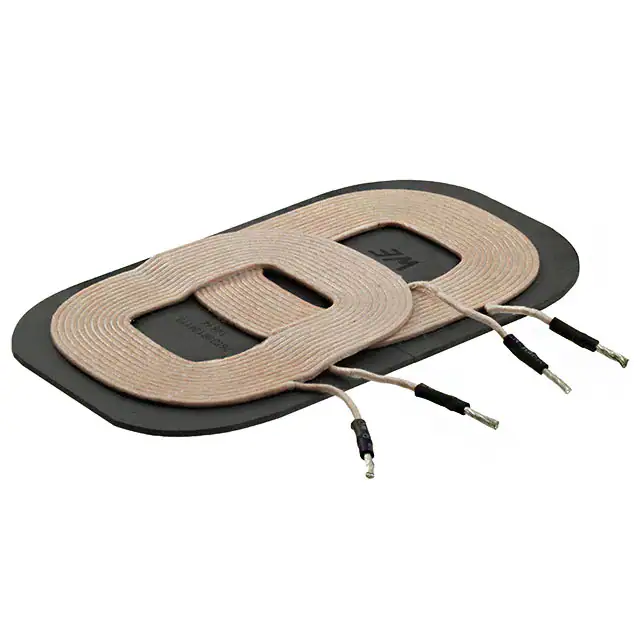

760308104119 TX 2 COIL 1 LAYER 12UH 11.5UH 8A Würth Elektronik	2,604	-	RFQ	Datasheet	Tray	WE-WPCC	Active	Transmitter	2 Coil, 1 Layer	12µH, 11.5µH	±10%	56mOhm	130 @ 125kHz	8A	12A	12MHz	-20°C ~ 105°C

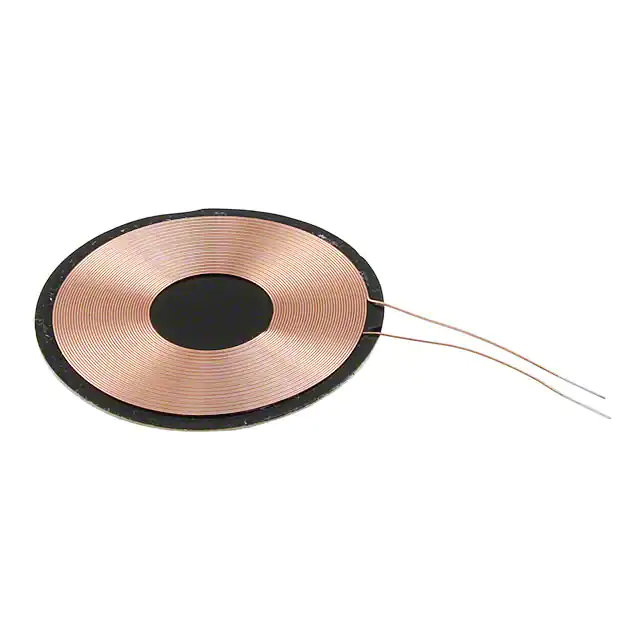

WR282840-37K2-LR3 RX 1 COIL 1 LYR 46UH TDK Corporation	2,759	-	RFQ	Datasheet	Tray	WR	Active	Receiver	1 Coil, 1 Layer	46µH	-	1.25Ohm	-	-	-	-	-

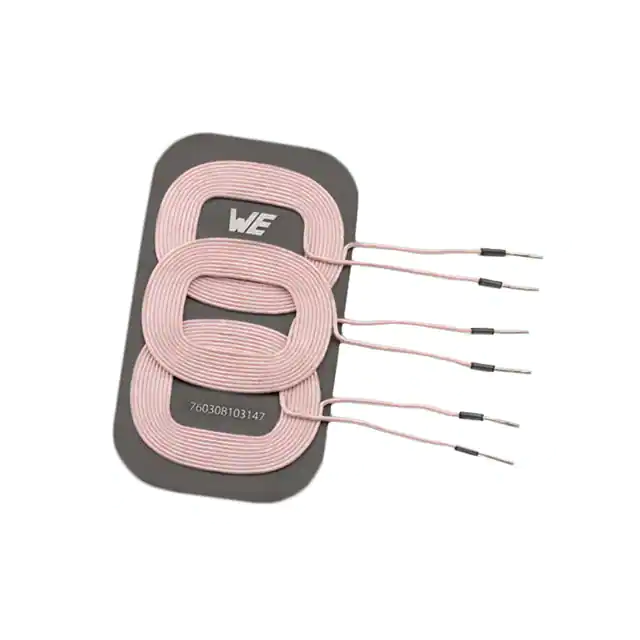

760308103147 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	2,985	-	RFQ	Datasheet	Bulk	WE-WPCC	Active	Transmitter	3 Coil, 1 Layer	8.5µH, 7.5µH, 8.5µH	±10%	56mOhm Max	145 @ 125kHz, 130 @ 125kHz, 145 @ 125kHz	9A, 10A, 9A	18A	11MHz	-20°C ~ 105°C
760308103145 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	2,959	-	RFQ	Datasheet	Bulk	WE-WPCC	Active	Transmitter	3 Coil, 1 Layer	11.3µH	±10%	83mOhm Max	150 @ 125kHz, 145 @ 125kHz	8.5A	24A	10MHz	-20°C ~ 105°C
760308103148 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	3,830	-	RFQ	Datasheet	Bulk	WE-WPCC	Active	Receiver, Transmitter	2 Coil, 1 Layer	6.9µH, 6.4µH	±10%	52mOhm Max	120 @ 125kHz, 115 @ 125kHz	8.5A	20A	15MHz, 19MHz	-20°C ~ 105°C
760308103149 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	3,979	-	RFQ	Datasheet	Tray	WE-WPCC	Active	Transmitter	3 Coil, 1 Layer	10.2µH, 9.8µH, 10.2µH	±10%	55mOhm	110 @ 125kHz	9A	18A	8MHz	-20°C ~ 105°C

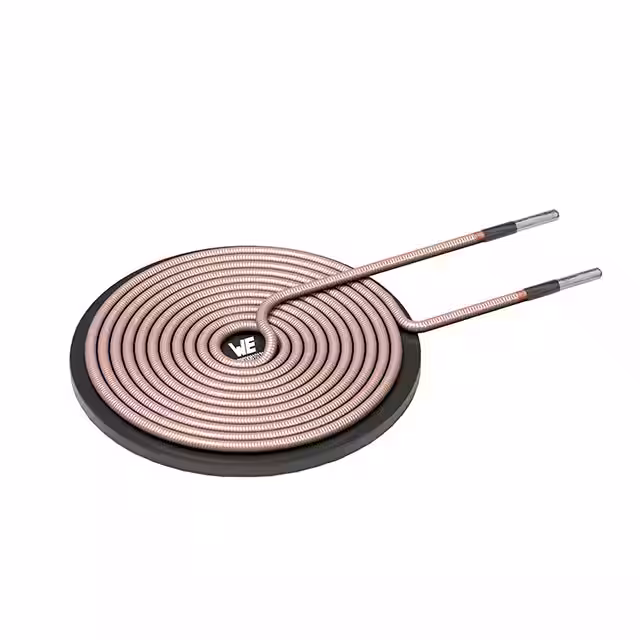

760308101311 WE-WPCC WIRELESS POWER CHARGING Würth Elektronik	3,465	-	RFQ	Datasheet	Tray	WE-WPCC	Active	Transmitter	1 Coil, 1 Layer	5.8µH	±10%	14mOhm	220 @ 125kHz	21A	-	13MHz	-20°C ~ 105°C

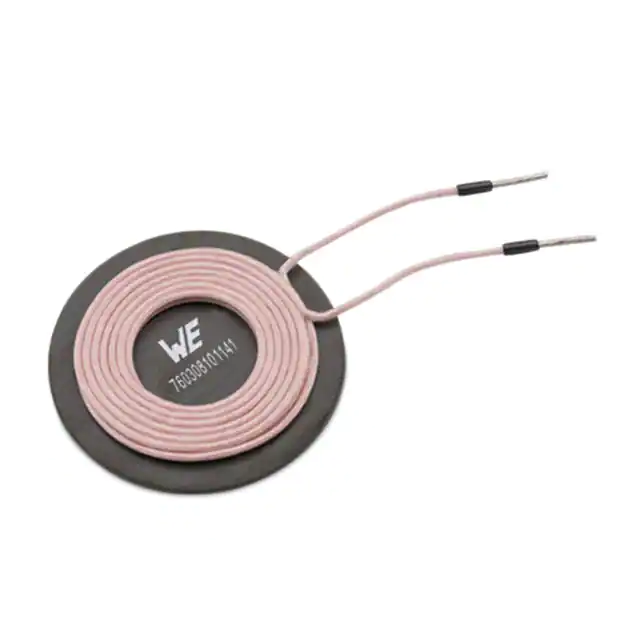

760308100141 TX 1 COIL 2 LAYER 10UH 9A Würth Elektronik	2,267	-	RFQ	Datasheet	Box	WE-WPCC	Active	Transmitter	1 Coil, 2 Layer	10µH	±10%	30mOhm Max	180 @ 125kHz	9A	16A	11MHz	-20°C ~ 105°C
760308106 TX 3 COIL 1 LAYER 10A Würth Elektronik	3,667	-	RFQ	Datasheet	Box	WE-WPCC	Active	Transmitter	3 Coil, 1 Layer	12.5µH, 11.5µH, 12.5µH	-	65mOhm	140 @ 125kHz	10A	10A	-	-
WTM12R5K-A28 MULTI-COIL WIRELESS CHARGING COI Signal Transformer	2,674	-	RFQ	Datasheet	Box	WCC	Active	Transmitter	3 Coil, 1 Layer	11.5µH, 12.5µH	±10%	65mOhm Max	-	7A	10A	-	-20°C ~ 85°C

Total 263 Records«Prev 1 2 3 456 7 8...14 Next»
