Aluminum Electrolytic Capacitors- Page 29

MAX3232IDR PIC18F25K22T-I/SO 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
860020372002 CAP ALUM 22UF 20% 16V RADIAL Würth Elektronik	2,771	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATG5	Active	22 µF	±20%	16 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	54 mA @ 120 Hz	82.62 mA @ 100 kHz	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
860020372003 CAP ALUM 33UF 20% 16V RADIAL Würth Elektronik	2,380	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATG5	Active	33 µF	±20%	16 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	64 mA @ 120 Hz	97.92 mA @ 100 kHz	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
860020472001 CAP ALUM 4.7UF 20% 25V RADIAL Würth Elektronik	3,946	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATG5	Active	4.7 µF	±20%	25 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	26 mA @ 120 Hz	44.2 mA @ 100 kHz	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
860020272001 CAP ALUM 22UF 20% 10V RADIAL Würth Elektronik	2,526	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATG5	Active	22 µF	±20%	10 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	45 mA @ 120 Hz	68.85 mA @ 100 kHz	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
25ZL47MEFCT15X11 CAP ALUM 47UF 20% 25V RADIAL Rubycon	14,746	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	ZL	Active	47 µF	±20%	25 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	100 mA @ 120 Hz	250 mA @ 100 kHz	300 mOhms	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole

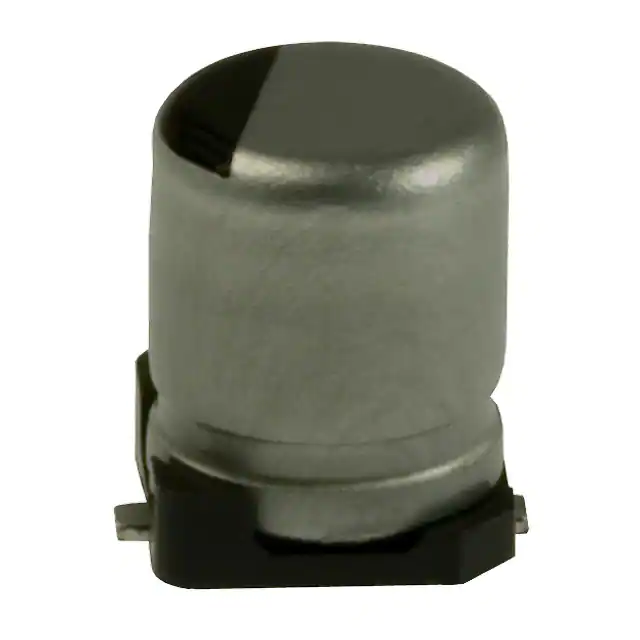

EEE-1HA2R2SR CAP ALUM 2.2UF 20% 50V SMD Panasonic Electronic Components	1,096	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	S	Not For New Designs	2.2 µF	±20%	50 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	AEC-Q200	Automotive	8 mA @ 120 Hz	27.2 mA @ 10 kHz	-	-	0.157 Dia (4.00mm)	0.213 (5.40mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount
UVY2A100MDD1TD CAP ALUM 10UF 20% 100V RADIAL Nichicon	41,543	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UVY	Not For New Designs	10 µF	±20%	100 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	50 mA @ 120 Hz	100 mA @ 10 kHz	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
UVK1E101MDD1TD CAP ALUM 100UF 20% 25V RADIAL Nichicon	23,810	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UVK	Not For New Designs	100 µF	±20%	25 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	180 mA @ 120 Hz	270 mA @ 10 kHz	-	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
UVY1C221MED1TD CAP ALUM 220UF 20% 16V RADIAL Nichicon	8,661	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UVY	Not For New Designs	220 µF	±20%	16 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	190 mA @ 120 Hz	285 mA @ 10 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
UVR1C331MPD1TA CAP ALUM 330UF 20% 16V RADIAL Nichicon	3,974	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UVR	Not For New Designs	330 µF	±20%	16 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	370 mA @ 120 Hz	555 mA @ 10 kHz	-	0.197 (5.00mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole

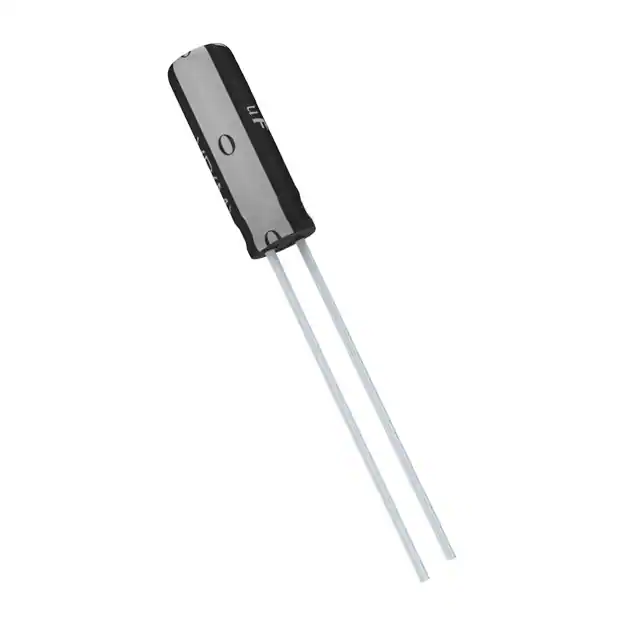

UVR0J101MDD6TP CAP ALUM 100UF 20% 6.3V RADIAL Nichicon	3,395	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UVR	Not For New Designs	100 µF	±20%	6.3 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	135 mA @ 120 Hz	202.5 mA @ 10 kHz	-	0.059 (1.50mm)	0.157 Dia (4.00mm)	0.492 (12.50mm)	-	Through Hole
UFW1J470MED1TD CAP ALUM 47UF 20% 63V RADIAL Nichicon	8,390	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UFW	Not For New Designs	47 µF	±20%	63 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	165 mA @ 120 Hz	330 mA @ 10 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole

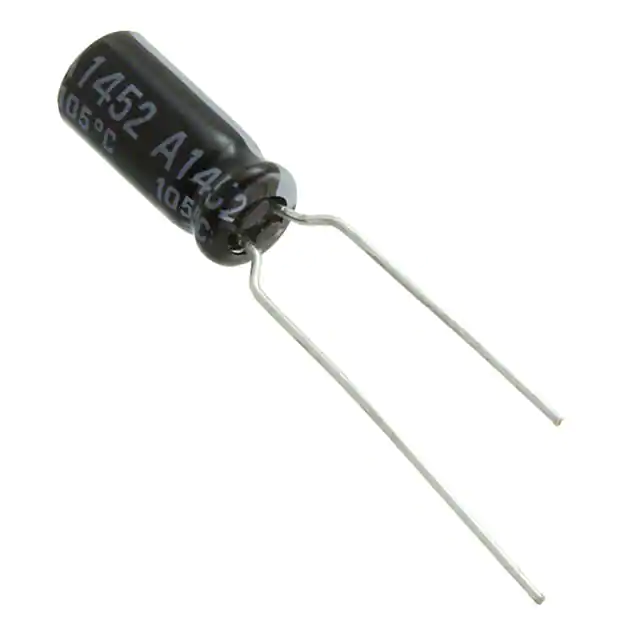

25YXJ47MTA5X11 CAP ALUM 47UF 20% 25V RADIAL Rubycon	22,041	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	YXJ	Active	47 µF	±20%	25 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	137.5 mA @ 120 Hz	250 mA @ 100 kHz	400 mOhms	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
UVP1H4R7MDD1TD CAP ALUM 4.7UF 20% 50V RADIAL Nichicon	34,876	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UVP	Not For New Designs	4.7 µF	±20%	50 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Bi-Polar	-	General Purpose	34 mA @ 120 Hz	-	-	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole

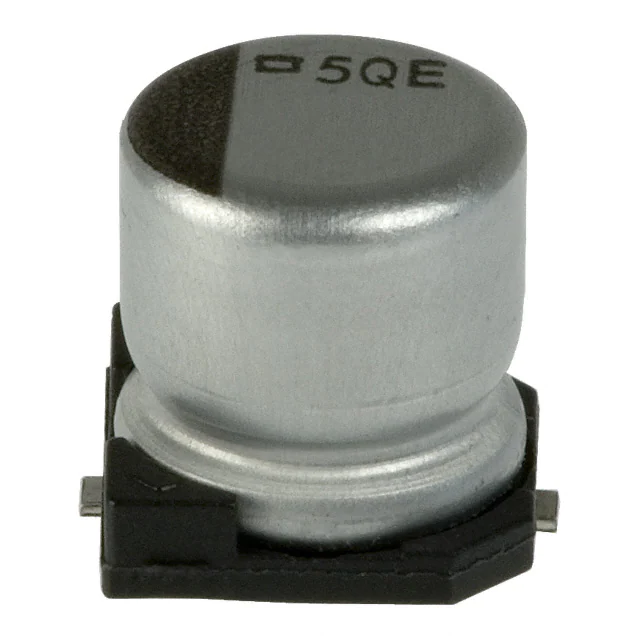

EMVE160ADA220ME55G CAP ALUM 22UF 20% 16V SMD United Chemi-Con	191	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Alchip™- MVE	Active	22 µF	±20%	16 V	-	1000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	30 mA @ 120 Hz	-	-	-	0.197 Dia (5.00mm)	0.205 (5.20mm)	0.209 L x 0.209 W (5.30mm x 5.30mm)	Surface Mount
EEE-HA1E4R7R CAP ALUM 4.7UF 20% 25V SMD Panasonic Electronic Components	1,098	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	HA	Not For New Designs	4.7 µF	±20%	25 V	-	1000 Hrs @ 105°C	-40°C ~ 105°C	Polar	AEC-Q200	Automotive	22 mA @ 120 Hz	37.4 mA @ 10 kHz	-	-	0.157 Dia (4.00mm)	0.213 (5.40mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount
860010672004 CAP ALUM 0.47UF 20% 50V RADIAL Würth Elektronik	18,238	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATG8	Active	0.47 µF	±20%	50 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	7.5 mA @ 120 Hz	12.75 mA @ 100 kHz	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
860020372004 CAP ALUM 47UF 20% 16V RADIAL Würth Elektronik	4,502	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATG5	Active	47 µF	±20%	16 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	100 mA @ 120 Hz	153 mA @ 100 kHz	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
860020672007 CAP ALUM 3.3UF 20% 50V RADIAL Würth Elektronik	4,054	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATG5	Active	3.3 µF	±20%	50 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	26 mA @ 120 Hz	36.4 mA @ 100 kHz	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
860020672008 CAP ALUM 4.7UF 20% 50V RADIAL Würth Elektronik	4,721	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATG5	Active	4.7 µF	±20%	50 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	32 mA @ 120 Hz	54.4 mA @ 100 kHz	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
