Aluminum Electrolytic Capacitors- Page 32

MAX3232IDR PIC18F25K22T-I/SO 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
UFW1C471MPD1TD CAP ALUM 470UF 20% 16V RADIAL Nichicon	1,957	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UFW	Not For New Designs	470 µF	±20%	16 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	420 mA @ 120 Hz	-	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole
ECA-1HHG2R2I CAP ALUM 2.2UF 20% 50V RADIAL Panasonic Electronic Components	5,153	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	NHG-A	Active	2.2 µF	±20%	50 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	18 mA @ 120 Hz	36 mA @ 100 kHz	-	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.472 (12.00mm)	-	Through Hole
UVR1C101MDD1TA CAP ALUM 100UF 20% 16V RADIAL Nichicon	49,408	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UVR	Not For New Designs	100 µF	±20%	16 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	160 mA @ 120 Hz	240 mA @ 10 kHz	-	0.197 (5.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole

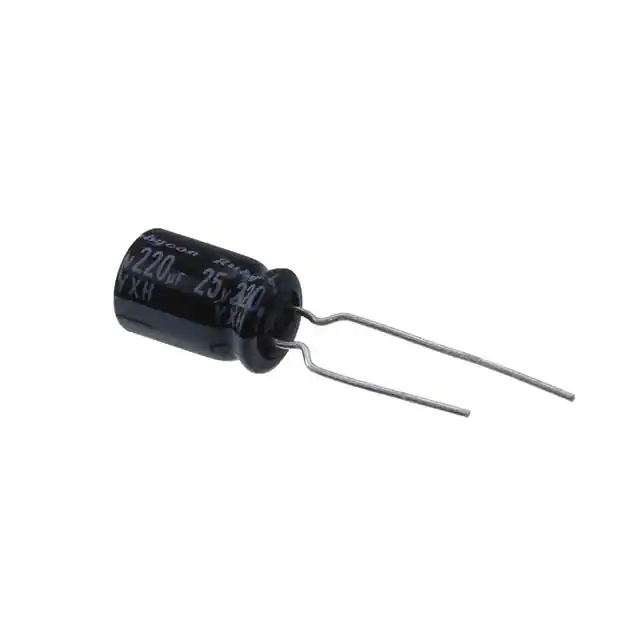

25YXH220MEFCTA8X11.5 CAP ALUM 220UF 20% 25V RADIAL Rubycon	26,040	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	YXH	Active	220 µF	±20%	25 V	-	7000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	320 mA @ 120 Hz	-	130 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole
ESE476M050AE3DA CAP ALUM 47UF 20% 50V RADIAL KEMET	5,688	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	ESE	Active	47 µF	±20%	50 V	-	1000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	105 mA @ 120 Hz	152.25 mA @ 10 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
860020772010 CAP ALUM 10UF 20% 63V RADIAL Würth Elektronik	2,868	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATG5	Active	10 µF	±20%	63 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	42 mA @ 120 Hz	71.4 mA @ 100 kHz	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
860080472002 CAP ALUM 47UF 20% 25V RADIAL Würth Elektronik	3,543	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATLI	Active	47 µF	±20%	25 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	-	240 mA @ 100 kHz	350 mOhms	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
ULD1H220MDD1TD CAP ALUM 22UF 20% 50V RADIAL Nichicon	6,309	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	ULD	Not For New Designs	22 µF	±20%	50 V	-	10000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	74.25 mA @ 120 Hz	135 mA @ 100 kHz	-	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
860080672001 CAP ALUM 22UF 20% 50V RADIAL Würth Elektronik	7,673	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATLI	Active	22 µF	±20%	50 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	-	220 mA @ 100 kHz	350 mOhms	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
860010473007 CAP ALUM 100UF 20% 25V RADIAL Würth Elektronik	2,346	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATG8	Active	100 µF	±20%	25 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	209 mA @ 120 Hz	319.77 mA @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole

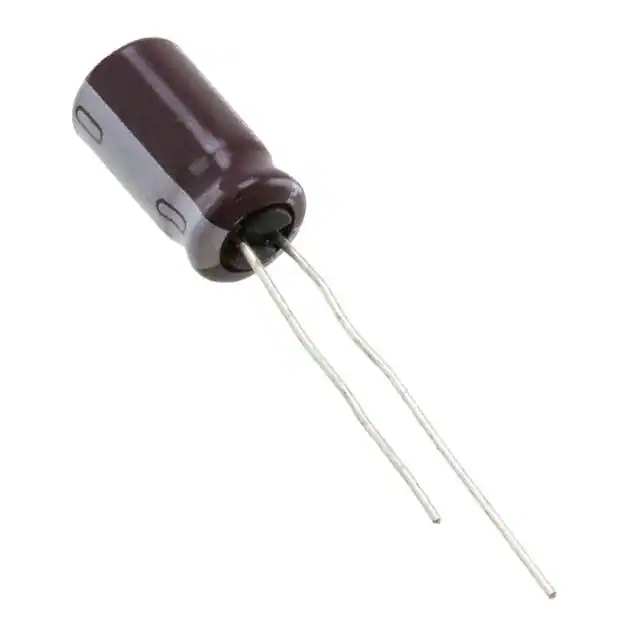

UPW0J221MED1TD CAP ALUM 220UF 20% 6.3V RADIAL Nichicon	2,384	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UPW	Not For New Designs	220 µF	±20%	6.3 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	188.5 mA @ 120 Hz	290 mA @ 100 kHz	250 mOhms	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
EEA-GA1E100H CAP ALUM 10UF 20% 25V RADIAL Panasonic Electronic Components	27,097	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	GA-A	Active	10 µF	±20%	25 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	33 mA @ 120 Hz	51.15 mA @ 100 kHz	-	0.098 (2.50mm)	0.157 Dia (4.00mm)	0.276 (7.00mm)	-	Through Hole
EEA-GA1H3R3H CAP ALUM 3.3UF 20% 50V RADIAL Panasonic Electronic Components	13,138	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	GA-A	Active	3.3 µF	±20%	50 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	22 mA @ 120 Hz	34.1 mA @ 100 kHz	-	0.098 (2.50mm)	0.157 Dia (4.00mm)	0.276 (7.00mm)	-	Through Hole
EEA-GA1C100H CAP ALUM 10UF 20% 16V RADIAL Panasonic Electronic Components	10,012	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	GA-A	Active	10 µF	±20%	16 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	30 mA @ 120 Hz	46.5 mA @ 100 kHz	-	0.098 (2.50mm)	0.157 Dia (4.00mm)	0.276 (7.00mm)	-	Through Hole
EEA-GA1E100B CAP ALUM 10UF 20% 25V RADIAL Panasonic Electronic Components	11,161	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	GA-A	Active	10 µF	±20%	25 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	33 mA @ 120 Hz	51.15 mA @ 100 kHz	-	0.197 (5.00mm)	0.157 Dia (4.00mm)	0.276 (7.00mm)	-	Through Hole
EEA-GA1C100B CAP ALUM 10UF 20% 16V RADIAL Panasonic Electronic Components	9,207	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	GA-A	Active	10 µF	±20%	16 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	30 mA @ 120 Hz	46.5 mA @ 100 kHz	-	0.197 (5.00mm)	0.157 Dia (4.00mm)	0.276 (7.00mm)	-	Through Hole
EEA-GA1A220B CAP ALUM 22UF 20% 10V RADIAL Panasonic Electronic Components	4,227	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	GA-A	Active	22 µF	±20%	10 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	30 mA @ 120 Hz	46.5 mA @ 100 kHz	-	0.197 (5.00mm)	0.157 Dia (4.00mm)	0.276 (7.00mm)	-	Through Hole
EEA-GA1C150B CAP ALUM 15UF 20% 16V RADIAL Panasonic Electronic Components	6,187	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	GA-A	Active	15 µF	±20%	16 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	33 mA @ 120 Hz	51.15 mA @ 100 kHz	-	0.197 (5.00mm)	0.157 Dia (4.00mm)	0.276 (7.00mm)	-	Through Hole
EEA-GA1V6R8H CAP ALUM 6.8UF 20% 35V RADIAL Panasonic Electronic Components	2,887	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	GA-A	Active	6.8 µF	±20%	35 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	33 mA @ 120 Hz	51.15 mA @ 100 kHz	-	0.098 (2.50mm)	0.157 Dia (4.00mm)	0.276 (7.00mm)	-	Through Hole

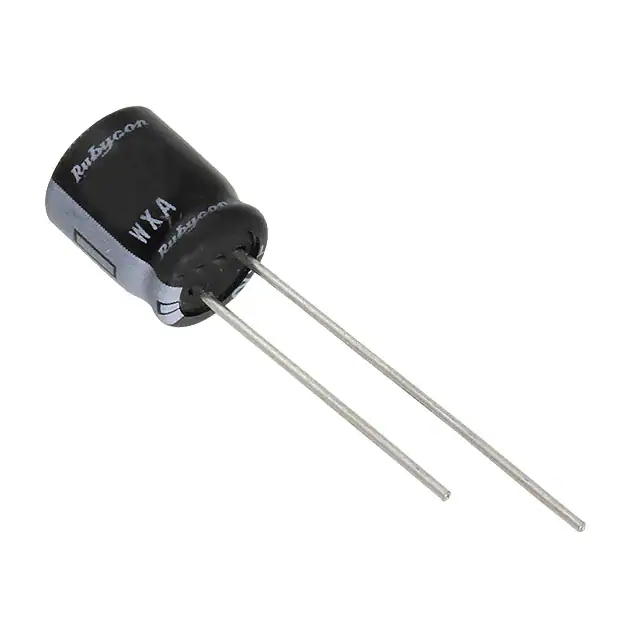

50WXA100MEFCT78X9 CAP ALUM 100UF 20% 50V RADIAL Rubycon	10,204	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WXA	Active	100 µF	±20%	50 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	200 mA @ 120 Hz	240 mA @ 10 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.413 (10.50mm)	-	Through Hole
