Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType

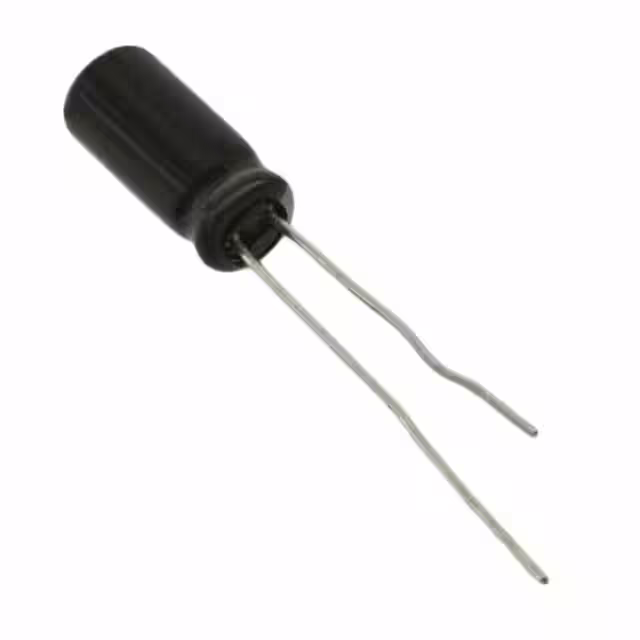

10ZLG100MEFCT15X11 CAP ALUM 100UF 20% 10V RADIAL Rubycon	2,512	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	ZLG	Active	100 µF	±20%	10 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	109.35 mA @ 120 Hz	405 mA @ 100 kHz	150 mOhms	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole

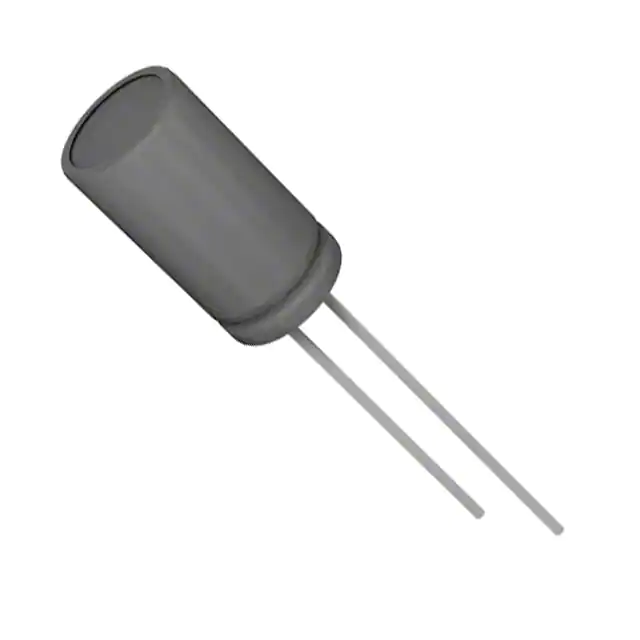

16YXJ220MT16.3X11 CAP ALUM 220UF 20% 16V RADIAL Rubycon	128,426	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	YXJ	Active	220 µF	±20%	16 V	-	7000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	280 mA @ 120 Hz	400 mA @ 100 kHz	220 mOhms	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole

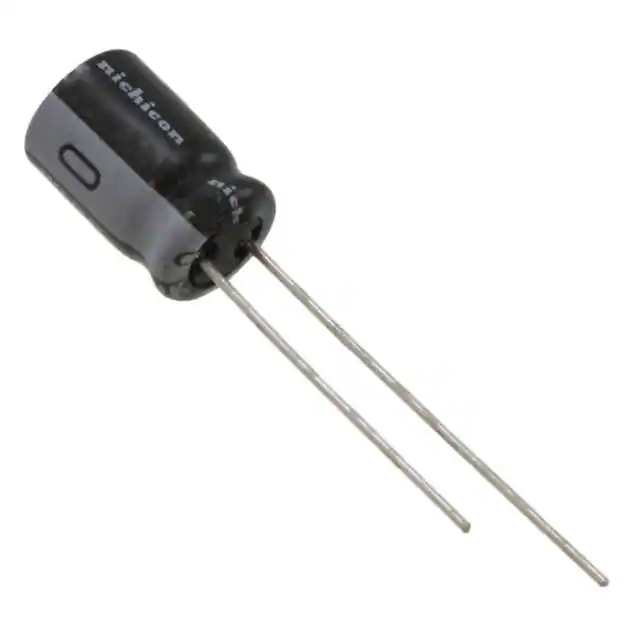

UVK1C471MPD1TD CAP ALUM 470UF 20% 16V RADIAL Nichicon	4,964	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UVK	Not For New Designs	470 µF	±20%	16 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	440 mA @ 120 Hz	660 mA @ 10 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole
860160672009 CAP ALUM 10UF 20% 50V RADIAL Würth Elektronik	15,671	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATLL	Active	10 µF	±20%	50 V	-	4000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	56.4 mA @ 120 Hz	120 mA @ 100 kHz	2.6 Ohms	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole

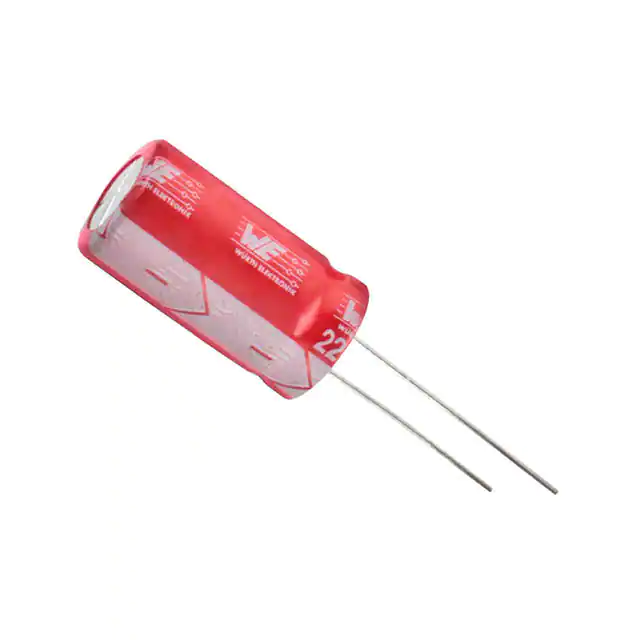

860240572001 CAP ALUM 10UF 20% 35V RADIAL Würth Elektronik	11,184	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-AT1H	Active	10 µF	±20%	35 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	32.5 mA @ 120 Hz	65 mA @ 100 kHz	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
860010773010 CAP ALUM 22UF 20% 63V RADIAL Würth Elektronik	8,296	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATG8	Active	22 µF	±20%	63 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	127 mA @ 120 Hz	194.31 mA @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
860160472001 CAP ALUM 10UF 20% 25V RADIAL Würth Elektronik	5,426	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATLL	Active	10 µF	±20%	25 V	-	4000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	31.02 mA @ 120 Hz	66 mA @ 100 kHz	3.01 Ohms	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
860160372001 CAP ALUM 10UF 20% 16V RADIAL Würth Elektronik	2,535	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATLL	Active	10 µF	±20%	16 V	-	4000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	16.92 mA @ 120 Hz	36 mA @ 100 kHz	3.9 Ohms	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
860160672002 CAP ALUM 1UF 20% 50V RADIAL Würth Elektronik	3,818	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATLL	Active	1 µF	±20%	50 V	-	4000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	11.28 mA @ 120 Hz	24 mA @ 100 kHz	4.31 Ohms	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole

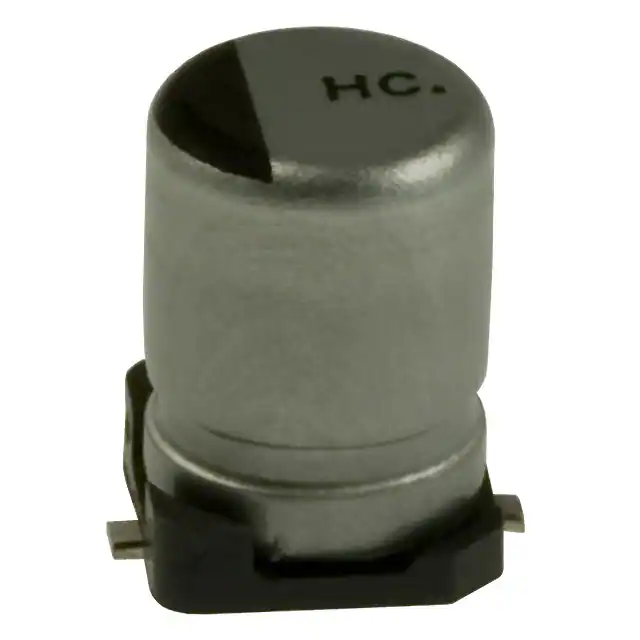

EEE-HC1C100R CAP ALUM 10UF 20% 16V SMD Panasonic Electronic Components	21,874	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	HC	Active	10 µF	±20%	16 V	-	3000 Hrs @ 105°C	-40°C ~ 105°C	Polar	AEC-Q200	Automotive	28 mA @ 120 Hz	47.6 mA @ 10 kHz	-	-	0.157 Dia (4.00mm)	0.228 (5.80mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount
UVZ1E100MDD1TA CAP ALUM 10UF 20% 25V RADIAL Nichicon	13,305	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UVZ	Not For New Designs	10 µF	±20%	25 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	36 mA @ 120 Hz	-	-	0.197 (5.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
UVZ1C101MDD1TA CAP ALUM 100UF 20% 16V RADIAL Nichicon	13,395	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UVZ	Not For New Designs	100 µF	±20%	16 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	115 mA @ 120 Hz	172.5 mA @ 10 kHz	-	0.197 (5.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
UHE1A101MDD1TD CAP ALUM 100UF 20% 10V RADIAL Nichicon	11,676	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UHE	Not For New Designs	100 µF	±20%	10 V	-	4000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	147 mA @ 120 Hz	210 mA @ 100 kHz	580 mOhms	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
UPS1E100MDD1TD CAP ALUM 10UF 20% 25V RADIAL Nichicon	8,429	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UPS	Not For New Designs	10 µF	±20%	25 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	27.2 mA @ 120 Hz	160 mA @ 100 kHz	1.5 Ohms	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
UKT1H100MDD1TD CAP ALUM 10UF 20% 50V RADIAL Nichicon	42,237	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UKT	Not For New Designs	10 µF	±20%	50 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	-	-	Audio	46 mA @ 120 Hz	-	-	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
UKT1H4R7MDD1TD CAP ALUM 4.7UF 20% 50V RADIAL Nichicon	2,914	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UKT	Not For New Designs	4.7 µF	±20%	50 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	-	-	Audio	30 mA @ 120 Hz	60 mA @ 10 kHz	-	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole

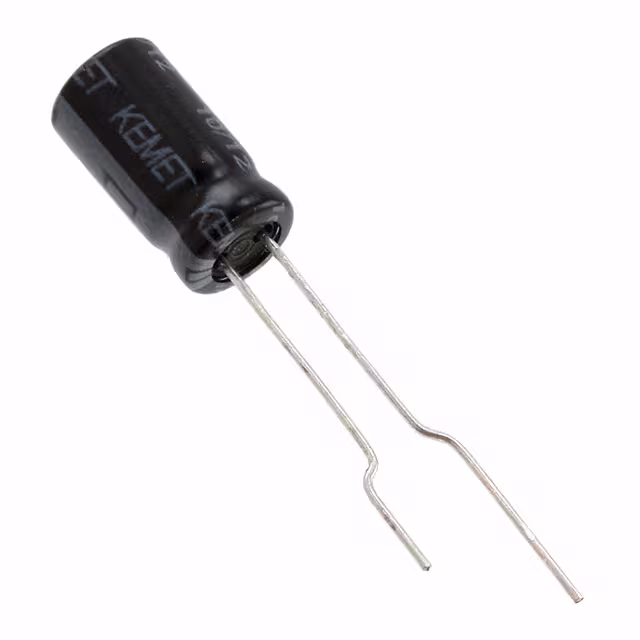

ESW107M016AE3EA CAP ALUM 100UF 20% 16V RADIAL KEMET	5,950	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	ESW	Active	100 µF	±20%	16 V	250mOhm @ 100kHz	3000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	100 mA @ 120 Hz	250 mA @ 100 kHz	250 mOhms	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
UKL1H100MDD1TA CAP ALUM 10UF 20% 50V RADIAL Nichicon	7,413	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UKL	Not For New Designs	10 µF	±20%	50 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	70 mA @ 120 Hz	140 mA @ 10 kHz	-	0.197 (5.00mm)	0.197 Dia (5.00mm)	0.472 (12.00mm)	-	Through Hole
860160372011 CAP ALUM 100UF 20% 16V RADIAL Würth Elektronik	14,285	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATLL	Active	100 µF	±20%	16 V	-	3000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	118.56 mA @ 120 Hz	228 mA @ 100 kHz	1.1 Ohms	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
860021373001 CAP ALUM 0.47UF 20% 400V RADIAL Würth Elektronik	14,455	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATG5	Active	0.47 µF	±20%	400 V	-	2000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	14 mA @ 120 Hz	23.8 mA @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
