Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
UPJ1H100MDD1TACAP ALUM 10UF 20% 50V RADIAL |
4,626 | - |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPJ | Not For New Designs | 10 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 57 mA @ 120 Hz | 115 mA @ 10 kHz | 2 Ohms | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole | |
UKL1C100MDDANATDCAP ALUM 10UF 20% 16V RADIAL |
2,545 | - |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UKL | Not For New Designs | 10 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 55 mA @ 120 Hz | 110 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole | |
UKL1E6R8MDDANATDCAP ALUM 6.8UF 20% 25V RADIAL |
3,588 | - |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UKL | Not For New Designs | 6.8 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 55 mA @ 120 Hz | 110 mA @ 10 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole | |
EEA-GA1E220BCAP ALUM 22UF 20% 25V RADIAL |
6,635 | - |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | GA-A | Active | 22 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 50 mA @ 120 Hz | 77.5 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.197 Dia (5.00mm) | 0.276 (7.00mm) | - | Through Hole | |
EEA-GA1V100HCAP ALUM 10UF 20% 35V RADIAL |
4,785 | - |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | GA-A | Active | 10 µF | ±20% | 35 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 35 mA @ 120 Hz | 54.25 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.276 (7.00mm) | - | Through Hole | |
ULD2A100MED1TDCAP ALUM 10UF 20% 100V RADIAL |
1,149 | - |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | ULD | Not For New Designs | 10 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 63 mA @ 120 Hz | 150 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole | |
EEE-1AA100NRCAP ALUM 10UF 20% 10V SMD |
73,264 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | S | Active | 10 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | AEC-Q200 | Automotive | 25 mA @ 120 Hz | 42.5 mA @ 10 kHz | - | - | 0.157 Dia (4.00mm) | 0.213 (5.40mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount | |
UPW1A330MDD1TDCAP ALUM 33UF 20% 10V RADIAL |
3,269 | - |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPW | Not For New Designs | 33 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 54 mA @ 120 Hz | 180 mA @ 100 kHz | 600 mOhms | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole | |
EMZA160ADA100MD61GCAP ALUM 10UF 20% 16V SMD |
6,644 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MZA | Active | 10 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 36 mA @ 120 Hz | 90 mA @ 100 kHz | 1.35 Ohms | - | 0.157 Dia (4.00mm) | 0.240 (6.10mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount | |

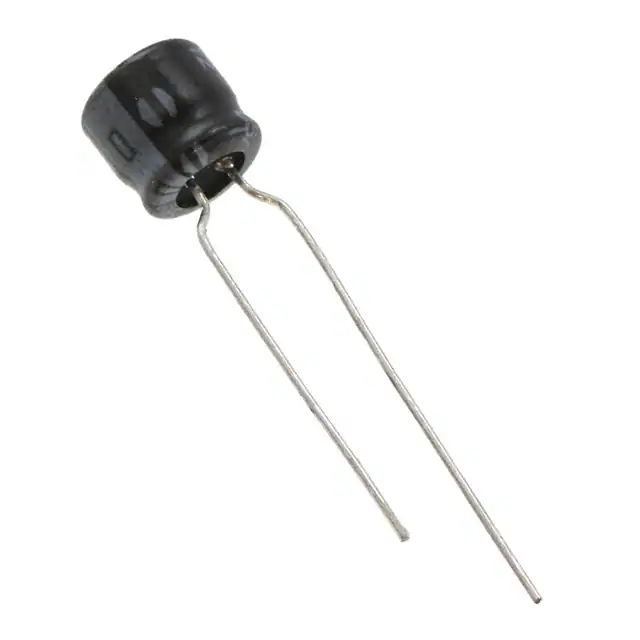

ES5226M050AE1EACAP ALUM 22UF 20% 50V RADIAL |
11,166 | - |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | ES5 | Active | 22 µF | ±20% | 50 V | - | - | -40°C ~ 105°C | Polar | - | General Purpose | 55 mA @ 120 Hz | - | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.197 (5.00mm) | - | Through Hole | |
860160672011CAP ALUM 22UF 20% 50V RADIAL |
13,747 | - |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATLL | Active | 22 µF | ±20% | 50 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 84.24 mA @ 120 Hz | 162 mA @ 100 kHz | 1.6 Ohms | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole | |
860040572002CAP ALUM 47UF 20% 35V RADIAL |
8,699 | - |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATUL | Active | 47 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 187.6 mA @ 120 Hz | 280 mA @ 100 kHz | 450 mOhms | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole | |
860020273010CAP ALUM 330UF 20% 10V RADIAL |
3,635 | - |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATG5 | Active | 330 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 205 mA @ 120 Hz | 282.9 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.248 Dia (6.30mm) | 0.492 (12.50mm) | - | Through Hole | |
860160472003CAP ALUM 22UF 20% 25V RADIAL |
3,717 | - |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATLL | Active | 22 µF | ±20% | 25 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 74.88 mA @ 120 Hz | 144 mA @ 100 kHz | 2.3 Ohms | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole | |
860160672006CAP ALUM 5.6UF 20% 50V RADIAL |
2,337 | - |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | WCAP-ATLL | Active | 5.6 µF | ±20% | 50 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 45.12 mA @ 120 Hz | 96 mA @ 100 kHz | 3.2 Ohms | 0.079 (2.00mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole | |
ECA-1HM101BCAP ALUM 100UF 20% 50V RADIAL |
2,467 | - |
RFQ |
Datasheet |
Tape & Box (TB) | M-A | Active | 100 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 250 mA @ 120 Hz | 425 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.315 Dia (8.00mm) | 0.492 (12.50mm) | - | Through Hole | |
EMZA160ADA220MD61GCAP ALUM 22UF 20% 16V SMD |
4,000 | - |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Alchip™- MZA | Active | 22 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 36 mA @ 120 Hz | 90 mA @ 100 kHz | 1.35 Ohms | - | 0.157 Dia (4.00mm) | 0.240 (6.10mm) | 0.169 L x 0.169 W (4.30mm x 4.30mm) | Surface Mount | |
16ZLH470MEFCT78X11.5CAP ALUM 470UF 20% 16V RADIAL |
285 | - |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | ZLH | Active | 470 µF | ±20% | 16 V | - | 8000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 519.75 mA @ 120 Hz | 945 mA @ 100 kHz | 56 mOhms | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole | |
UPJ2A1R5MDD1TDCAP ALUM 1.5UF 20% 100V RADIAL |
3,642 | - |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPJ | Not For New Designs | 1.5 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 17 mA @ 120 Hz | 35 mA @ 10 kHz | 10 Ohms | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole | |
UPJ2AR68MDD1TDCAP ALUM 0.68UF 20% 100V RADIAL |
2,785 | - |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | UPJ | Not For New Designs | 0.68 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 11 mA @ 120 Hz | 23 mA @ 10 kHz | 23 Ohms | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.472 (12.00mm) | - | Through Hole |
