Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
UKW1H100MDD1TD CAP ALUM 10UF 20% 50V RADIAL Nichicon	5,849	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UKW	Not For New Designs	10 µF	±20%	50 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	65 mA @ 120 Hz	130 mA @ 10 kHz	-	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole

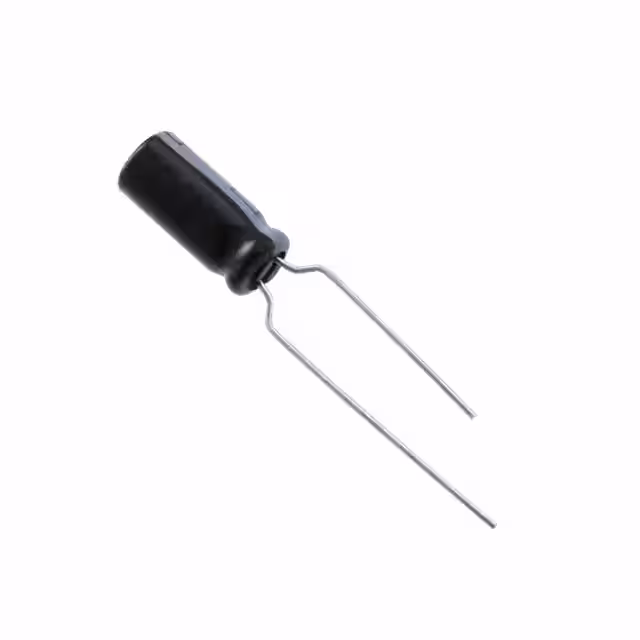

35ZLJ47MTA5X11 CAP ALUM 47UF 20% 35V RADIAL Rubycon	23,563	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	ZLJ	Active	47 µF	±20%	35 V	-	7000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	225 mA @ 120 Hz	450 mA @ 100 kHz	400 mOhms	0.197 (5.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
860020473008 CAP ALUM 100UF 20% 25V RADIAL Würth Elektronik	11,013	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATG5	Active	100 µF	±20%	25 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	145 mA @ 120 Hz	221.85 mA @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
860080472003 CAP ALUM 56UF 20% 25V RADIAL Würth Elektronik	2,000	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATLI	Active	56 µF	±20%	25 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	-	256 mA @ 100 kHz	310 mOhms	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole

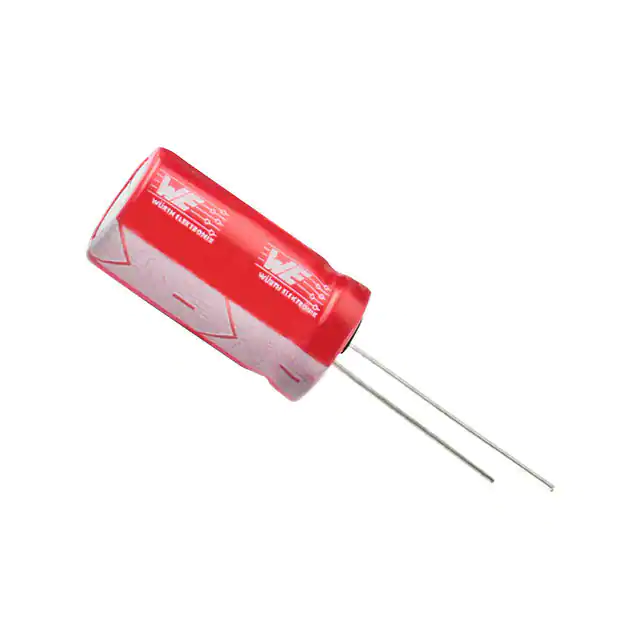

860160672003 CAP ALUM 2.2UF 20% 50V RADIAL Würth Elektronik	2,354	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATLL	Active	2.2 µF	±20%	50 V	-	4000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	16.92 mA @ 120 Hz	36 mA @ 100 kHz	3.6 Ohms	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
UMV1HR22MFD1TP CAP ALUM 0.22UF 20% 50V RADIAL Nichicon	2,427	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UMV	Not For New Designs	0.22 µF	±20%	50 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	2.6 mA @ 120 Hz	3.9 mA @ 10 kHz	-	0.059 (1.50mm)	0.157 Dia (4.00mm)	0.236 (6.00mm)	-	Through Hole
UWX1H220MCL1GB CAP ALUM 22UF 20% 50V SMD Nichicon	2,604	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	UWX	Not For New Designs	22 µF	±20%	50 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	52 mA @ 120 Hz	78 mA @ 10 kHz	-	-	0.315 Dia (8.00mm)	0.213 (5.40mm)	0.327 L x 0.327 W (8.30mm x 8.30mm)	Surface Mount
35ML100MEFCT78X7.5 CAP ALUM 100UF 20% 35V RADIAL Rubycon	4,215	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	ML	Active	100 µF	±20%	35 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	125 mA @ 120 Hz	150 mA @ 10 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.335 (8.50mm)	-	Through Hole
EMVA160ADA220MD55G CAP ALUM 22UF 20% 16V SMD United Chemi-Con	3,122	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Alchip™- MVA	Active	22 µF	±20%	16 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	26 mA @ 120 Hz	28.08 mA @ 100 kHz	-	-	0.157 Dia (4.00mm)	0.205 (5.20mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount
EMVA350ADA100MD55G CAP ALUM 10UF 20% 35V SMD United Chemi-Con	1,040	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Alchip™- MVA	Active	10 µF	±20%	35 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	24 mA @ 120 Hz	36 mA @ 100 kHz	-	-	0.157 Dia (4.00mm)	0.205 (5.20mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount
EMVA6R3ADA470MD55G CAP ALUM 47UF 20% 6.3V SMD United Chemi-Con	770	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	Alchip™- MVA	Active	47 µF	±20%	6.3 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	33 mA @ 120 Hz	35.64 mA @ 100 kHz	-	-	0.157 Dia (4.00mm)	0.205 (5.20mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount

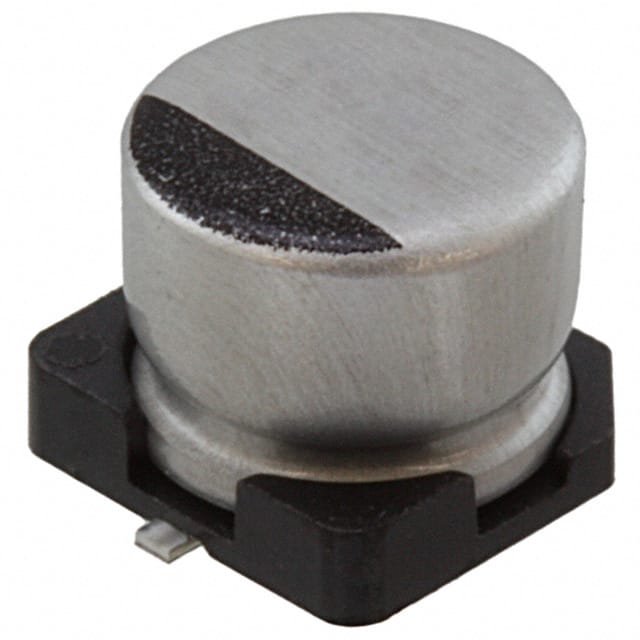

25SEV47M6.3X5.5 CAP ALUM 47UF 20% 25V SMD Rubycon	38,661	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SEV	Active	47 µF	±20%	25 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	AEC-Q200	Automotive	60 mA @ 120 Hz	90 mA @ 10 kHz	-	-	0.248 Dia (6.30mm)	0.217 (5.50mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount
50YXF100MEFCT78X11.5 CAP ALUM 100UF 20% 50V RADIAL Rubycon	27,586	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	YXF	Active	100 µF	±20%	50 V	-	7000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	280 mA @ 120 Hz	400 mA @ 100 kHz	250 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole
UPJ1H010MDD1TD CAP ALUM 1UF 20% 50V RADIAL Nichicon	2,900	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UPJ	Not For New Designs	1 µF	±20%	50 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	18 mA @ 120 Hz	36 mA @ 10 kHz	14 Ohms	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.472 (12.00mm)	-	Through Hole
ECA-1EHG470I CAP ALUM 47UF 20% 25V RADIAL Panasonic Electronic Components	17,280	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	NHG-A	Active	47 µF	±20%	25 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	91 mA @ 120 Hz	136.5 mA @ 100 kHz	-	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.472 (12.00mm)	-	Through Hole
UFG2A2R2MDM1TD CAP ALUM 2.2UF 20% 100V RADIAL Nichicon	3,462	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UFG	Not For New Designs	2.2 µF	±20%	100 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	22 mA @ 120 Hz	44 mA @ 10 kHz	-	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
35YXF100MEFCT78X11.5 CAP ALUM 100UF 20% 35V RADIAL Rubycon	45,758	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	YXF	Active	100 µF	±20%	35 V	-	7000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	280 mA @ 120 Hz	400 mA @ 100 kHz	250 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole
ECA-1HHG4R7I CAP ALUM 4.7UF 20% 50V RADIAL Panasonic Electronic Components	3,812	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	NHG-A	Active	4.7 µF	±20%	50 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	26 mA @ 120 Hz	52 mA @ 100 kHz	-	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.472 (12.00mm)	-	Through Hole
UPS1HR47MDD1TD CAP ALUM 0.47UF 20% 50V RADIAL Nichicon	11,513	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UPS	Not For New Designs	0.47 µF	±20%	50 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	4.25 mA @ 120 Hz	25 mA @ 100 kHz	7.5 Ohms	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
UPS2A010MDD1TD CAP ALUM 1UF 20% 100V RADIAL Nichicon	3,087	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UPS	Not For New Designs	1 µF	±20%	100 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	5.1 mA @ 120 Hz	30 mA @ 100 kHz	20 Ohms	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
