Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
UVR1H220MDD1TD CAP ALUM 22UF 20% 50V RADIAL Nichicon	17,928	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UVR	Not For New Designs	22 µF	±20%	50 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	95 mA @ 120 Hz	190 mA @ 10 kHz	-	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
UVZ1H010MDD1TA CAP ALUM 1UF 20% 50V RADIAL Nichicon	7,773	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UVZ	Not For New Designs	1 µF	±20%	50 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	13 mA @ 120 Hz	26 mA @ 10 kHz	-	0.197 (5.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole

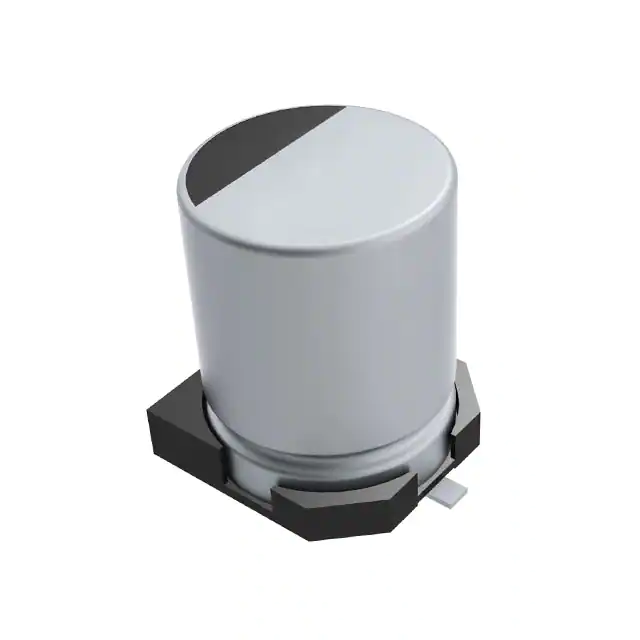

EDH106M016A9BAA CAP ALUM 10UF 20% 16V SMD KEMET	63,350	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EDH	Active	10 µF	±20%	16 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	28 mA @ 120 Hz	35 mA @ 10 kHz	-	-	0.157 Dia (4.00mm)	0.222 (5.65mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount

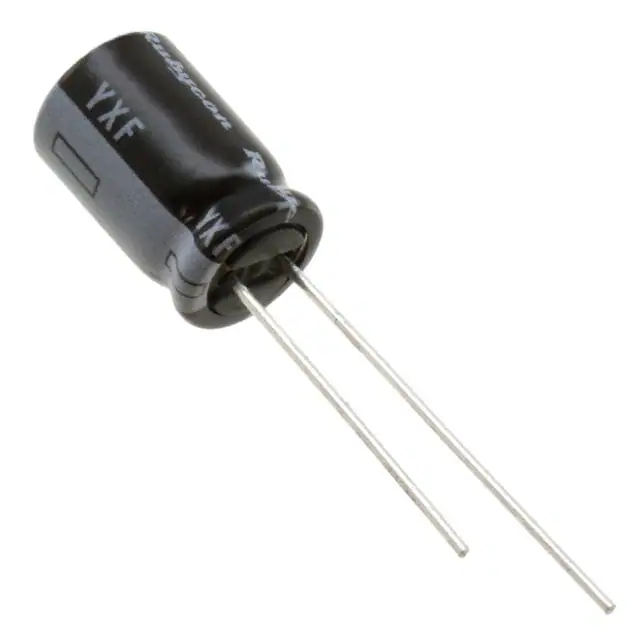

25YXF220MEFCT78X11.5 CAP ALUM 220UF 20% 25V RADIAL Rubycon	11,609	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	YXF	Active	220 µF	±20%	25 V	-	7000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	280 mA @ 120 Hz	400 mA @ 100 kHz	250 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole
UVR1C220MDD1TA CAP ALUM 22UF 20% 16V RADIAL Nichicon	4,812	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UVR	Not For New Designs	22 µF	±20%	16 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	75 mA @ 120 Hz	150 mA @ 10 kHz	-	0.197 (5.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
UVR1J100MDD1TA CAP ALUM 10UF 20% 63V RADIAL Nichicon	3,999	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UVR	Not For New Designs	10 µF	±20%	63 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	65 mA @ 120 Hz	130 mA @ 10 kHz	-	0.197 (5.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole

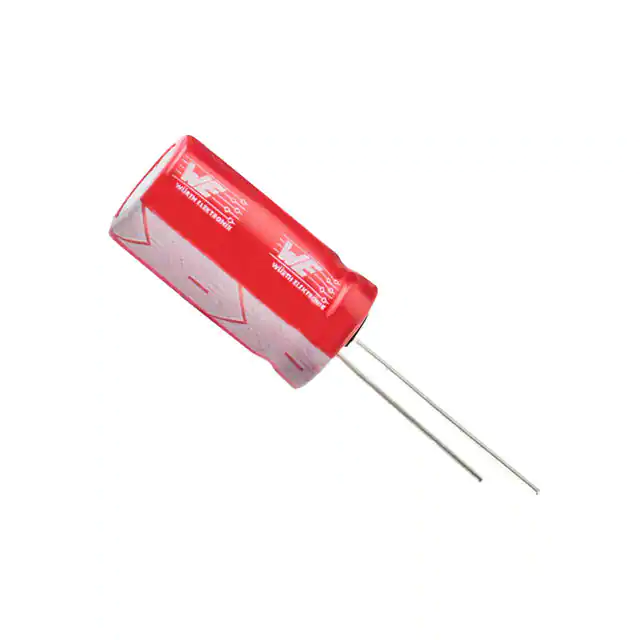

860080772001 CAP ALUM 10UF 20% 63V RADIAL Würth Elektronik	39,709	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATLI	Active	10 µF	±20%	63 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	-	135 mA @ 100 kHz	950 mOhms	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
ECE-A1VKS4R7I CAP ALUM 4.7UF 20% 35V RADIAL Panasonic Electronic Components	19,453	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	KS	Active	4.7 µF	±20%	35 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	22 mA @ 120 Hz	37.4 mA @ 100 kHz	-	0.098 (2.50mm)	0.157 Dia (4.00mm)	0.236 (6.00mm)	-	Through Hole
ECE-A1CKS100I CAP ALUM 10UF 20% 16V RADIAL Panasonic Electronic Components	7,998	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	KS	Active	10 µF	±20%	16 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	28 mA @ 120 Hz	47.6 mA @ 100 kHz	-	0.098 (2.50mm)	0.157 Dia (4.00mm)	0.236 (6.00mm)	-	Through Hole
860020272007 CAP ALUM 150UF 20% 10V RADIAL Würth Elektronik	7,848	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATG5	Active	150 µF	±20%	10 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	120 mA @ 120 Hz	165.6 mA @ 100 kHz	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
860020473007 CAP ALUM 68UF 20% 25V RADIAL Würth Elektronik	5,550	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATG5	Active	68 µF	±20%	25 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	120 mA @ 120 Hz	183.6 mA @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
860020772008 CAP ALUM 4.7UF 20% 63V RADIAL Würth Elektronik	4,185	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATG5	Active	4.7 µF	±20%	63 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	32 mA @ 120 Hz	54.4 mA @ 100 kHz	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole

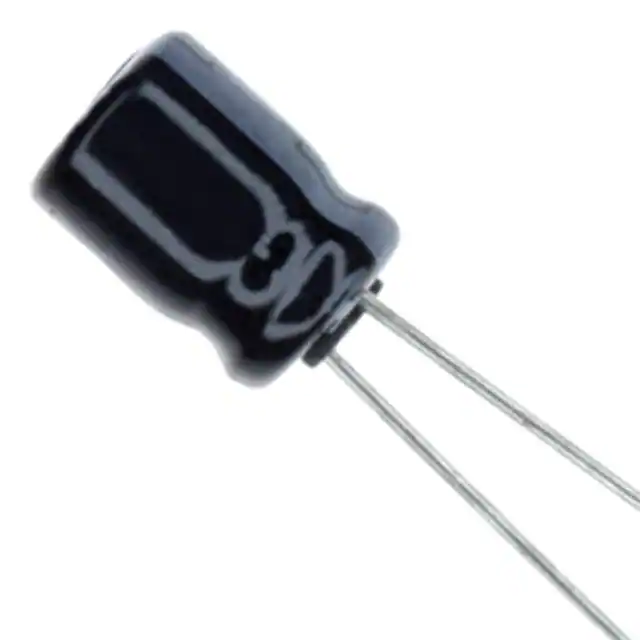

ECE-A0JKA101I CAP ALUM 100UF 20% 6.3V RADIAL Panasonic Electronic Components	4,310	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	KA	Active	100 µF	±20%	6.3 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	71 mA @ 120 Hz	120.7 mA @ 10 kHz	-	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.315 (8.00mm)	-	Through Hole
860020772006 CAP ALUM 2.2UF 20% 63V RADIAL Würth Elektronik	2,767	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATG5	Active	2.2 µF	±20%	63 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	20 mA @ 120 Hz	34 mA @ 100 kHz	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
UVR1C470MDD1TA CAP ALUM 47UF 20% 16V RADIAL Nichicon	11,087	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UVR	Not For New Designs	47 µF	±20%	16 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	110 mA @ 120 Hz	220 mA @ 10 kHz	-	0.197 (5.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole

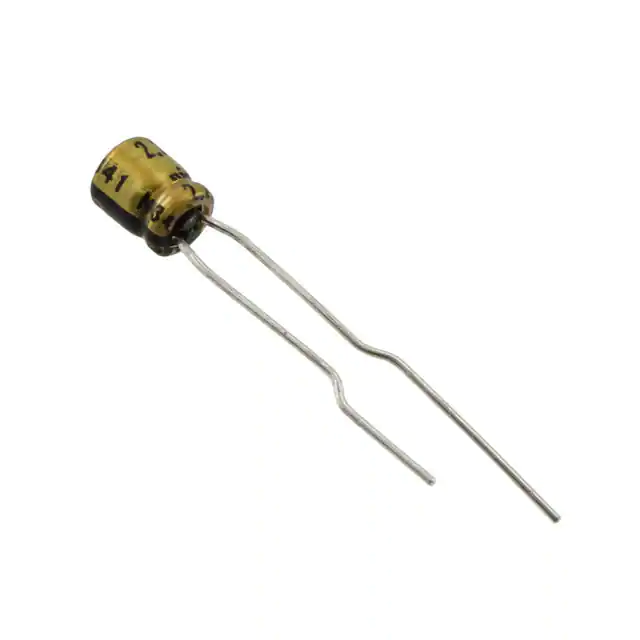

UMW0G470MDD1TP CAP ALUM 47UF 20% 4V RADIAL Nichicon	3,445	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UMW	Active	47 µF	±20%	4 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	33 mA @ 120 Hz	-	-	0.059 (1.50mm)	0.157 Dia (4.00mm)	0.236 (6.00mm)	-	Through Hole

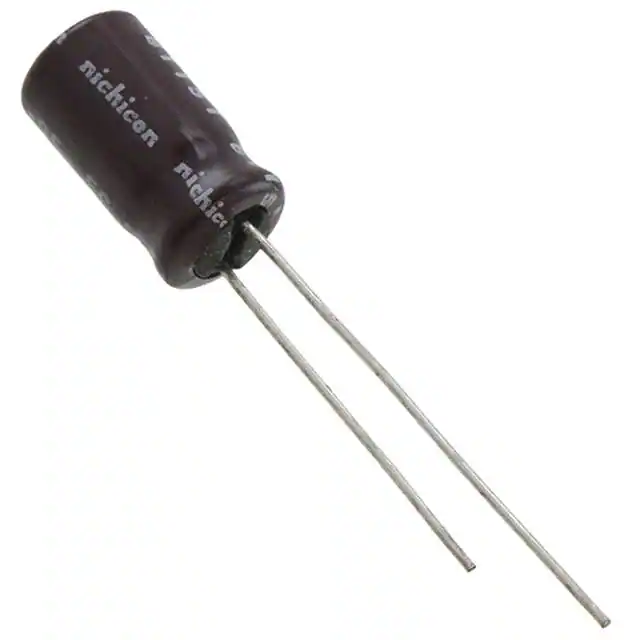

UPM1E820MED1TD CAP ALUM 82UF 20% 25V RADIAL Nichicon	2,753	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UPM	Not For New Designs	82 µF	±20%	25 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	180 mA @ 120 Hz	285 mA @ 10 kHz	300 mOhms	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole

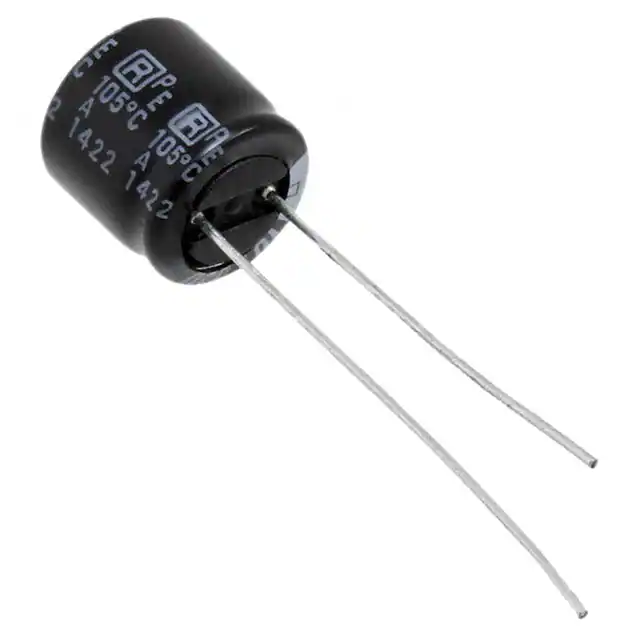

16ML220MEFCT78X7.5 CAP ALUM 220UF 20% 16V RADIAL Rubycon	13,860	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	ML	Active	220 µF	±20%	16 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	170 mA @ 120 Hz	204 mA @ 10 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.335 (8.50mm)	-	Through Hole
ECA-2AM100B CAP ALUM 10UF 20% 100V RADIAL Panasonic Electronic Components	23,481	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	M-A	Active	10 µF	±20%	100 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	70 mA @ 120 Hz	119 mA @ 10 kHz	-	0.197 (5.00mm)	0.197 Dia (5.00mm)	0.472 (12.00mm)	-	Through Hole

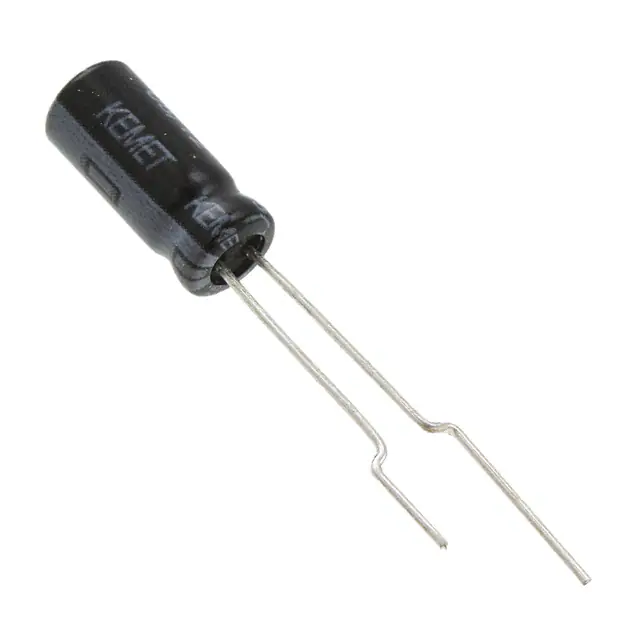

ESY476M025AC3EA CAP ALUM 47UF 20% 25V RADIAL KEMET	19,186	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	ESY	Active	47 µF	±20%	25 V	300mOhm @ 100kHz	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	175 mA @ 120 Hz	250 mA @ 100 kHz	300 mOhms	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
