Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
860080473006 CAP ALUM 100UF 20% 25V RADIAL Würth Elektronik	21,005	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATLI	Active	100 µF	±20%	25 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	-	410 mA @ 100 kHz	150 mOhms	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
860010373010 CAP ALUM 220UF 20% 16V RADIAL Würth Elektronik	10,795	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATG8	Active	220 µF	±20%	16 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	308 mA @ 120 Hz	425.04 mA @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
860010773011 CAP ALUM 33UF 20% 63V RADIAL Würth Elektronik	5,285	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATG8	Active	33 µF	±20%	63 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	149 mA @ 120 Hz	227.97 mA @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
860020473010 CAP ALUM 150UF 20% 25V RADIAL Würth Elektronik	3,480	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATG5	Active	150 µF	±20%	25 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	180 mA @ 120 Hz	248.4 mA @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
860160472005 CAP ALUM 33UF 20% 25V RADIAL Würth Elektronik	3,338	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATLL	Active	33 µF	±20%	25 V	-	4000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	90.48 mA @ 120 Hz	174 mA @ 100 kHz	1.72 Ohms	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
UWT1H220MCL1GB CAP ALUM 22UF 20% 50V SMD Nichicon	477	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	UWT	Active	22 µF	±20%	50 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	51 mA @ 120 Hz	76.5 mA @ 10 kHz	-	-	0.315 Dia (8.00mm)	0.213 (5.40mm)	0.327 L x 0.327 W (8.30mm x 8.30mm)	Surface Mount

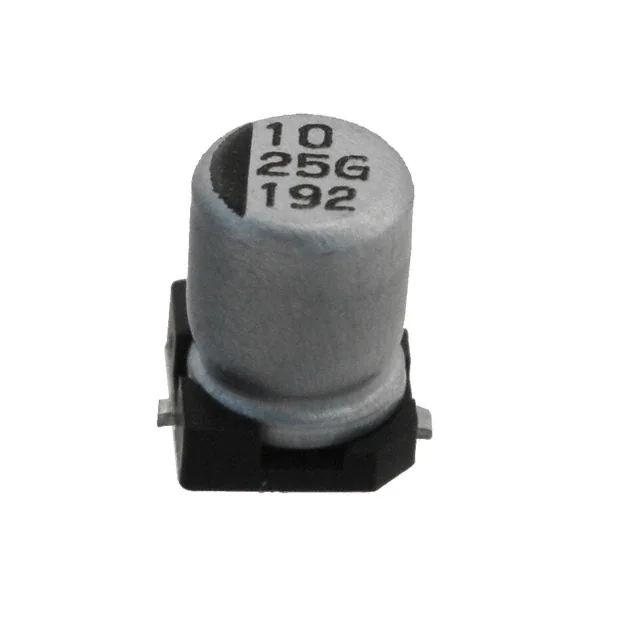

EDK106M025A9BAA CAP ALUM 10UF 20% 25V SMD KEMET	11,141	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EDK	Active	10 µF	±20%	25 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	24 mA @ 120 Hz	30 mA @ 10 kHz	-	-	0.157 Dia (4.00mm)	0.217 (5.50mm)	-	Surface Mount
EDK105M050A9BAA CAP ALUM 1UF 20% 50V SMD KEMET	8,531	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EDK	Active	1 µF	±20%	50 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	10 mA @ 120 Hz	12.5 mA @ 10 kHz	-	-	0.157 Dia (4.00mm)	0.217 (5.50mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount

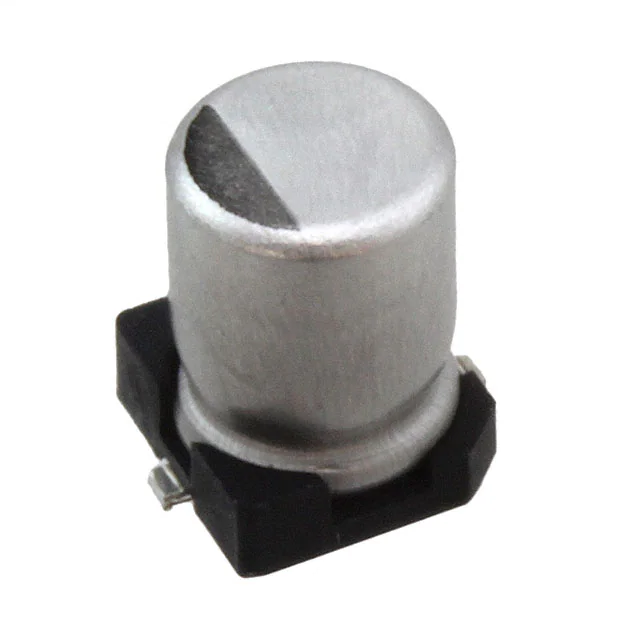

EDK226M016A9BAA CAP ALUM 22UF 20% 16V SMD KEMET	5,111	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EDK	Active	22 µF	±20%	16 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	28 mA @ 120 Hz	35 mA @ 10 kHz	-	-	0.157 Dia (4.00mm)	0.222 (5.65mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount
35SGV22M6.3X6.1 CAP ALUM 22UF 20% 35V SMD Rubycon	2,878	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SGV	Active	22 µF	±20%	35 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	55 mA @ 120 Hz	82.5 mA @ 10 kHz	-	-	0.248 Dia (6.30mm)	0.240 (6.10mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount

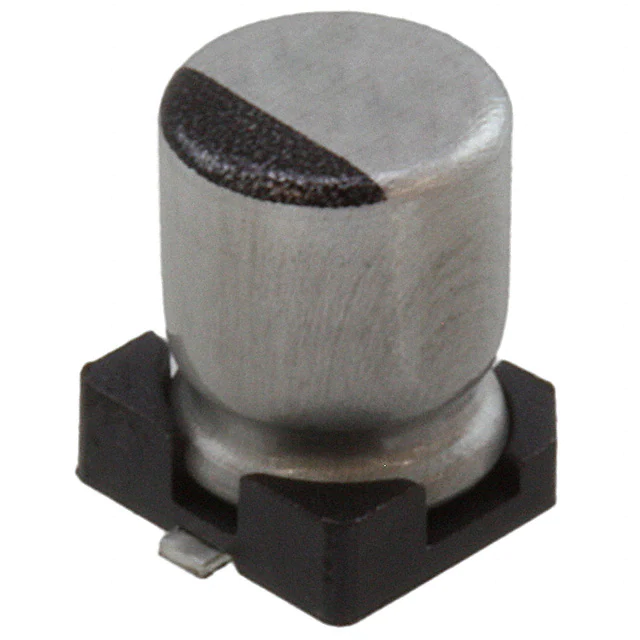

50SEV1M4X5.5 CAP ALUM 1UF 20% 50V SMD Rubycon	826	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SEV	Active	1 µF	±20%	50 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	AEC-Q200	Automotive	8.4 mA @ 120 Hz	12.6 mA @ 10 kHz	-	-	0.157 Dia (4.00mm)	0.217 (5.50mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount
UKL1H100KDDANATD CAP ALUM 10UF 20% 50V RADIAL Nichicon	4,404	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UKL	Not For New Designs	10 µF	±20%	50 V	-	1000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	70 mA @ 120 Hz	140 mA @ 10 kHz	-	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.472 (12.00mm)	-	Through Hole
25SEV10M4X5.5 CAP ALUM 10UF 20% 25V SMD Rubycon	2,253	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SEV	Active	10 µF	±20%	25 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	AEC-Q200	Automotive	25 mA @ 120 Hz	37.5 mA @ 10 kHz	-	-	0.157 Dia (4.00mm)	0.217 (5.50mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount
ECE-A1VKS220I CAP ALUM 22UF 20% 35V RADIAL Panasonic Electronic Components	2,246	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	KS	Active	22 µF	±20%	35 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	60 mA @ 120 Hz	102 mA @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.236 (6.00mm)	-	Through Hole
UKW1V470MDD1TD CAP ALUM 47UF 20% 35V RADIAL Nichicon	5,124	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UKW	Not For New Designs	47 µF	±20%	35 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	120 mA @ 120 Hz	240 mA @ 10 kHz	-	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole

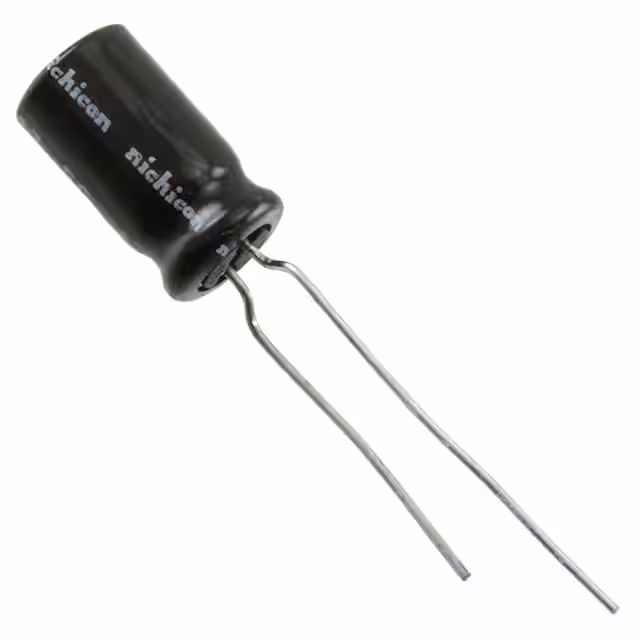

UVZ1H470MED1TA CAP ALUM 47UF 20% 50V RADIAL Nichicon	4,775	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UVZ	Not For New Designs	47 µF	±20%	50 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	115 mA @ 120 Hz	230 mA @ 10 kHz	-	0.197 (5.00mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
UPJ1C221MPD1TD CAP ALUM 220UF 20% 16V RADIAL Nichicon	3,895	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UPJ	Not For New Designs	220 µF	±20%	16 V	-	3000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	335 mA @ 120 Hz	-	260 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole
860020673013 CAP ALUM 47UF 20% 50V RADIAL Würth Elektronik	17,166	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATG5	Active	47 µF	±20%	50 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	115 mA @ 120 Hz	175.95 mA @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
865060640001 CAP ALUM 1UF 20% 50V SMD Würth Elektronik	4,689	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WCAP-ASLL	Active	1 µF	±20%	50 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	35.4 mA @ 120 Hz	60 mA @ 100 kHz	2.9 Ohms	-	0.157 Dia (4.00mm)	0.217 (5.50mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount
860021373002 CAP ALUM 1UF 20% 400V RADIAL Würth Elektronik	4,489	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATG5	Active	1 µF	±20%	400 V	-	2000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	17 mA @ 120 Hz	28.9 mA @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
