Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType

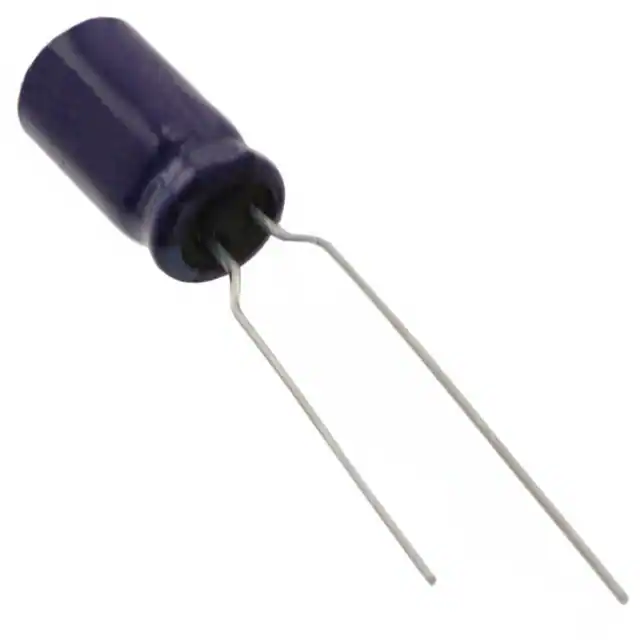

ECA-1JM470I CAP ALUM 47UF 20% 63V RADIAL Panasonic Electronic Components	6,285	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	M-A	Active	47 µF	±20%	63 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	160 mA @ 120 Hz	272 mA @ 10 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.480 (12.20mm)	-	Through Hole

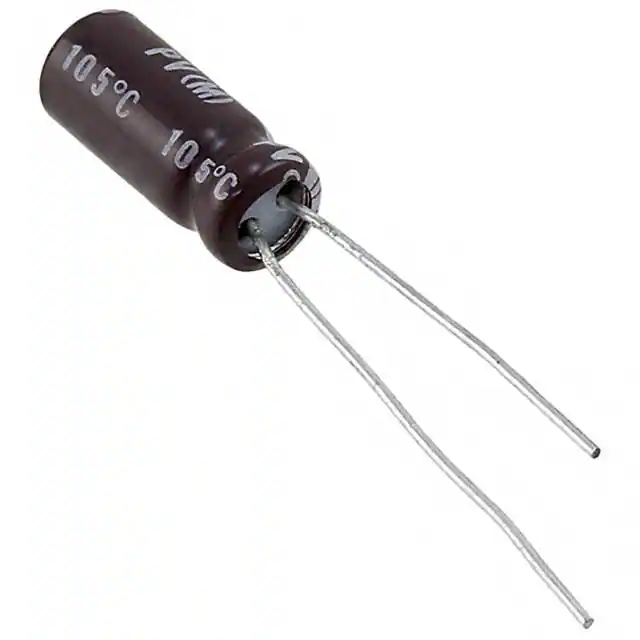

UPV1H010MFD1TD CAP ALUM 1UF 20% 50V RADIAL Nichicon	2,353	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UPV	Not For New Designs	1 µF	±20%	50 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	-	-	General Purpose	-	-	15 Ohms	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
50ZLH100MEFCT78X11.5 CAP ALUM 100UF 20% 50V RADIAL Rubycon	10,149	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	ZLH	Active	100 µF	±20%	50 V	-	8000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	362 mA @ 120 Hz	-	74 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole
UWJ1H010MCL1GB CAP ALUM 1UF 20% 50V SMD Nichicon	3,516	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	UWJ	Not For New Designs	1 µF	±20%	50 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	8.4 mA @ 120 Hz	12.6 mA @ 10 kHz	-	-	0.157 Dia (4.00mm)	0.217 (5.50mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount
UPS1E470MDD1TD CAP ALUM 47UF 20% 25V RADIAL Nichicon	14,778	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UPS	Not For New Designs	47 µF	±20%	25 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	27.2 mA @ 120 Hz	160 mA @ 100 kHz	1.5 Ohms	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
UUD1E100MCL1GS CAP ALUM 10UF 20% 25V SMD Nichicon	2,524	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	UUD	Active	10 µF	±20%	25 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	40 mA @ 120 Hz	-	1.8 Ohms	-	0.157 Dia (4.00mm)	0.228 (5.80mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount

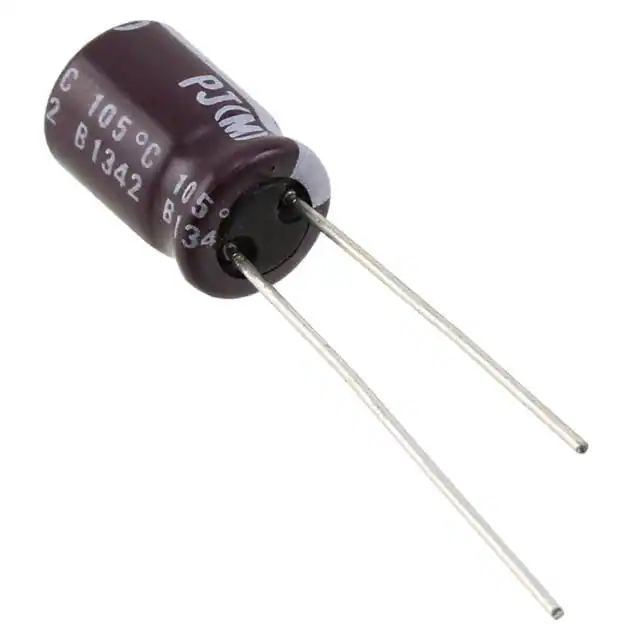

UPJ1V101MPD1TD CAP ALUM 100UF 20% 35V RADIAL Nichicon	2,420	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UPJ	Not For New Designs	100 µF	±20%	35 V	-	3000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	305 mA @ 120 Hz	460 mA @ 10 kHz	260 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole
RSRC2101M1ED07119T CAP ALUM 100UF 20% 16V RADIAL Elna America	9,622	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	RC2	Active	100 µF	±20%	16 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	120 mA @ 120 Hz	144 mA @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.276 (7.00mm)	-	Through Hole
UUD1V4R7MCL1GS CAP ALUM 4.7UF 20% 35V SMD Nichicon	257	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	UUD	Active	4.7 µF	±20%	35 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	40 mA @ 120 Hz	-	1.8 Ohms	-	0.157 Dia (4.00mm)	0.228 (5.80mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount
UKL1C100KDD1TD CAP ALUM 10UF 10% 16V RADIAL Nichicon	5,783	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UKL	Not For New Designs	10 µF	±10%	16 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	55 mA @ 120 Hz	110 mA @ 10 kHz	-	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.472 (12.00mm)	-	Through Hole
UKL1H2R2KDDANATD CAP ALUM 2.2UF 10% 50V RADIAL Nichicon	7,917	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UKL	Not For New Designs	2.2 µF	±10%	50 V	-	1000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	23 mA @ 120 Hz	46 mA @ 10 kHz	-	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.472 (12.00mm)	-	Through Hole
860080373005 CAP ALUM 100UF 20% 16V RADIAL Würth Elektronik	6,095	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATLI	Active	100 µF	±20%	16 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	-	360 mA @ 100 kHz	250 mOhms	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole

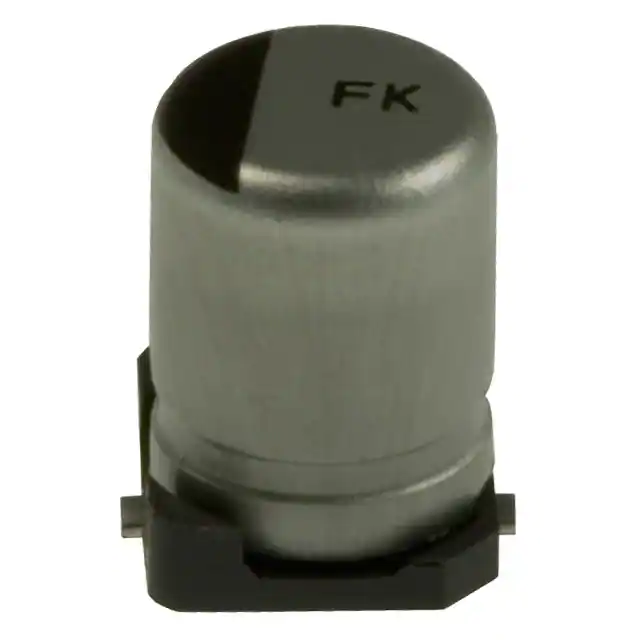

EEE-FK0J220R CAP ALUM 22UF 20% 6.3V SMD Panasonic Electronic Components	19,342	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	FK	Active	22 µF	±20%	6.3 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	67.5 mA @ 120 Hz	90 mA @ 100 kHz	1.35 Ohms	-	0.157 Dia (4.00mm)	0.240 (6.10mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount

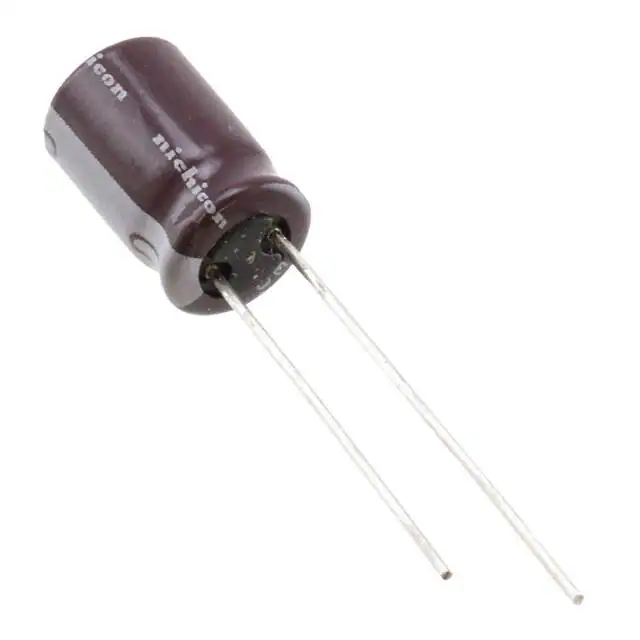

UPS2A220MPD1TD CAP ALUM 22UF 20% 100V RADIAL Nichicon	4,714	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UPS	Not For New Designs	22 µF	±20%	100 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	39.1 mA @ 120 Hz	230 mA @ 100 kHz	680 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole
UPJ2A2R2MDD1TD CAP ALUM 2.2UF 20% 100V RADIAL Nichicon	5,073	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UPJ	Not For New Designs	2.2 µF	±20%	100 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	21 mA @ 120 Hz	43 mA @ 10 kHz	6.6 Ohms	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.472 (12.00mm)	-	Through Hole

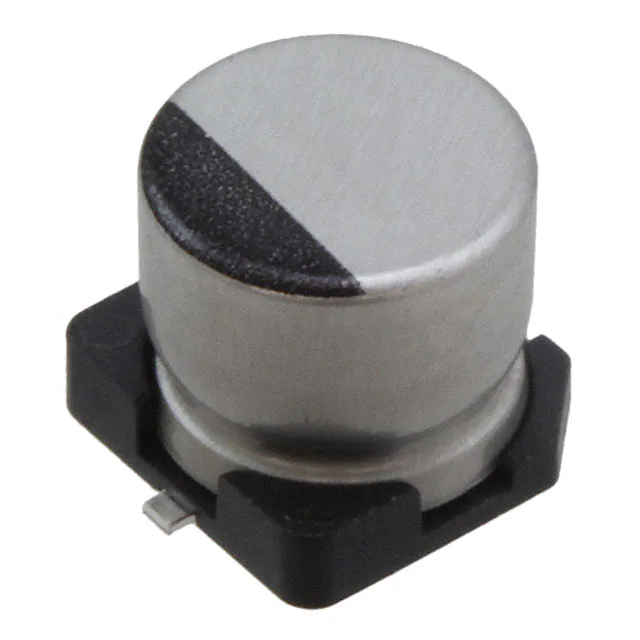

50SGV10M6.3X6.1 CAP ALUM 10UF 20% 50V SMD Rubycon	3,169	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SGV	Active	10 µF	±20%	50 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	35 mA @ 120 Hz	-	-	-	0.248 Dia (6.30mm)	0.240 (6.10mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount

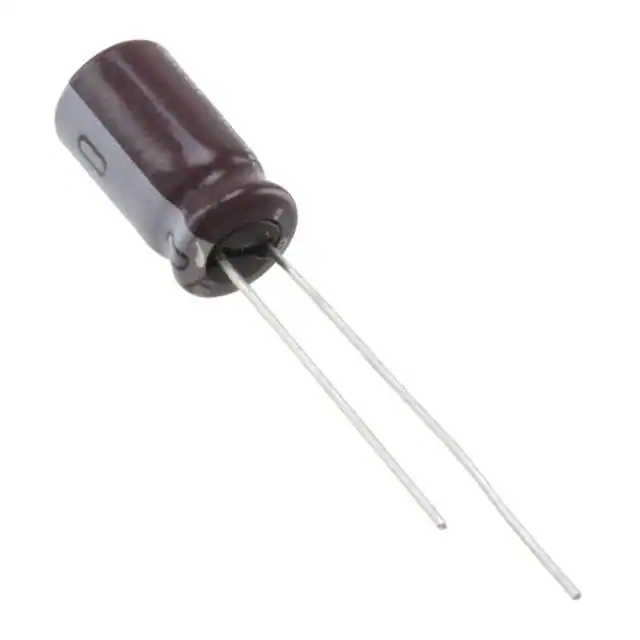

UPS2CR47MED1TD CAP ALUM 0.47UF 20% 160V RADIAL Nichicon	4,957	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UPS	Not For New Designs	0.47 µF	±20%	160 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	12 mA @ 120 Hz	19.2 mA @ 10 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
UPS2C010MED1TD CAP ALUM 1UF 20% 160V RADIAL Nichicon	2,800	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UPS	Not For New Designs	1 µF	±20%	160 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	17 mA @ 120 Hz	27.2 mA @ 10 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole

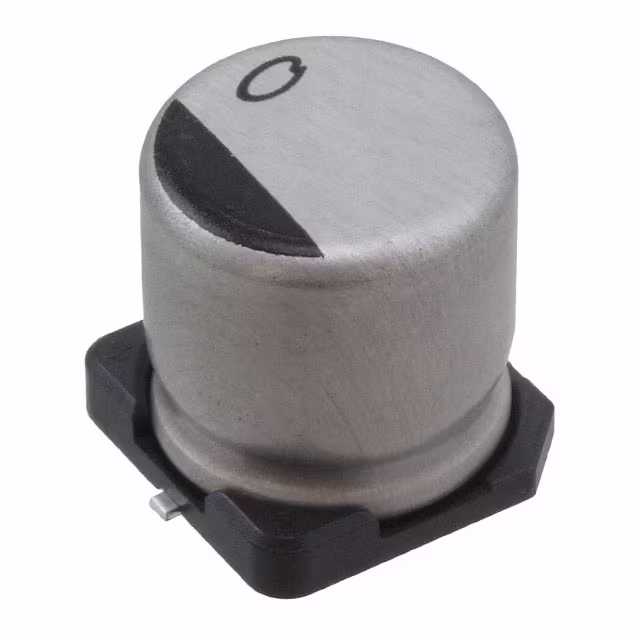

16SGV10M4X6.1 CAP ALUM 10UF 20% 16V SMD Rubycon	2,926	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SGV	Active	10 µF	±20%	16 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	28 mA @ 120 Hz	42 mA @ 10 kHz	-	-	0.157 Dia (4.00mm)	0.240 (6.10mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount
860020373010 CAP ALUM 220UF 20% 16V RADIAL Würth Elektronik	85,593	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATG5	Active	220 µF	±20%	16 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	215 mA @ 120 Hz	296.7 mA @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
