Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType

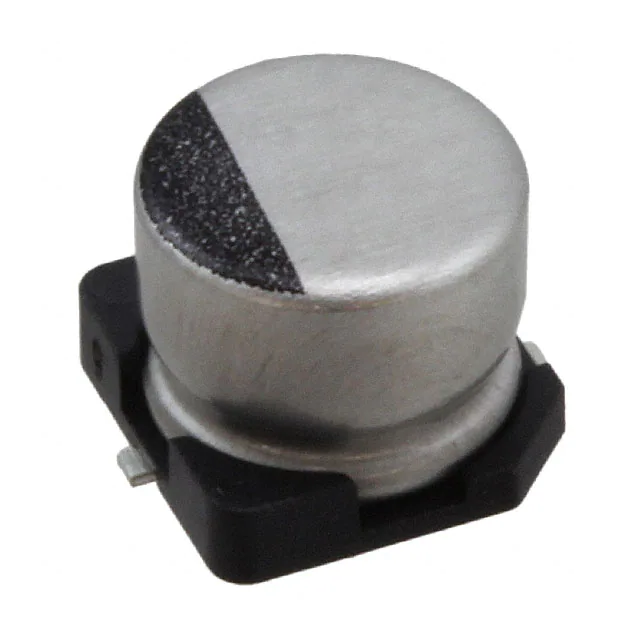

16SKV100M6.3X5.5 CAP ALUM 100UF 20% 16V SMD Rubycon	2,050	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SKV	Active	100 µF	±20%	16 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	65 mA @ 120 Hz	78 mA @ 10 kHz	-	-	0.248 Dia (6.30mm)	0.217 (5.50mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount
UPV1H220MGD1TD CAP ALUM 22UF 20% 50V RADIAL Nichicon	3,096	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UPV	Not For New Designs	22 µF	±20%	50 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	-	-	910 mOhms	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
UES1H2R2MDM1TD CAP ALUM 2.2UF 20% 50V RADIAL Nichicon	1,743	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UES	Not For New Designs	2.2 µF	±20%	50 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Bi-Polar	-	Audio	-	-	-	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
UUA1C100MCL1GS CAP ALUM 10UF 20% 16V SMD Nichicon	32,091	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	UUA	Active	10 µF	±20%	16 V	-	3000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	18 mA @ 120 Hz	27 mA @ 10 kHz	-	-	0.157 Dia (4.00mm)	0.240 (6.10mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount

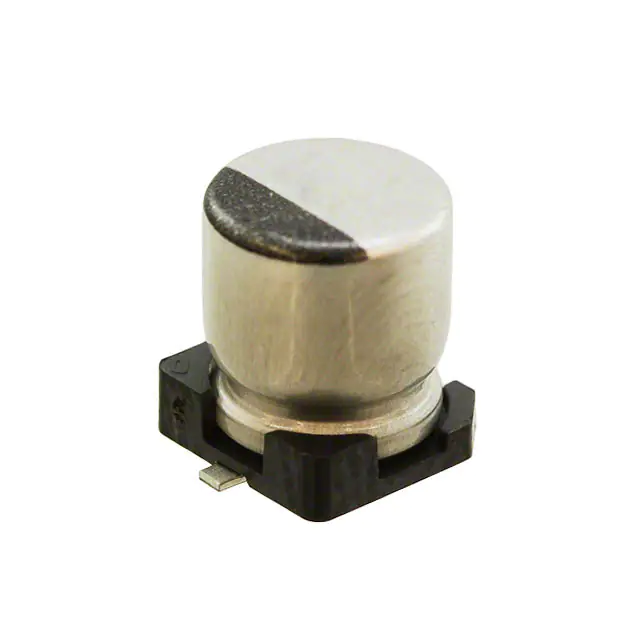

16TZV22M4X6.1 CAP ALUM 22UF 20% 16V SMD Rubycon	4,430	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	TZV	Active	22 µF	±20%	16 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	28.8 mA @ 120 Hz	90 mA @ 100 kHz	1.35 Ohms	-	0.157 Dia (4.00mm)	0.240 (6.10mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount
UUD1A151MCL1GS CAP ALUM 150UF 20% 10V SMD Nichicon	2,521	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	UUD	Active	150 µF	±20%	10 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	115 mA @ 120 Hz	230 mA @ 100 kHz	440 mOhms	-	0.248 Dia (6.30mm)	0.228 (5.80mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount
860020773013 CAP ALUM 47UF 20% 63V RADIAL Würth Elektronik	18,372	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATG5	Active	47 µF	±20%	63 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	125 mA @ 120 Hz	191.25 mA @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
860020373011 CAP ALUM 330UF 20% 16V RADIAL Würth Elektronik	17,747	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATG5	Active	330 µF	±20%	16 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	225 mA @ 120 Hz	310.5 mA @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
865060340001 CAP ALUM 10UF 20% 16V SMD Würth Elektronik	8,165	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WCAP-ASLL	Active	10 µF	±20%	16 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	53.1 mA @ 120 Hz	90 mA @ 100 kHz	1.35 Ohms	-	0.157 Dia (4.00mm)	0.217 (5.50mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount
EEU-FR1C221B CAP ALUM 220UF 20% 16V RADIAL Panasonic Electronic Components	3,867	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	FR-A	Active	220 µF	±20%	16 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	318.5 mA @ 120 Hz	455 mA @ 100 kHz	130 mOhms	0.197 (5.00mm)	0.248 Dia (6.30mm)	0.500 (12.70mm)	-	Through Hole
865230640004 CAP ALUM 0.47UF 20% 50V SMD Würth Elektronik	35,188	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WCAP-AS5H	Active	0.47 µF	±20%	50 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	3.8 mA @ 120 Hz	5.7 mA @ 10 kHz	-	-	0.157 Dia (4.00mm)	0.217 (5.50mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount
UKL1H1R5MDD1TA CAP ALUM 1.5UF 20% 50V RADIAL Nichicon	5,435	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UKL	Not For New Designs	1.5 µF	±20%	50 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	16 mA @ 120 Hz	32 mA @ 10 kHz	-	0.197 (5.00mm)	0.197 Dia (5.00mm)	0.472 (12.00mm)	-	Through Hole
EEU-FC1E101SH CAP ALUM 100UF 20% 25V RADIAL Panasonic Electronic Components	12,415	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	FC	Active	100 µF	±20%	25 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	AEC-Q200	Automotive	188.5 mA @ 120 Hz	290 mA @ 100 kHz	350 mOhms	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.480 (12.20mm)	-	Through Hole

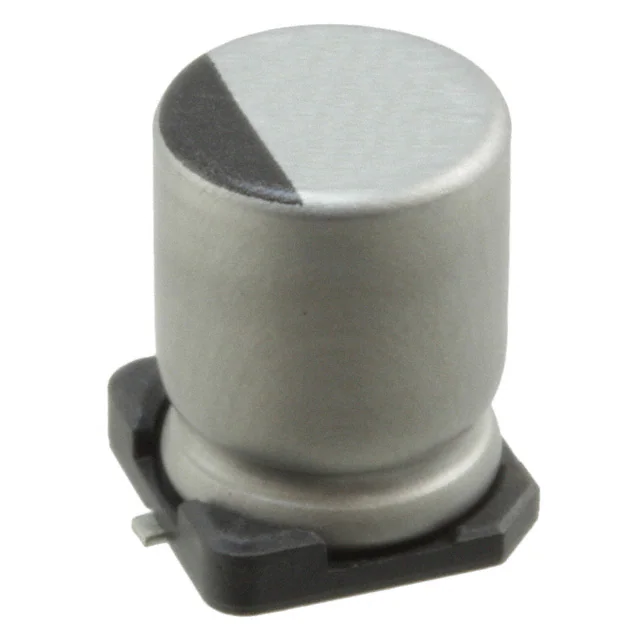

UUR1C221MNL1GS CAP ALUM 220UF 20% 16V SMD Nichicon	3,523	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	UUR	Not For New Designs	220 µF	±20%	16 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	-	-	General Purpose	215 mA @ 120 Hz	279.5 mA @ 10 kHz	-	-	0.315 Dia (8.00mm)	0.413 (10.50mm)	0.327 L x 0.327 W (8.30mm x 8.30mm)	Surface Mount
ECE-A1HN100UB CAP ALUM 10UF 20% 50V RADIAL Panasonic Electronic Components	11,984	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	SU	Active	10 µF	±20%	50 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Bi-Polar	-	General Purpose	50 mA @ 120 Hz	85 mA @ 10 kHz	-	0.197 (5.00mm)	0.248 Dia (6.30mm)	0.480 (12.20mm)	-	Through Hole
16PK47MEFC5X11 CAP ALUM 47UF 20% 16V RADIAL Rubycon	22,657	-	RFQ	Datasheet	Bulk	PK	Active	47 µF	±20%	16 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	115 mA @ 120 Hz	172.5 mA @ 10 kHz	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
UVR1H220MDD CAP ALUM 22UF 20% 50V RADIAL Nichicon	44,832	-	RFQ	Datasheet	Bulk	UVR	Not For New Designs	22 µF	±20%	50 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	95 mA @ 120 Hz	190 mA @ 10 kHz	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
UVR1H2R2MDD CAP ALUM 2.2UF 20% 50V RADIAL Nichicon	7,553	-	RFQ	Datasheet	Bulk	UVR	Not For New Designs	2.2 µF	±20%	50 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	28 mA @ 120 Hz	56 mA @ 10 kHz	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
ECA-0JM101 CAP ALUM 100UF 20% 6.3V RADIAL Panasonic Electronic Components	2,586	-	RFQ	Datasheet	Bulk	M-A	Active	100 µF	±20%	6.3 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	-	221 mA @ 10 kHz	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.472 (12.00mm)	-	Through Hole
UVR1E4R7MDD CAP ALUM 4.7UF 20% 25V RADIAL Nichicon	1,464	-	RFQ	Datasheet	Bulk	UVR	Not For New Designs	4.7 µF	±20%	25 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	35 mA @ 120 Hz	70 mA @ 10 kHz	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
