Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
UPS1C331MPD1TD CAP ALUM 330UF 20% 16V RADIAL Nichicon	3,022	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UPS	Not For New Designs	330 µF	±20%	16 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	291.1 mA @ 120 Hz	410 mA @ 100 kHz	280 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole
ECA-1VHG101B CAP ALUM 100UF 20% 35V RADIAL Panasonic Electronic Components	7,882	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	NHG-A	Active	100 µF	±20%	35 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	150 mA @ 120 Hz	225 mA @ 100 kHz	-	0.197 (5.00mm)	0.248 Dia (6.30mm)	0.480 (12.20mm)	-	Through Hole
ECE-A1HN4R7UB CAP ALUM 4.7UF 20% 50V RADIAL Panasonic Electronic Components	4,493	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	SU	Active	4.7 µF	±20%	50 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Bi-Polar	-	General Purpose	30 mA @ 120 Hz	51 mA @ 10 kHz	-	0.197 (5.00mm)	0.197 Dia (5.00mm)	0.472 (12.00mm)	-	Through Hole
UPS2C100MPD1TD CAP ALUM 10UF 20% 160V RADIAL Nichicon	1,691	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UPS	Not For New Designs	10 µF	±20%	160 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	70 mA @ 120 Hz	112 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole

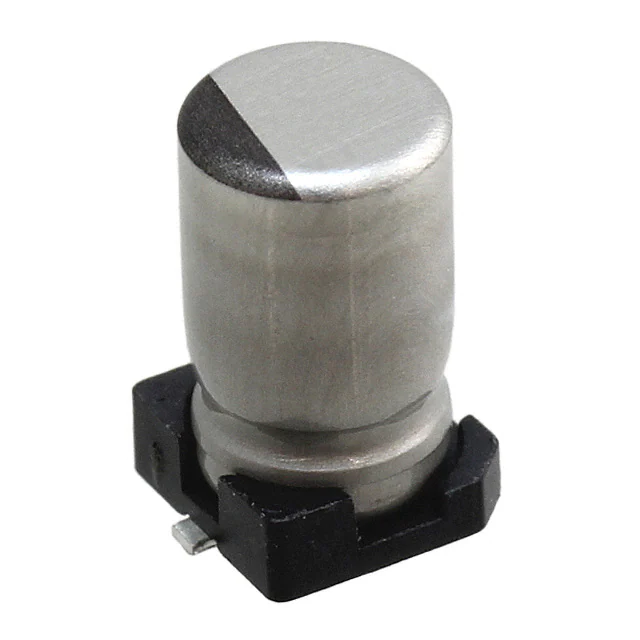

UCB1VR47MCL1GS CAP ALUM 0.47UF 20% 35V SMD Nichicon	3,518	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	UCB	Not For New Designs	0.47 µF	±20%	35 V	-	7000 Hrs @ 105°C	-25°C ~ 105°C	Polar	-	General Purpose	3.8 mA @ 120 Hz	5.7 mA @ 10 kHz	-	-	0.157 Dia (4.00mm)	0.276 (7.00mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount
865080340003 CAP ALUM 22UF 20% 16V SMD Würth Elektronik	38,525	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WCAP-ASLI	Active	22 µF	±20%	16 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	58.5 mA @ 120 Hz	90 mA @ 100 kHz	1.98 Ohms	-	0.157 Dia (4.00mm)	0.217 (5.50mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount
865080140004 CAP ALUM 47UF 20% 6.3V SMD Würth Elektronik	21,870	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WCAP-ASLI	Active	47 µF	±20%	6.3 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	55.9 mA @ 120 Hz	86 mA @ 100 kHz	1.88 Ohms	-	0.157 Dia (4.00mm)	0.217 (5.50mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount
865080540004 CAP ALUM 10UF 20% 35V SMD Würth Elektronik	13,577	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WCAP-ASLI	Active	10 µF	±20%	35 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	53.1 mA @ 120 Hz	90 mA @ 100 kHz	2 Ohms	-	0.157 Dia (4.00mm)	0.217 (5.50mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount
865080442004 CAP ALUM 22UF 20% 25V SMD Würth Elektronik	10,000	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WCAP-ASLI	Active	22 µF	±20%	25 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	94.25 mA @ 120 Hz	145 mA @ 100 kHz	1.2 Ohms	-	0.197 Dia (5.00mm)	0.217 (5.50mm)	0.209 L x 0.209 W (5.30mm x 5.30mm)	Surface Mount

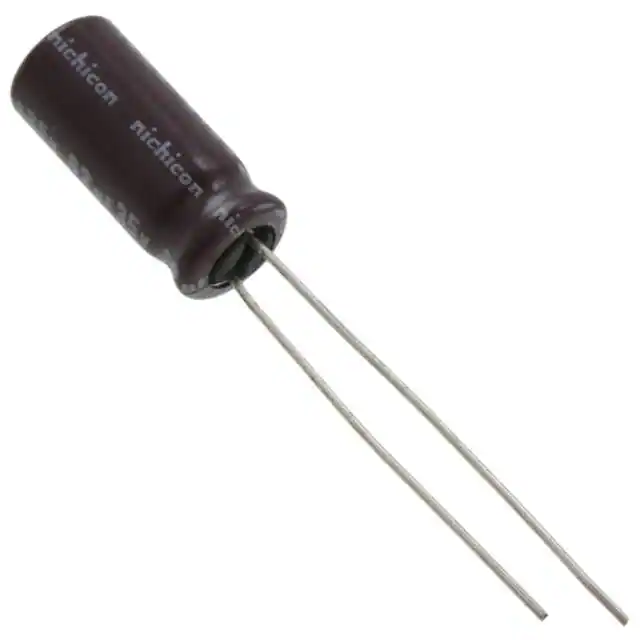

UPJ1A221MED1TD CAP ALUM 220UF 20% 10V RADIAL Nichicon	3,241	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UPJ	Not For New Designs	220 µF	±20%	10 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	270 mA @ 120 Hz	370 mA @ 10 kHz	380 mOhms	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.630 (16.00mm)	-	Through Hole
860040673002 CAP ALUM 47UF 20% 50V RADIAL Würth Elektronik	13,361	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATUL	Active	47 µF	±20%	50 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	174.2 mA @ 120 Hz	260 mA @ 100 kHz	370 mOhms	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
EEU-FR1E101B CAP ALUM 100UF 20% 25V RADIAL Panasonic Electronic Components	4,667	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	FR-A	Active	100 µF	±20%	25 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	318.5 mA @ 120 Hz	455 mA @ 100 kHz	130 mOhms	0.197 (5.00mm)	0.248 Dia (6.30mm)	0.500 (12.70mm)	-	Through Hole

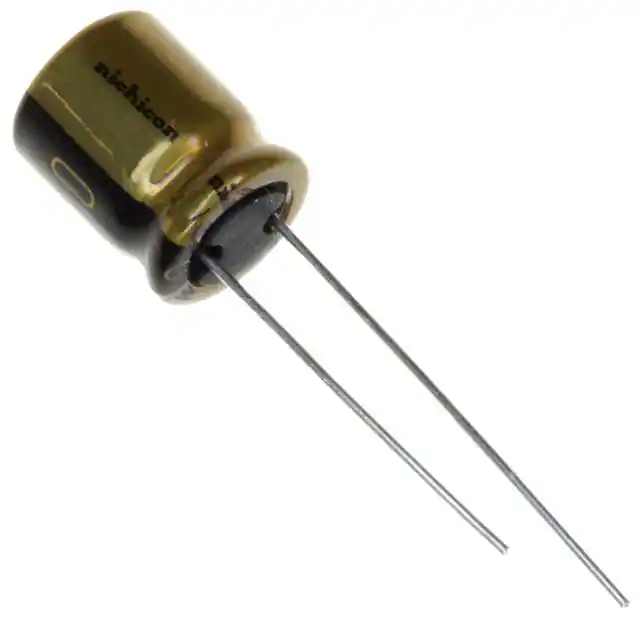

UFW1A102MPD1TD CAP ALUM 1000UF 20% 10V RADIAL Nichicon	4,948	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UFW	Not For New Designs	1000 µF	±20%	10 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	630 mA @ 120 Hz	724.5 mA @ 10 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole
EDH107M016A9GAA CAP ALUM 100UF 20% 16V SMD KEMET	30,992	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EDH	Active	100 µF	±20%	16 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	71 mA @ 120 Hz	88.75 mA @ 10 kHz	-	-	0.248 Dia (6.30mm)	0.222 (5.65mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount
EEU-EB1E101SB CAP ALUM 100UF 20% 25V RADIAL Panasonic Electronic Components	11,698	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	EB-A	Active	100 µF	±20%	25 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	95 mA @ 120 Hz	123.5 mA @ 100 kHz	-	0.197 (5.00mm)	0.248 Dia (6.30mm)	0.480 (12.20mm)	-	Through Hole
EDK226M025A9GAA CAP ALUM 22UF 20% 25V SMD KEMET	2,658	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	EDK	Active	22 µF	±20%	25 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	55 mA @ 120 Hz	68.75 mA @ 10 kHz	-	-	0.248 Dia (6.30mm)	0.222 (5.64mm)	0.260 L x 0.307 W (6.60mm x 7.80mm)	Surface Mount
EEU-FR1H560B CAP ALUM 56UF 20% 50V RADIAL Panasonic Electronic Components	10,683	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	FR-A	Active	56 µF	±20%	50 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	283.5 mA @ 120 Hz	405 mA @ 100 kHz	140 mOhms	0.197 (5.00mm)	0.248 Dia (6.30mm)	0.500 (12.70mm)	-	Through Hole

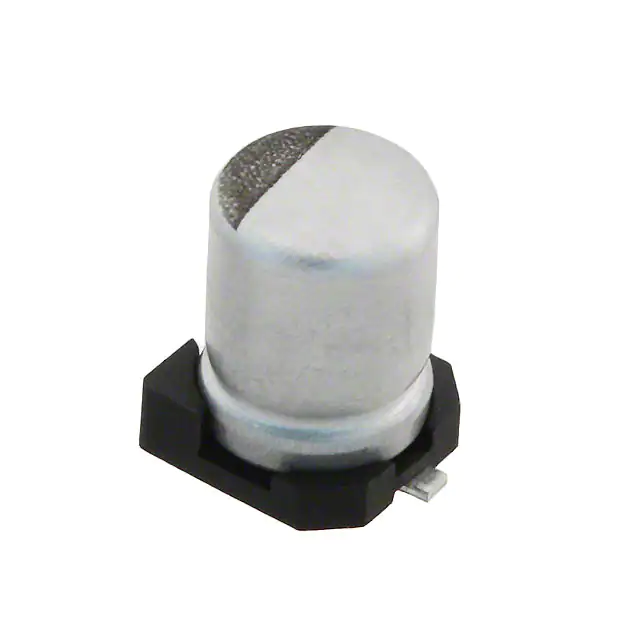

AVE106M16B12T-F CAP ALUM 10UF 20% 16V SMD Cornell Dubilier Electronics (CDE)	303	-	RFQ	Datasheet	Cut Tape (CT)	AVE	Not For New Designs	10 µF	±20%	16 V	33.16Ohm @ 120Hz	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	26 mA @ 120 Hz	32.5 mA @ 10 kHz	-	-	0.157 Dia (4.00mm)	0.209 (5.30mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount
UPW0J821MPD1TD CAP ALUM 820UF 20% 6.3V RADIAL Nichicon	14,507	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UPW	Not For New Designs	820 µF	±20%	6.3 V	-	3000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	547.5 mA @ 120 Hz	730 mA @ 100 kHz	85 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.650 (16.50mm)	-	Through Hole
865090340001 CAP ALUM 4.7UF 20% 16V SMD Würth Elektronik	33,729	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WCAP-ASLU	Active	4.7 µF	±20%	16 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	10 mA @ 120 Hz	15 mA @ 100 kHz	-	-	0.157 Dia (4.00mm)	0.217 (5.50mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount
