Aluminum Electrolytic Capacitors- Page 42

MAX3232IDR AOZ5311NQI-03 5-160558-2 ESD9B5.0ST5G

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Polarization	Ratings	Applications	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
EEA-GA1H100B CAP ALUM 10UF 20% 50V RADIAL Panasonic Electronic Components	5,717	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	GA-A	Active	10 µF	±20%	50 V	-	1000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	39 mA @ 120 Hz	60.45 mA @ 100 kHz	-	0.197 (5.00mm)	0.248 Dia (6.30mm)	0.276 (7.00mm)	-	Through Hole
UVK1V221MPD1TA CAP ALUM 220UF 20% 35V RADIAL Nichicon	2,859	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UVK	Not For New Designs	220 µF	±20%	35 V	-	2000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	350 mA @ 120 Hz	525 mA @ 10 kHz	-	0.197 (5.00mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole
EEU-FR1E470B CAP ALUM 47UF 20% 25V RADIAL Panasonic Electronic Components	4,982	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	FR-A	Active	47 µF	±20%	25 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	196 mA @ 120 Hz	280 mA @ 100 kHz	300 mOhms	0.197 (5.00mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
EEE-HC1C220R CAP ALUM 22UF 20% 16V SMD Panasonic Electronic Components	519	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	HC	Active	22 µF	±20%	16 V	-	3000 Hrs @ 105°C	-40°C ~ 105°C	Polar	AEC-Q200	Automotive	39 mA @ 120 Hz	66.3 mA @ 10 kHz	-	-	0.197 Dia (5.00mm)	0.228 (5.80mm)	0.209 L x 0.209 W (5.30mm x 5.30mm)	Surface Mount
UPS0J221MED1TD CAP ALUM 220UF 20% 6.3V RADIAL Nichicon	2,299	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UPS	Not For New Designs	220 µF	±20%	6.3 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	125 mA @ 120 Hz	250 mA @ 100 kHz	500 mOhms	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
EEE-HB1V100SR CAP ALUM 10UF 20% 35V SMD Panasonic Electronic Components	2,596	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	HB	Not For New Designs	10 µF	±20%	35 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	AEC-Q200	Automotive	28 mA @ 120 Hz	47.6 mA @ 10 kHz	-	-	0.197 Dia (5.00mm)	0.217 (5.50mm)	0.209 L x 0.209 W (5.30mm x 5.30mm)	Surface Mount

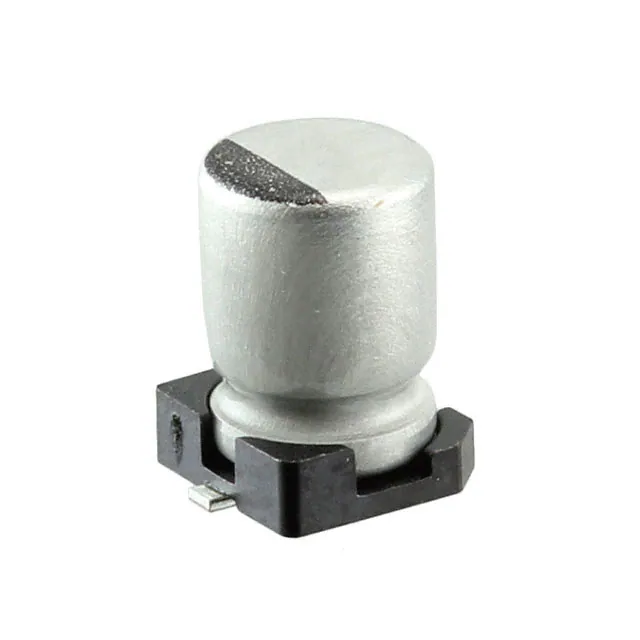

16SLV10M4X6.1 CAP ALUM 10UF 20% 16V SMD Rubycon	432	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SLV	Active	10 µF	±20%	16 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	18 mA @ 120 Hz	27 mA @ 10 kHz	-	-	0.157 Dia (4.00mm)	0.240 (6.10mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount
865080340001 CAP ALUM 10UF 20% 16V SMD Würth Elektronik	43,970	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WCAP-ASLI	Active	10 µF	±20%	16 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	47.2 mA @ 120 Hz	80 mA @ 100 kHz	2.2 Ohms	-	0.157 Dia (4.00mm)	0.217 (5.50mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount
UPV1V220MFD1TD CAP ALUM 22UF 20% 35V RADIAL Nichicon	4,713	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UPV	Not For New Designs	22 µF	±20%	35 V	-	5000 Hrs @ 105°C	-55°C ~ 105°C	-	-	General Purpose	-	-	1.3 Ohms	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole
865080640004 CAP ALUM 4.7UF 20% 50V SMD Würth Elektronik	17,654	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WCAP-ASLI	Active	4.7 µF	±20%	50 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	32.45 mA @ 120 Hz	55 mA @ 100 kHz	4.5 Ohms	-	0.157 Dia (4.00mm)	0.217 (5.50mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount

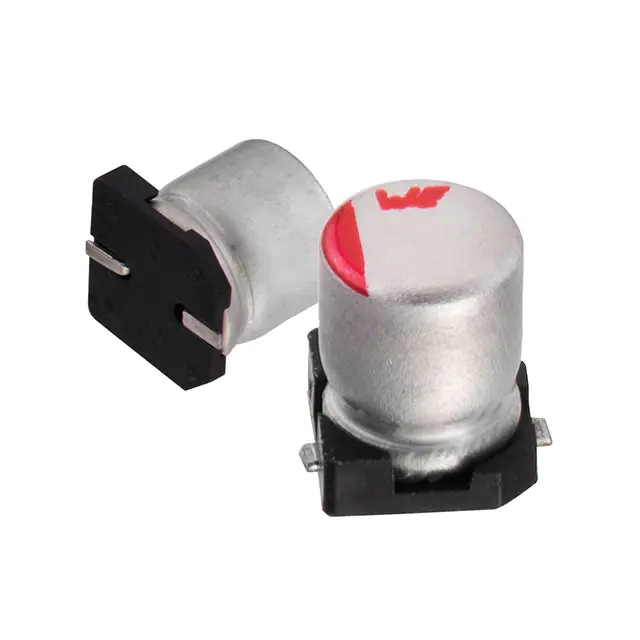

865090140001 CAP ALUM 10UF 20% 6.3V SMD Würth Elektronik	6,281	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WCAP-ASLU	Active	10 µF	±20%	6.3 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	15 mA @ 120 Hz	22.5 mA @ 100 kHz	-	-	0.157 Dia (4.00mm)	0.217 (5.50mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount
865080540002 CAP ALUM 4.7UF 20% 35V SMD Würth Elektronik	4,321	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WCAP-ASLI	Active	4.7 µF	±20%	35 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	50.15 mA @ 120 Hz	85 mA @ 100 kHz	2.5 Ohms	-	0.157 Dia (4.00mm)	0.217 (5.50mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount
UES1E100MDM1TD CAP ALUM 10UF 20% 25V RADIAL Nichicon	8,684	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UES	Not For New Designs	10 µF	±20%	25 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Bi-Polar	-	Audio	-	-	-	0.098 (2.50mm)	0.197 Dia (5.00mm)	0.492 (12.50mm)	-	Through Hole

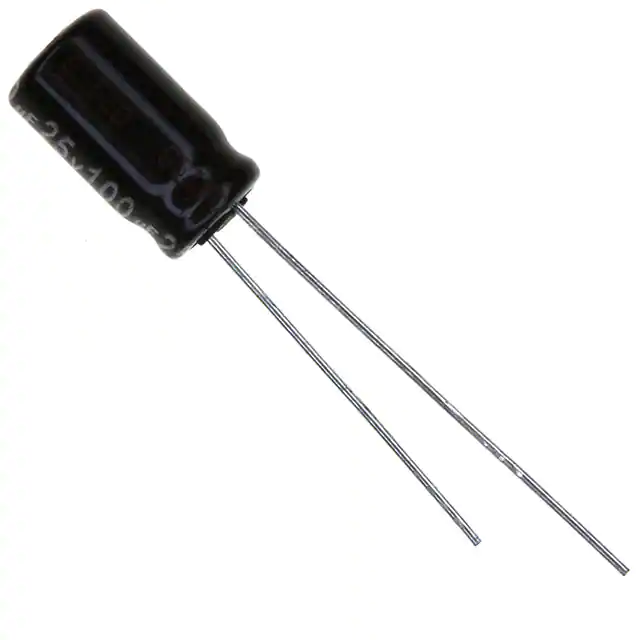

EEU-EB1H470SH CAP ALUM 47UF 20% 50V RADIAL Panasonic Electronic Components	5,682	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	EB-A	Active	47 µF	±20%	50 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	61 mA @ 120 Hz	79.3 mA @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.480 (12.20mm)	-	Through Hole
10ZLH1000MEFCT78X16 CAP ALUM 1000UF 20% 10V RADIAL Rubycon	34,592	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	ZLH	Active	1000 µF	±20%	10 V	-	8000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	750 mA @ 120 Hz	1.25 A @ 100 kHz	45 mOhms	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.689 (17.50mm)	-	Through Hole
865230340001 CAP ALUM 10UF 20% 16V SMD Würth Elektronik	27,029	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WCAP-AS5H	Active	10 µF	±20%	16 V	-	5000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	17 mA @ 120 Hz	25.5 mA @ 10 kHz	-	-	0.157 Dia (4.00mm)	0.217 (5.50mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount
865080640001 CAP ALUM 1UF 20% 50V SMD Würth Elektronik	11,780	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WCAP-ASLI	Active	1 µF	±20%	50 V	-	2000 Hrs @ 105°C	-55°C ~ 105°C	Polar	-	General Purpose	32.45 mA @ 120 Hz	55 mA @ 100 kHz	4.5 Ohms	-	0.157 Dia (4.00mm)	0.217 (5.50mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount
865090240001 CAP ALUM 10UF 20% 10V SMD Würth Elektronik	13,535	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WCAP-ASLU	Active	10 µF	±20%	10 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	General Purpose	23 mA @ 120 Hz	34.5 mA @ 100 kHz	-	-	0.157 Dia (4.00mm)	0.217 (5.50mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount
860020673014 CAP ALUM 68UF 20% 50V RADIAL Würth Elektronik	4,587	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	WCAP-ATG5	Active	68 µF	±20%	50 V	-	2000 Hrs @ 105°C	-40°C ~ 105°C	Polar	-	General Purpose	130 mA @ 120 Hz	198.9 mA @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
UFG1E330MEM1TD CAP ALUM 33UF 20% 25V RADIAL Nichicon	5,216	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	UFG	Not For New Designs	33 µF	±20%	25 V	-	1000 Hrs @ 85°C	-40°C ~ 85°C	Polar	-	Audio	70 mA @ 120 Hz	140 mA @ 10 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.492 (12.50mm)	-	Through Hole
