Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Ratings	Applications	Features	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
127AVG050MFBJ CAP ALUM POLY 120UF 20% 50V T/H Cornell Dubilier / Illinois Capacitor	4,141	-	RFQ	Datasheet	Bulk	AVG	Active	Polymer	120 µF	±20%	50 V	32mOhm	2000 Hrs @ 125°C	-55°C ~ 125°C	-	General Purpose	-	112.5 mA @ 120 Hz	2.25 A @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.532 (13.50mm)	-	Through Hole
PCV2A180MCL1GS CAP ALUM POLY 18UF 20% 100V SMD Nichicon	750	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PCV	Active	Polymer	18 µF	±20%	100 V	41mOhm	3000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	2.1 A @ 100 kHz	-	-	0.394 Dia (10.00mm)	0.500 (12.70mm)	0.406 L x 0.406 W (10.30mm x 10.30mm)	Surface Mount
A759MW157M1JAAE048 CAP ALUM POLY 150UF 20% 63V T/H KEMET	1,473	-	RFQ	Datasheet	Bulk	A759	Active	Polymer	150 µF	±20%	63 V	48mOhm	2000 Hrs @ 125°C	-55°C ~ 125°C	-	General Purpose	-	130.5 mA @ 120 Hz	2.61 A @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.669 (17.00mm)	-	Through Hole
875075861006 CAP ALUM POLY 47UF 20% 63V SMD Würth Elektronik	732	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WCAP-PSLC	Active	Polymer	47 µF	±20%	63 V	30mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	100 mA @ 120 Hz	2 A @ 100 kHz	-	-	0.394 Dia (10.00mm)	0.500 (12.70mm)	0.406 L x 0.406 W (10.30mm x 10.30mm)	Surface Mount
337AVG035MGBJ CAP ALUM POLY 330UF 20% 35V T/H Cornell Dubilier / Illinois Capacitor	9,874	-	RFQ	Datasheet	Bulk	AVG	Active	Polymer	330 µF	±20%	35 V	24mOhm	1500 Hrs @ 125°C	-55°C ~ 125°C	-	General Purpose	-	170 mA @ 120 Hz	3.4 A @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.532 (13.50mm)	-	Through Hole
A759MX447M1HAAE028 CAP ALUM POLY 440UF 20% 50V T/H KEMET	9,990	-	RFQ	Datasheet	Bulk	A759	Active	Polymer	440 µF	±20%	50 V	28mOhm	2000 Hrs @ 125°C	-55°C ~ 125°C	-	General Purpose	-	-	-	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.748 (19.00mm)	-	Through Hole
A759MY227M1JAAE045 CAP ALUM POLY 220UF 20% 63V T/H KEMET	7,819	-	RFQ	Datasheet	Bulk	A759	Active	Polymer	220 µF	±20%	63 V	45mOhm	2000 Hrs @ 125°C	-55°C ~ 125°C	-	General Purpose	-	180 mA @ 120 Hz	3.6 A @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.827 (21.00mm)	-	Through Hole
MAL218497703E3 CAP ALUM POLY 47UF 20% 80V SMD Vishay Beyschlag/Draloric/BC Components	7,997	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	184 CPNS	Active	Polymer	47 µF	±20%	80 V	40mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	Automotive	-	-	1.8 A @ 100 kHz	-	-	0.394 Dia (10.00mm)	0.500 (12.70mm)	0.394 L x 0.394 W (10.00mm x 10.00mm)	Surface Mount
875075661008 CAP ALUM POLY 220UF 20% 35V SMD Würth Elektronik	888	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	WCAP-PSLC	Active	Polymer	220 µF	±20%	35 V	22mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	205 mA @ 120 Hz	4.1 A @ 100 kHz	-	-	0.394 Dia (10.00mm)	0.500 (12.70mm)	0.406 L x 0.406 W (10.30mm x 10.30mm)	Surface Mount
PLV1K220MDL1 CAP ALUM POLY 22UF 20% 80V T/H Nichicon	243	-	RFQ	Datasheet	Bulk	PLV	Not For New Designs	Polymer	22 µF	±20%	80 V	35mOhm	3000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	2.3 A @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.512 (13.00mm)	-	Through Hole
B40600B7108M001 CAP ALUM POLY HYB 1000UF 35V T/H EPCOS - TDK Electronics	2,198	-	RFQ	Datasheet	Bulk	B40600	Active	Hybrid	1000 µF	±20%	35 V	4mOhm	4000 Hrs @ 125°C	-55°C ~ 125°C	AEC-Q200	Automotive	-	-	9.2 A @ 20 kHz	-	-	0.630 Dia x 0.984 L (16.00mm x 25.00mm)	-	-	Through Hole
RS61A151MCN1JT CAP ALUM POLY 150UF 20% 10V T/H Nichicon	4,344	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	FPCAP, RS6	Active	Polymer	150 µF	±20%	10 V	25mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	250 mA @ 120 Hz	2.5 A @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.236 (6.00mm)	-	Through Hole
RSS0J101MCN1GS CAP ALUM POLY 100UF 20% 6.3V SMD Nichicon	1,973	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	FPCAP, RSS	Active	Polymer	100 µF	±20%	6.3 V	25mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	250 mA @ 120 Hz	2.5 A @ 100 kHz	-	-	0.248 Dia (6.30mm)	0.236 (6.00mm)	0.256 L x 0.256 W (6.50mm x 6.50mm)	Surface Mount
APXN2R5ARA561MF61G CAP ALUM POLY 560UF 20% 2.5V SMD United Chemi-Con	2,970	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	NPCAP™-PXN	Active	Polymer	560 µF	±20%	2.5 V	25mOhm	5000 Hrs @ 105°C	-55°C ~ 105°C	AEC-Q200	Automotive	-	140 mA @ 120 Hz	2.8 A @ 100 kHz	-	-	0.248 Dia (6.30mm)	0.240 (6.10mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount

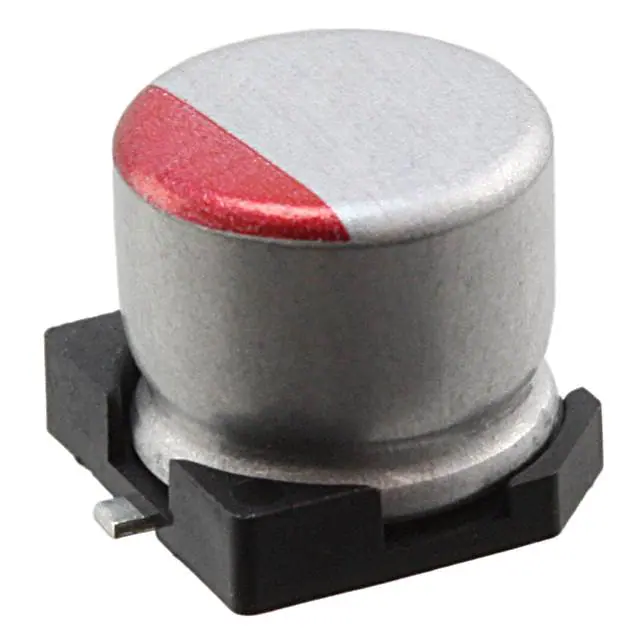

RSA0E561MCN1GS CAP ALUM POLY 560UF 20% 2.5V SMD Nichicon	4,000	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	FPCAP, RSA	Active	Polymer	560 µF	±20%	2.5 V	13mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	360 mA @ 120 Hz	3.6 A @ 100 kHz	-	-	0.248 Dia (6.30mm)	0.236 (6.00mm)	0.256 L x 0.256 W (6.50mm x 6.50mm)	Surface Mount

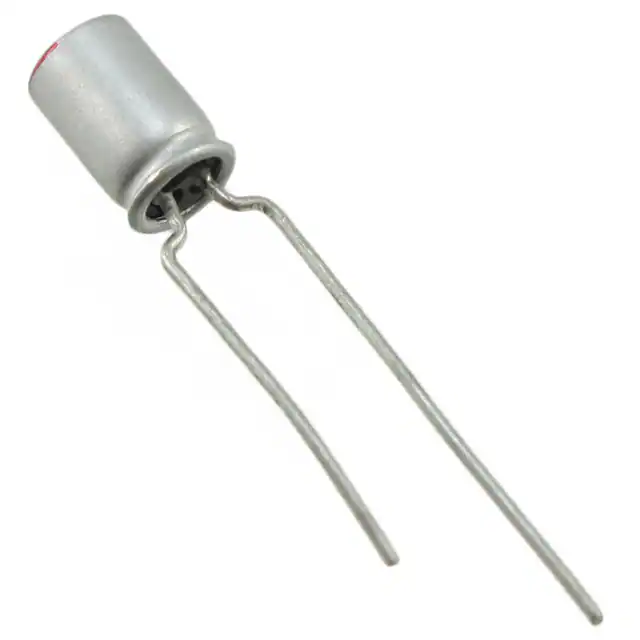

RF80J331MDN1JT CAP ALUM POLY 330UF 20% 6.3V T/H Nichicon	4,000	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	FPCAP, RF8	Active	Polymer	330 µF	±20%	6.3 V	11mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	370 mA @ 120 Hz	3.7 A @ 100 kHz	-	0.079 (2.00mm)	0.197 Dia (5.00mm)	0.354 (9.00mm)	-	Through Hole
4SEPC560MW+TSS CAP ALUM POLY 560UF 20% 4V T/H Panasonic Electronic Components	4,500	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	OS-CON™, SEPC	Active	Polymer	560 µF	±20%	4 V	7mOhm	5000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	280 mA @ 120 Hz	5.6 A @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.354 (9.00mm)	-	Through Hole
32SEPF22M+TSS CAP ALUM POLY 22UF 20% 32V T/H Panasonic Electronic Components	7,295	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	OS-CON™, SEPF	Active	Polymer	22 µF	±20%	32 V	35mOhm	5000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	120 mA @ 120 Hz	2.4 A @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.217 (5.50mm)	-	Through Hole

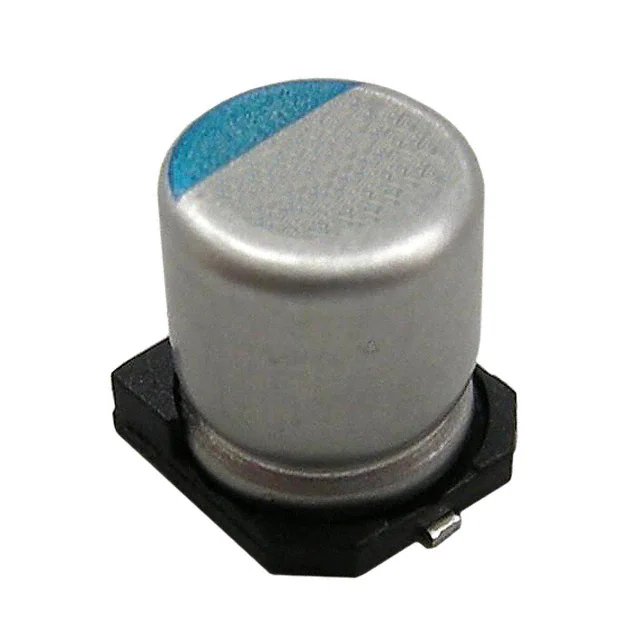

APXJ2R5ARA122MFA0G CAP ALUM POL 1200UF 20% 2.5V SMD United Chemi-Con	2,250	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	NPCAP™-PXJ	Active	Polymer	1200 µF	±20%	2.5 V	10mOhm	15000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	215 mA @ 120 Hz	4.3 A @ 100 kHz	-	-	0.248 Dia (6.30mm)	0.394 (10.00mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount
PCF0J221MCL1GS CAP ALUM POLY 220UF 20% 6.3V SMD Nichicon	3,000	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PCF	Active	Polymer	220 µF	±20%	6.3 V	22mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	3.4 A @ 100 kHz	-	-	0.315 Dia (8.00mm)	0.276 (7.00mm)	0.327 L x 0.327 W (8.30mm x 8.30mm)	Surface Mount
