Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Ratings	Applications	Features	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
APSG160ELL271MF08S CAP ALUM POLY 270UF 20% 16V T/H United Chemi-Con	2,196	-	RFQ	Datasheet	Bulk	NPCAP™-PSG	Active	Polymer	270 µF	±20%	16 V	15mOhm	20000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	3.8 A @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.315 (8.00mm)	-	Through Hole
APSA4R0ELL561MHB5S CAP ALUM POLY 560UF 20% 4V T/H United Chemi-Con	2,400	-	RFQ	Datasheet	Bulk	NPCAP™-PSA	Active	Polymer	560 µF	±20%	4 V	7mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	5.58 A @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole
APSF160ELL101MF05S CAP ALUM POLY 100UF 20% 16V T/H United Chemi-Con	5,831	-	RFQ	Datasheet	Bulk	NPCAP™-PSF	Active	Polymer	100 µF	±20%	16 V	24mOhm	5000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	2.49 A @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.197 (5.00mm)	-	Through Hole
A765EB227M0JLAE020 CAP ALUM POLY 220UF 20% 6.3V SMD KEMET	12,000	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	A765	Active	Polymer	220 µF	±20%	6.3 V	20mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	140 mA @ 120 Hz	2.8 A @ 100 kHz	-	-	0.248 Dia (6.30mm)	0.236 (6.00mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount
PLF0J471MCO6 CAP ALUM POLY 470UF 20% 6.3V T/H Nichicon	12,966	-	RFQ	Datasheet	Bulk	PLF	Active	Polymer	470 µF	±20%	6.3 V	7mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	5.2 A @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.354 (9.00mm)	-	Through Hole
APSF2R0ELL102MF08S CAP ALUM POLY 1000UF 20% 2V T/H United Chemi-Con	1,880	-	RFQ	Datasheet	Bulk	NPCAP™-PSF	Active	Polymer	1000 µF	±20%	2 V	5mOhm	5000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	5.9 A @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.315 (8.00mm)	-	Through Hole
A765EB157M0JLAE020 CAP ALUM POLY 150UF 20% 6.3V SMD KEMET	16,000	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	A765	Active	Polymer	150 µF	±20%	6.3 V	20mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	125 mA @ 120 Hz	2.5 A @ 100 kHz	-	-	0.248 Dia (6.30mm)	0.236 (6.00mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount
A765EB187M0JLAE020 CAP ALUM POLY 180UF 20% 6.3V SMD KEMET	15,720	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	A765	Active	Polymer	180 µF	±20%	6.3 V	20mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	140 mA @ 120 Hz	2.8 A @ 100 kHz	-	-	0.248 Dia (6.30mm)	0.236 (6.00mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount
10SVP330M CAP ALUM POLY 330UF 20% 10V SMD Panasonic Electronic Components	1,796	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	OS-CON™, SVP	Active	Polymer	330 µF	±20%	10 V	17mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	197.5 mA @ 120 Hz	3.95 A @ 100 kHz	-	-	0.315 Dia (8.00mm)	0.472 (12.00mm)	0.327 L x 0.327 W (8.30mm x 8.30mm)	Surface Mount
6SVPC820M CAP ALUM POLY 820UF 20% 6.3V SMD Panasonic Electronic Components	9,954	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	OS-CON™, SVPC	Active	Polymer	820 µF	±20%	6.3 V	12mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	235 mA @ 120 Hz	4.7 A @ 100 kHz	-	-	0.315 Dia (8.00mm)	0.472 (12.00mm)	0.327 L x 0.327 W (8.30mm x 8.30mm)	Surface Mount
APSF160ELL471MHB5S CAP ALUM POLY 470UF 20% 16V T/H United Chemi-Con	7,960	-	RFQ	Datasheet	Bulk	NPCAP™-PSF	Active	Polymer	470 µF	±20%	16 V	11mOhm	5000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	5.4 A @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole
ECASD41A106M055K00 CAP ALUM POLY 10UF 20% 10V SMD Murata Electronics	5,681	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	ECAS	Not For New Designs	Polymer	10 µF	±20%	10 V	55mOhm	1000 Hrs @ 105°C	-40°C ~ 105°C	-	General Purpose	-	-	1 A @ 100 kHz	-	-	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.075 (1.90mm)	0.287 L x 0.169 W (7.30mm x 4.30mm)	Surface Mount
APXA100ARA331MJ80G CAP ALUM POLY 330UF 20% 10V SMD United Chemi-Con	2,041	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	NPCAP™-PXA	Active	Polymer	330 µF	±20%	10 V	24mOhm	15000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	3.77 A @ 100 kHz	-	-	0.394 Dia (10.00mm)	0.303 (7.70mm)	0.406 L x 0.406 W (10.30mm x 10.30mm)	Surface Mount
APXA6R3ARA331MJ80G CAP ALUM POLY 330UF 20% 6.3V SMD United Chemi-Con	345	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	NPCAP™-PXA	Active	Polymer	330 µF	±20%	6.3 V	20mOhm	15000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	4.13 A @ 100 kHz	-	-	0.394 Dia (10.00mm)	0.303 (7.70mm)	0.406 L x 0.406 W (10.30mm x 10.30mm)	Surface Mount

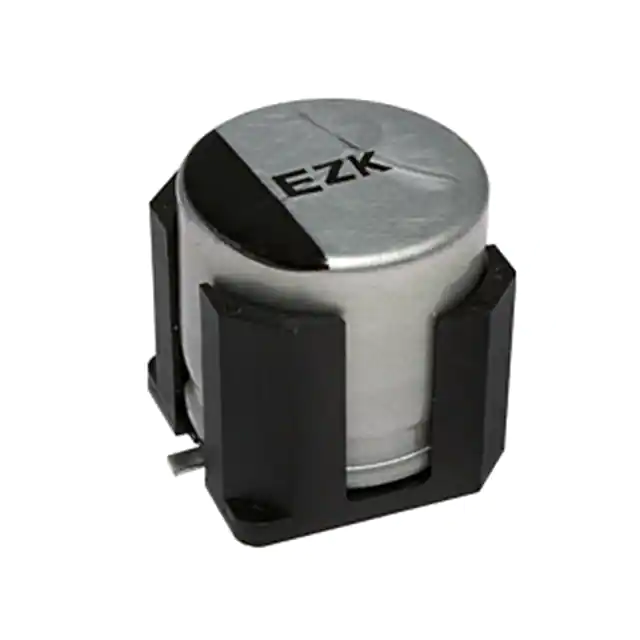

EEH-ZK1E471V CAP ALUM POLY 470UF 20% 25V SMD Panasonic Electronic Components	5,596	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	ZK, Anti-Vibration	Active	Hybrid	470 µF	±20%	25 V	20mOhm	4000 Hrs @ 125°C	-55°C ~ 125°C	AEC-Q200	Automotive	-	420 mA @ 100 Hz	2.8 A @ 100 kHz	-	-	0.394 Dia (10.00mm)	0.413 (10.50mm)	0.406 L x 0.406 W (10.30mm x 10.30mm)	Surface Mount

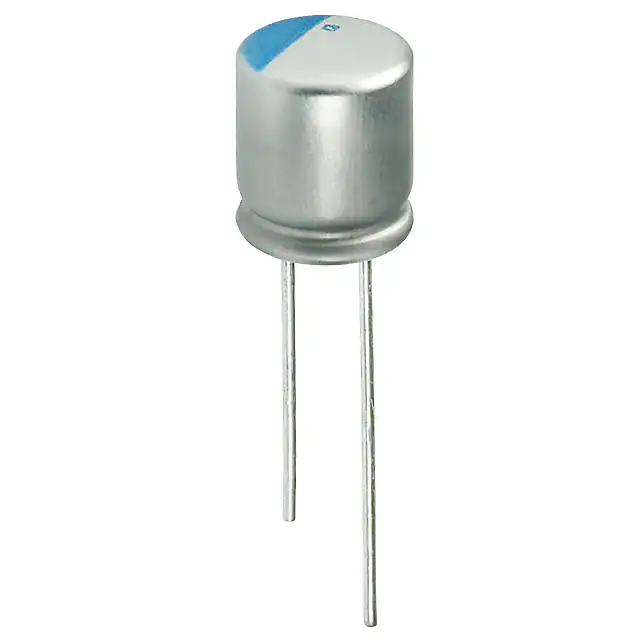

APSA100ELL471MJB5S CAP ALUM POLY 470UF 20% 10V T/H United Chemi-Con	3,157	-	RFQ	Datasheet	Bulk	NPCAP™-PSA	Active	Polymer	470 µF	±20%	10 V	8mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	5.65 A @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.453 (11.50mm)	-	Through Hole
A759KK106M1KAAE075 CAP ALUM POLY 10UF 20% 80V T/H KEMET	1,565	-	RFQ	Datasheet	Bulk	A759	Active	Polymer	10 µF	±20%	80 V	75mOhm	2000 Hrs @ 125°C	-55°C ~ 125°C	-	General Purpose	-	47.6 mA @ 120 Hz	952 mA @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.354 (9.00mm)	-	Through Hole
PLF0G561MDO1TD CAP ALUM POLY 560UF 20% 4V T/H Nichicon	2,703	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	PLF	Active	Polymer	560 µF	±20%	4 V	7mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	5.5 A @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.472 (12.00mm)	-	Through Hole
A767MU686M1JLAE030 CAP ALUM POLY 68UF 20% 63V SMD KEMET	2,354	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	A767	Active	Polymer	68 µF	±20%	63 V	30mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	122.5 mA @ 120 Hz	2.45 A @ 100 kHz	-	-	0.394 Dia (10.00mm)	0.508 (12.90mm)	0.406 L x 0.406 W (10.30mm x 10.30mm)	Surface Mount
APS-160ELL331MJC5S CAP ALUM POLY 330UF 20% 16V T/H United Chemi-Con	321	-	RFQ	Datasheet	Bulk	NPCAP™-PS	Active	Polymer	330 µF	±20%	16 V	14mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	5.05 A @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.492 (12.50mm)	-	Through Hole
