Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Capacitance	Tolerance	Voltage-Rated	ESR(EquivalentSeriesResistance)	Lifetime@Temp	OperatingTemperature	Ratings	Applications	Features	RippleCurrent@LowFrequency	RippleCurrent@HighFrequency	Impedance	LeadSpacing	Size/Dimension	Height-Seated(Max)	SurfaceMountLandSize	MountingType
10SVP6R8M CAP ALUM POLY 6.8UF 20% 10V SMD Panasonic Electronic Components	2,952	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	OS-CON™, SVP	Active	Polymer	6.8 µF	±20%	10 V	240mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	33.5 mA @ 120 Hz	670 mA @ 100 kHz	-	-	0.157 Dia (4.00mm)	0.217 (5.50mm)	0.169 L x 0.169 W (4.30mm x 4.30mm)	Surface Mount
16SEP39M+TSS CAP ALUM POLY 39UF 20% 16V T/H Panasonic Electronic Components	7,309	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	OS-CON™, SEP	Active	Polymer	39 µF	±20%	16 V	50mOhm	3000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	81 mA @ 120 Hz	1.62 A @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.236 (6.00mm)	-	Through Hole
10SEP56M+TSS CAP ALUM POLY 56UF 20% 10V T/H Panasonic Electronic Components	4,259	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	OS-CON™, SEP	Active	Polymer	56 µF	±20%	10 V	45mOhm	3000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	85 mA @ 120 Hz	1.7 A @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.236 (6.00mm)	-	Through Hole
RNU1C471MDN1PH CAP ALUM POLY 470UF 20% 16V T/H Nichicon	1,706	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	FPCAP, RNU	Active	Polymer	470 µF	±20%	16 V	10mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	610 mA @ 120 Hz	6.1 A @ 100 kHz	-	0.197 (5.00mm)	0.394 Dia (10.00mm)	0.551 (14.00mm)	-	Through Hole
APXK6R3ARA151MF46G CAP ALUM POLY 150UF 20% 6.3V SMD United Chemi-Con	2,510	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	NPCAP™-PXK	Active	Polymer	150 µF	±20%	6.3 V	19mOhm	1000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	2.78 A @ 100 kHz	-	-	0.248 Dia (6.30mm)	0.177 (4.50mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount
10SVPS33M CAP ALUM POLY 33UF 20% 10V SMD Panasonic Electronic Components	1,871	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	OS-CON™, SVPS	Active	Polymer	33 µF	±20%	10 V	70mOhm	5000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	55 mA @ 120 Hz	1.1 A @ 100 kHz	-	-	0.197 Dia (5.00mm)	0.236 (6.00mm)	0.209 L x 0.209 W (5.30mm x 5.30mm)	Surface Mount
PCF1A151MCL6GS CAP ALUM POLY 150UF 20% 10V SMD Nichicon	3,188	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PCF	Active	Polymer	150 µF	±20%	10 V	23mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	3.2 A @ 100 kHz	-	-	0.315 Dia (8.00mm)	0.276 (7.00mm)	0.327 L x 0.327 W (8.30mm x 8.30mm)	Surface Mount
EEF-SX0E181R CAP ALUM POLY 180UF 20% 2.5V SMD Panasonic Electronic Components	10,000	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SP-Cap SX	Not For New Designs	Polymer	180 µF	±20%	2.5 V	9mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	-	-	-	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.079 (2.00mm)	-	Surface Mount
4SVPC330MV CAP ALUM POLY 330UF 20% 4V SMD Panasonic Electronic Components	201	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	OS-CON™, SVPC	Active	Polymer	330 µF	±20%	4 V	15mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	158 mA @ 120 Hz	3.16 A @ 100 kHz	-	-	0.248 Dia (6.30mm)	0.236 (6.00mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount
20SVPB22M CAP ALUM POLY 22UF 20% 20V SMD Panasonic Electronic Components	4,083	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	OS-CON™, SVPB	Active	Polymer	22 µF	±20%	20 V	35mOhm	1000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	100 mA @ 120 Hz	2 A @ 100 kHz	-	-	0.248 Dia (6.30mm)	0.217 (5.50mm)	0.260 L x 0.260 W (6.60mm x 6.60mm)	Surface Mount
10SVPC68MV CAP ALUM POLY 68UF 20% 10V SMD Panasonic Electronic Components	6,114	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	OS-CON™, SVPC	Active	Polymer	68 µF	±20%	10 V	23mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	127 mA @ 120 Hz	2.54 A @ 100 kHz	-	-	0.197 Dia (5.00mm)	0.236 (6.00mm)	0.209 L x 0.209 W (5.30mm x 5.30mm)	Surface Mount
ECASD40G227M009K00 CAP ALUM POLY 220UF 20% 4V SMD Murata Electronics	3,000	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	ECAS	Not For New Designs	Polymer	220 µF	±20%	4 V	9mOhm	1000 Hrs @ 105°C	-40°C ~ 105°C	-	General Purpose	-	-	3 A @ 100 kHz	-	-	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.079 (2.00mm)	0.287 L x 0.169 W (7.30mm x 4.30mm)	Surface Mount
EEF-CS0G121R CAP ALUM POLY 120UF 20% 4V SMD Panasonic Electronic Components	1,086	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	SP-Cap CS	Active	Polymer	120 µF	±20%	4 V	15mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	5.1 A @ 100 kHz	-	-	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.047 (1.20mm)	0.287 L x 0.169 W (7.30mm x 4.30mm)	Surface Mount

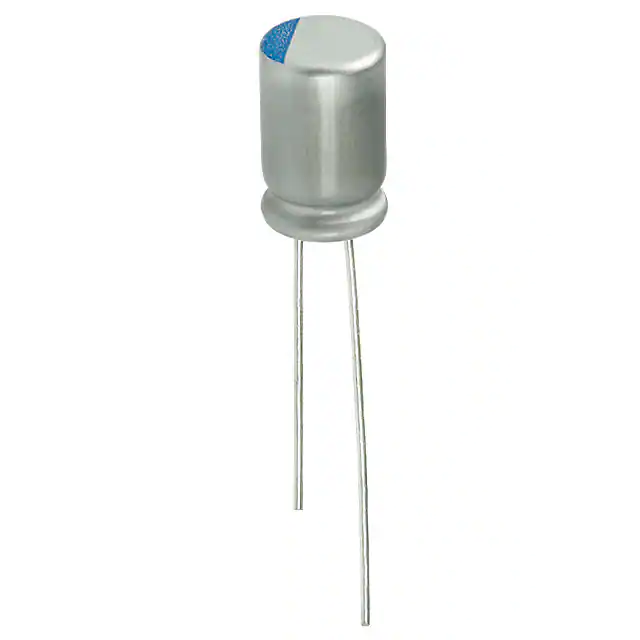

APSA100ELL101MFA5G CAP ALUM POLY 100UF 20% 10V T/H United Chemi-Con	2,192	-	RFQ	Datasheet	Bulk	NPCAP™-PSA	Active	Polymer	100 µF	±20%	10 V	25mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	2.82 A @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.413 (10.50mm)	-	Through Hole
10SVPC270M CAP ALUM POLY 270UF 20% 10V SMD Panasonic Electronic Components	3,246	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	OS-CON™, SVPC	Active	Polymer	270 µF	±20%	10 V	22mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	161 mA @ 120 Hz	3.22 A @ 100 kHz	-	-	0.315 Dia (8.00mm)	0.276 (7.00mm)	0.327 L x 0.327 W (8.30mm x 8.30mm)	Surface Mount

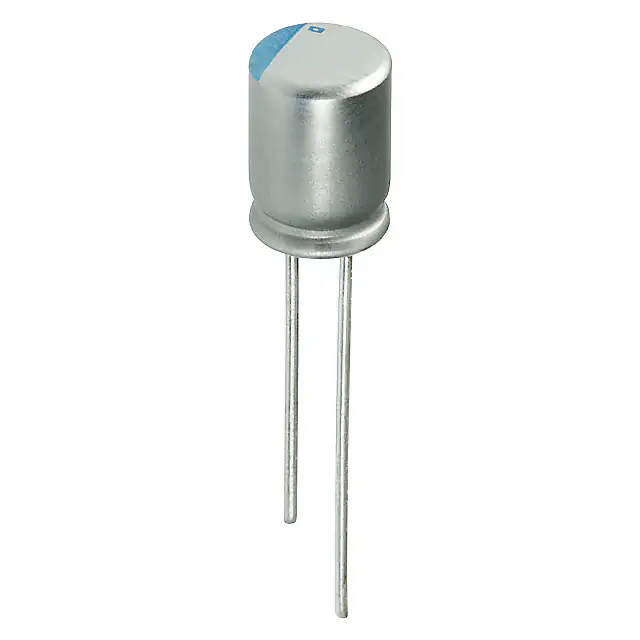

APS-160ETD331MJC5S CAP ALUM POLY 330UF 20% 16V T/H United Chemi-Con	7,500	-	RFQ	Datasheet	Cut Tape (CT),Tape & Box (TB)	NPCAP™-PS	Active	Polymer	330 µF	±20%	16 V	14mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	5.05 A @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole
ECASD60D477M4R5K00 CAP ALUM POLY 470UF 20% 2V SMD Murata Electronics	6,204	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	ECAS	Not For New Designs	Polymer	470 µF	±20%	2 V	4.5mOhm	1000 Hrs @ 105°C	-40°C ~ 105°C	-	General Purpose	-	-	4 A @ 100 kHz	-	-	0.287 L x 0.169 W (7.30mm x 4.30mm)	0.122 (3.10mm)	0.287 L x 0.169 W (7.30mm x 4.30mm)	Surface Mount
A765BC107M0JLAE025 CAP ALUM POLY 100UF 20% 6.3V SMD KEMET	19,998	-	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	A765	Active	Polymer	100 µF	±20%	6.3 V	25mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	85 mA @ 120 Hz	1.7 A @ 100 kHz	-	-	0.197 Dia (5.00mm)	0.248 (6.30mm)	0.209 L x 0.209 W (5.30mm x 5.30mm)	Surface Mount
APSG160ELL151MF05S CAP ALUM POLY 150UF 20% 16V T/H United Chemi-Con	2,193	-	RFQ	Datasheet	Bulk	NPCAP™-PSG	Active	Polymer	150 µF	±20%	16 V	20mOhm	20000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	3.2 A @ 100 kHz	-	0.098 (2.50mm)	0.248 Dia (6.30mm)	0.236 (6.00mm)	-	Through Hole
APSA100ELL271MHB5S CAP ALUM POLY 270UF 20% 10V T/H United Chemi-Con	1,113	-	RFQ	Datasheet	Bulk	NPCAP™-PSA	Active	Polymer	270 µF	±20%	10 V	9mOhm	2000 Hrs @ 105°C	-55°C ~ 105°C	-	General Purpose	-	-	4.71 A @ 100 kHz	-	0.138 (3.50mm)	0.315 Dia (8.00mm)	0.512 (13.00mm)	-	Through Hole
