Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RXEF017PTC RESET FUSE 60V 170MA RADIAL |
13,889 | - |
RFQ |
Datasheet |
Radial, Disc | Bag,Bag | PolySwitch®, RXEF | Active | Polymeric | 60V | 40 A | 170 mA | 340 mA | 3 s | 3.3 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.118 T (7.40mm x 3.00mm) | 0.500 (12.70mm) | - | |
1210L200PRPTC RESET FUSE 6V 2A 1210 |
5,542 | - |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1210L | Active | Polymeric | 6V | 100 A | 2 A | 4 A | 1 s | 15 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.127 L x 0.102 W (3.22mm x 2.58mm) | - | 0.063 (1.60mm) | |
MF-RX160/72-0PTC RESET FUSE 72V 1.6A RADIAL |
4,759 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | Multifuse®, MF-RX/72 | Active | Polymeric | 72V | 40 A | 1.6 A | 3.2 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.642 L x 0.122 W (16.30mm x 3.10mm) | 0.839 (21.30mm) | - | |

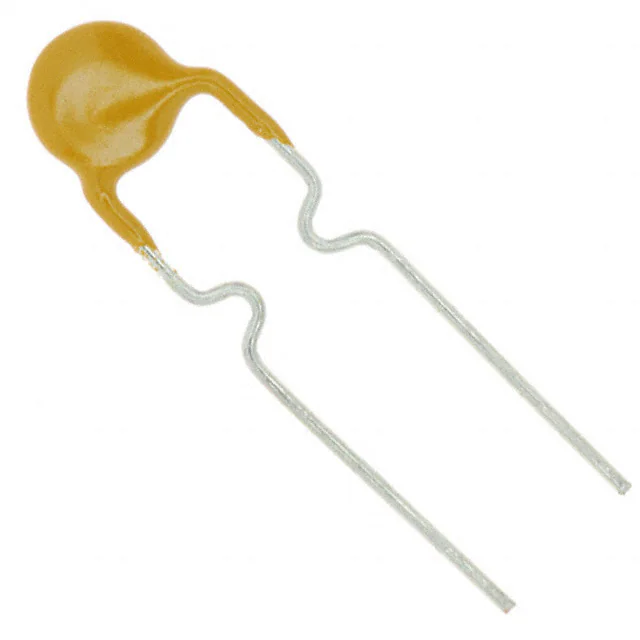

MF-R025PTC RESET FUSE 60V 250MA RADIAL |
4,079 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | Multifuse®, MF-R | Active | Polymeric | 60V | 40 A | 250 mA | 500 mA | 2.5 s | 1 Ohms | 3 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.122 T (7.40mm x 3.10mm) | 0.500 (12.70mm) | - | |

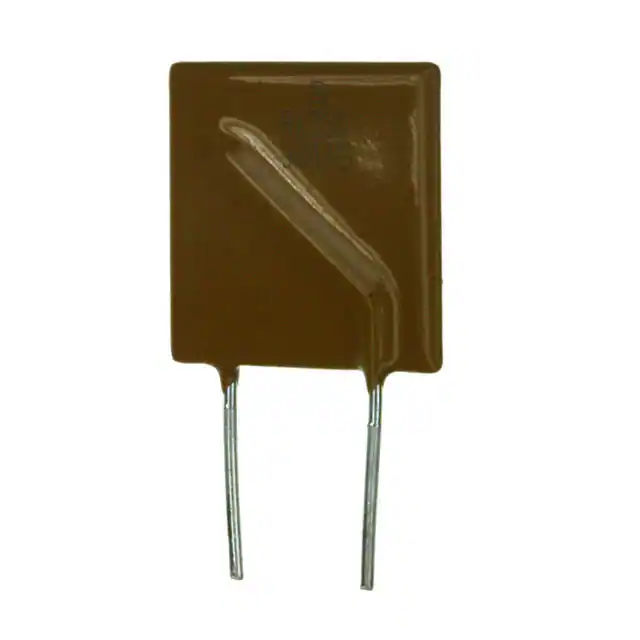

MF-RX250/72-0PTC RESET FUSE 72V 2.5A RADIAL |
4,815 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | Multifuse®, MF-RX/72 | Active | Polymeric | 72V | 40 A | 2.5 A | 5 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.839 L x 0.122 W (21.30mm x 3.10mm) | 1.039 (26.40mm) | - | |
MF-R020PTC RESET FUSE 60V 200MA RADIAL |
2,267 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | Multifuse®, MF-R | Active | Polymeric | 60V | 40 A | 200 mA | 400 mA | 2.2 s | 1.5 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.122 T (7.40mm x 3.10mm) | 0.500 (12.70mm) | - | |

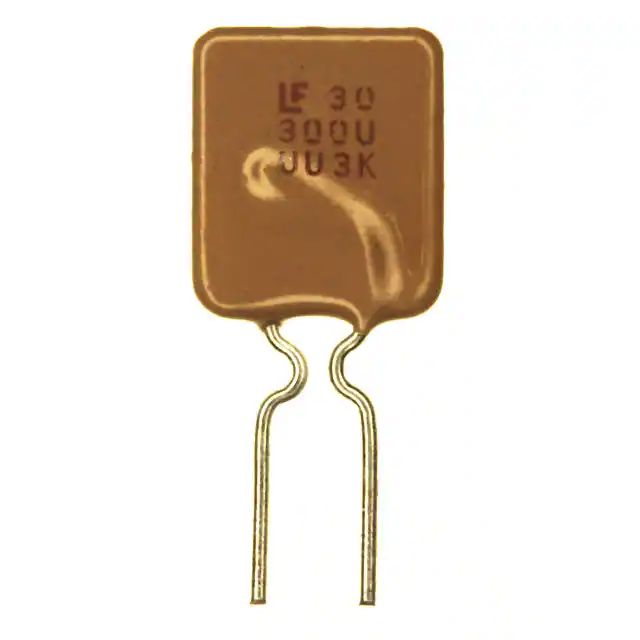

30R300UUPTC RESET FUSE 30V 3A RADIAL |
4,672 | - |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 30R | Active | Polymeric | 30V | 40 A | 3 A | 6 A | 10.8 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.449 L x 0.118 W (11.40mm x 3.00mm) | 0.756 (19.20mm) | - | |
RHEF050PTC RESET FUSE 30V 500MA RADIAL |
12,300 | - |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RHEF | Active | Polymeric | 30V | 40 A | 500 mA | 920 mA | 2.5 s | 480 mOhms | 1.1 Ohms | - | -40°C ~ 125°C | - | Through Hole | 0.291 Dia x 0.118 T (7.40mm x 3.00mm) | 0.500 (12.70mm) | - | |

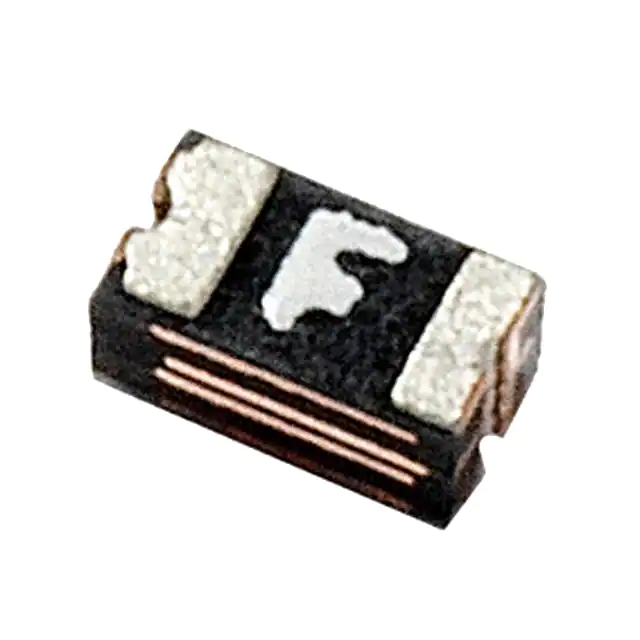

0603L001/60YRPTC RESET FUSE 60V 10MA 0603 |
7,475 | - |
RFQ |
Datasheet |
0603 (1608 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 0603L | Active | Polymeric | 60V | 40 A | 10 mA | 50 mA | 1 s | 15 Ohms | 100 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.063 L x 0.031 W (1.60mm x 0.80mm) | - | 0.039 (1.00mm) | |
RGEF500PTC RESET FUSE 16V 5A RADIAL |
8,500 | - |
RFQ |
Datasheet |
Radial, Disc | Bag,Bag | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 5 A | 8.5 A | 2 s | 15 mOhms | 34 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.390 L x 0.098 W (9.90mm x 2.50mm) | 0.563 (14.30mm) | - | |
0ZRE0040FF1APTC RESET FUSE 240V 400MA RADIAL |
6,430 | - |
RFQ |
Datasheet |
Radial, Disc | Box | 0ZRE | Active | Polymeric | 240V | 7 A | 400 mA | 900 mA | 24 s | 600 mOhms | 1.9 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.453 L x 0.150 W (11.50mm x 3.80mm) | 0.768 (19.50mm) | - | |

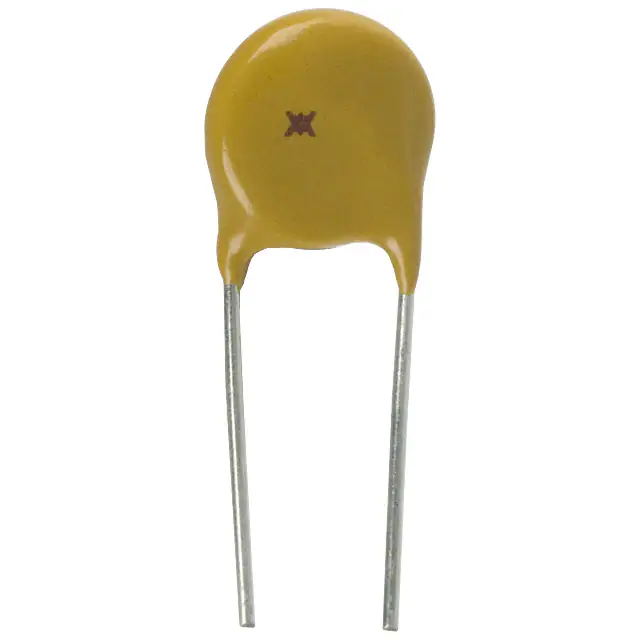

LVR008NKPTC RESET FUSE 240V 80MA RADIAL |
9,354 | - |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, LVR | Active | Polymeric | 240V (265V Int) | 1.2 A | 80 mA | 190 mA | 10 s | 7.4 Ohms | 26 Ohms | - | -20°C ~ 85°C | - | Through Hole | 0.283 Dia x 0.181 T (7.20mm x 4.60mm) | 0.488 (12.40mm) | - | |
SRP175FPTC RESET FUSE 15V 1.75A STRAP |
2,350 | - |
RFQ |
Datasheet |
Strap | Bulk | PolySwitch®, SRP | Active | Polymeric | 15V | 100 A | 1.75 A | 3.8 A | 5 s | 50 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.866 L x 0.199 W (22.00mm x 5.05mm) | - | 0.039 (1.00mm) | |

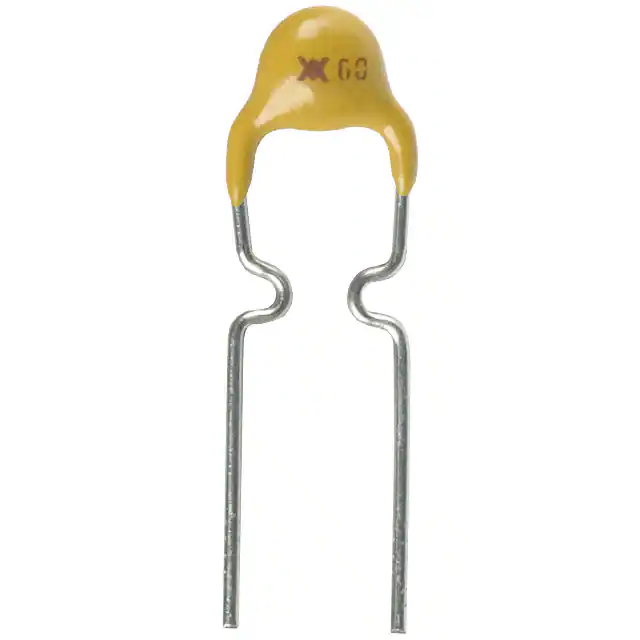

RXEF010-2PTC RESET FUSE 60V 100MA RADIAL |
26,984 | - |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RXEF | Active | Polymeric | 60V | 40 A | 100 mA | 200 mA | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.118 T (7.40mm x 3.00mm) | 0.457 (11.60mm) | - | |
RXEF020-2PTC RESET FUSE 72V 200MA RADIAL |
8,150 | - |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 200 mA | 400 mA | 2.2 s | 1.83 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.118 T (7.40mm x 3.00mm) | 0.461 (11.70mm) | - | |
MF-RX135/72-2PTC RESET FUSE 72V 1.35A RADIAL |
74,614 | - |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-RX/72 | Active | Polymeric | 72V | 40 A | 1.35 A | 2.7 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.483 L x 0.122 W (12.26mm x 3.10mm) | 0.718 (18.26mm) | - | |
0ZCF0300AF2CPTC RESET FUSE 15V 3A 2920 |
41,217 | - |
RFQ |
Datasheet |
2920 (7351 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | 0ZCF | Active | Polymeric | 15V | 100 A | 3 A | 5.2 A | 20 s | 10 mOhms | 48 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.290 L x 0.202 W (7.36mm x 5.12mm) | - | 0.045 (1.15mm) | |

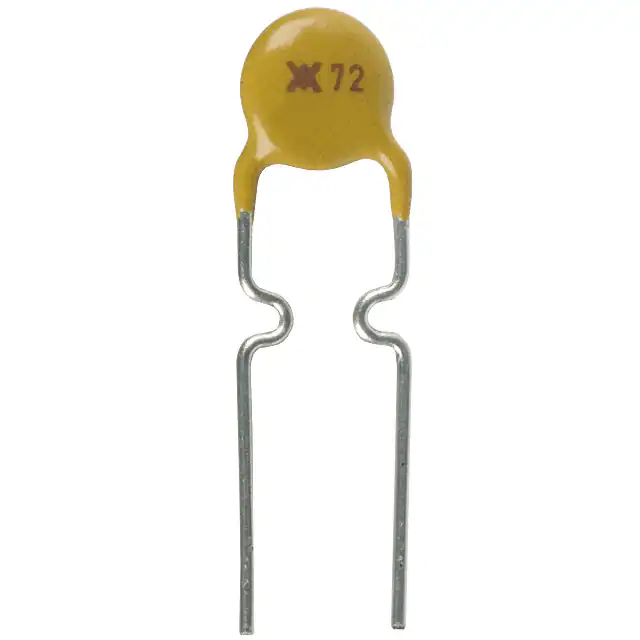

RXEF030-2PTC RESET FUSE 72V 300MA RADIAL |
11,992 | - |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT) | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 300 mA | 600 mA | 3 s | 880 mOhms | 2.1 Ohms | - | - | - | Through Hole | 0.291 Dia x 0.118 T (7.40mm x 3.00mm) | 0.500 (12.70mm) | - | |
MF-NSMF020X-2PTC RESET FUSE 30V 200MA 1206 |
47,154 | - |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | Multifuse®, MF-NSMF | Active | Polymeric | 30V | 60 A | 200 mA | 400 mA | 600 ms | 600 mOhms | 3.3 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | - | 0.033 (0.85mm) | |

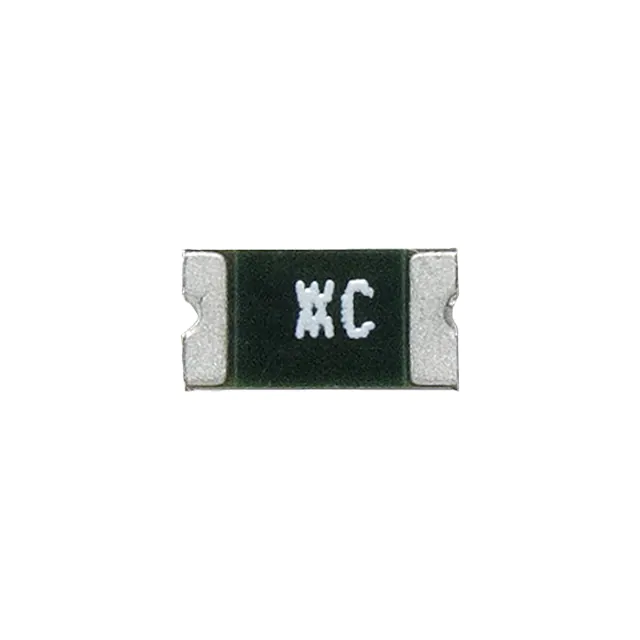

NANOSMDC025F-2PTC RESET FUSE 16V 250MA 1206 |
10,023 | - |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | nanoSMD | Active | Polymeric | 16V | 100 A | 250 mA | 580 mA | 100 ms | - | - | - | -40°C ~ 85°C | - | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.59mm) | - | 0.032 (0.80mm) |
