Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
1206L035YR PTC RESET FUSE 6V 350MA 1206 Littelfuse Inc.	6,890	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 1206L	Active	Polymeric	6V	100 A	350 mA	750 mA	100 ms	300 mOhms	1.2 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.065 W (3.20mm x 1.65mm)	-	0.030 (0.75mm)

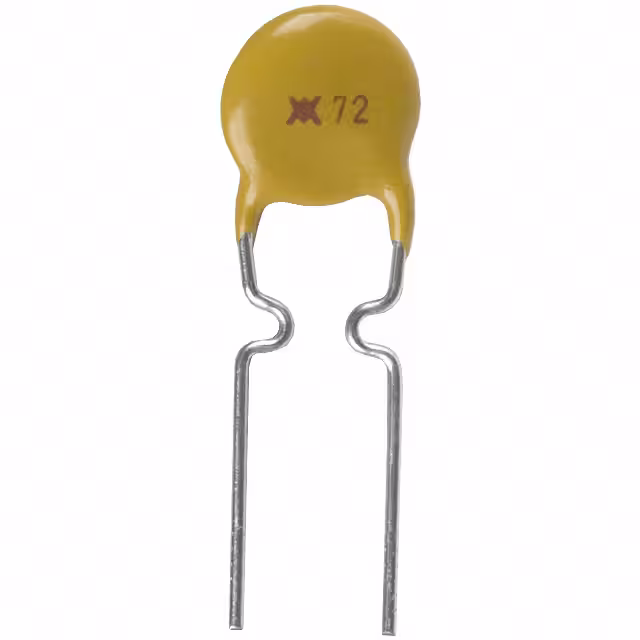

RXEF040-2 PTC RESET FUSE 72V 400MA RADIAL Littelfuse Inc.	11,831	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, RXEF	Active	Polymeric	72V	40 A	400 mA	800 mA	3.8 s	550 mOhms	1.29 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.299 Dia x 0.118 T (7.60mm x 3.00mm)	0.532 (13.50mm)	-

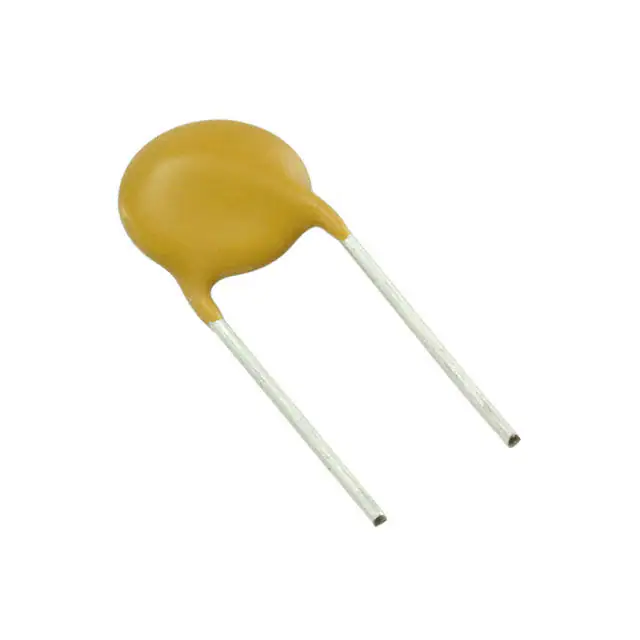

RXEF040S-2 PTC RESET FUSE 72V 400MA RADIAL Littelfuse Inc.	7,765	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, RXEF	Active	Polymeric	72V	40 A	400 mA	800 mA	3.8 s	550 mOhms	1.29 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.299 Dia x 0.118 T (7.60mm x 3.00mm)	0.532 (13.50mm)	-

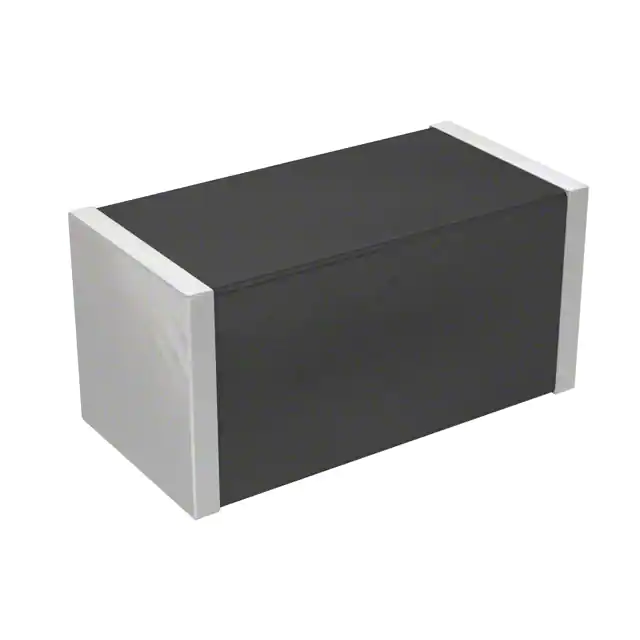

PRG18BC3R3MM1RB PTC RESET FUSE 16V 180MA 0603 Murata Electronics	18,565	-	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR),Cut Tape (CT)	POSISTOR®, PRG	Not For New Designs	Ceramic	16V	6 A	180 mA	400 mA	-	-	-	3.3 Ohms	-20°C ~ 85°C	-	Surface Mount	0.063 L x 0.032 W (1.60mm x 0.80mm)	-	0.037 (0.95mm)
RUEF110-2 PTC RESET FUSE 30V 1.1A RADIAL Littelfuse Inc.	8,917	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, RUEF	Active	Polymeric	30V	100 A	1.1 A	2.2 A	6.6 s	70 mOhms	170 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.291 Dia x 0.118 T (7.40mm x 3.00mm)	0.559 (14.20mm)	-
PRG18BC4R7MM1RB PTC RESET FUSE 20V 155MA 0603 Murata Electronics	4,676	-	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR),Cut Tape (CT)	POSISTOR®, PRG	Not For New Designs	Ceramic	20V	5 A	155 mA	330 mA	-	-	-	4.7 Ohms	-20°C ~ 85°C	-	Surface Mount	0.063 L x 0.032 W (1.60mm x 0.80mm)	-	0.037 (0.95mm)
60R010XPR PTC RESET FUSE 60V 100MA RADIAL Littelfuse Inc.	4,422	-	RFQ	Datasheet	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	POLY-FUSE®, 60R	Active	Polymeric	60V	40 A	100 mA	200 mA	4 s	2.5 Ohms	7.5 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.291 Dia x 0.122 T (7.40mm x 3.10mm)	0.500 (12.70mm)	-
MF-USMF035-2 PTC RESET FUSE 6V 350MA 1210 Bourns Inc.	27,963	-	RFQ	Datasheet	1210 (3225 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-USMF	Active	Polymeric	6V	40 A	350 mA	750 mA	200 ms	200 mOhms	1.3 Ohms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.127 L x 0.102 W (3.22mm x 2.58mm)	-	0.033 (0.85mm)
PFMF.050.2 PTC RESET FUSE 15V 500MA 1812 SCHURTER Inc.	6,933	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PFMF	Active	Polymeric	15V	100 A	500 mA	1 A	150 ms	150 mOhms	1 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.033 (0.85mm)
PFMF.020.2 PTC RESET FUSE 30V 200MA 1812 SCHURTER Inc.	7,254	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PFMF	Active	Polymeric	30V	80 A	200 mA	400 mA	60 ms	400 mOhms	6 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.043 (1.10mm)
PFMF.030.2 PTC RESET FUSE 30V 300MA 1812 SCHURTER Inc.	3,841	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PFMF	Active	Polymeric	30V	10 A	300 mA	600 mA	100 ms	300 mOhms	3 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.043 (1.10mm)
PRG18BC1R0MM1RB PTC RESET FUSE 6V 330MA 0603 Murata Electronics	8,836	-	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR),Cut Tape (CT)	POSISTOR®, PRG	Not For New Designs	Ceramic	6V	7.5 A	330 mA	740 mA	-	-	-	1 Ohms	-20°C ~ 85°C	-	Surface Mount	0.063 L x 0.032 W (1.60mm x 0.80mm)	-	0.037 (0.95mm)
1812L075PR PTC RESET FUSE 13.2V 750MA 1812 Littelfuse Inc.	22,789	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 1812L	Active	Polymeric	13.2V	100 A	750 mA	1.5 A	200 ms	100 mOhms	450 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.030 (0.75mm)
1812L150ZR PTC RESET FUSE 8V 1.25A 1812 Littelfuse Inc.	3,667	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 1812L	Active	Polymeric	8V	100 A	1.25 A	3 A	300 ms	40 mOhms	110 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.049 (1.25mm)
RUEF135-2 PTC RESET FUSE 30V 1.35A RADIAL Littelfuse Inc.	13,022	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, RUEF	Active	Polymeric	30V	100 A	1.35 A	2.7 A	7.3 s	40 mOhms	130 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.350 L x 0.118 W (8.90mm x 3.00mm)	0.532 (13.50mm)	-
MINIASMDC050F-2 PTC RESET FUSE 24V 500MA 1812 Littelfuse Inc.	9,257	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, miniASMD	Active	Polymeric	24V	100 A	500 mA	1 A	150 ms	150 mOhms	1 Ohms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.024 (0.62mm)
MINIASMDC030F-2 PTC RESET FUSE 30V 300MA 1812 Littelfuse Inc.	2,683	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, miniASMD	Active	Polymeric	30V	40 A	300 mA	600 mA	100 ms	200 mOhms	1.75 Ohms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.035 (0.89mm)
PTSLR12066V300 PTC RESET FUSE 6V 3A 1206 Eaton - Electronics Division	7,250	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PTSLR1206	Active	Polymeric	6V	50 A	3 A	6 A	4 s	3 mOhms	26 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.128 L x 0.065 W (3.25mm x 1.65mm)	-	0.047 (1.20mm)

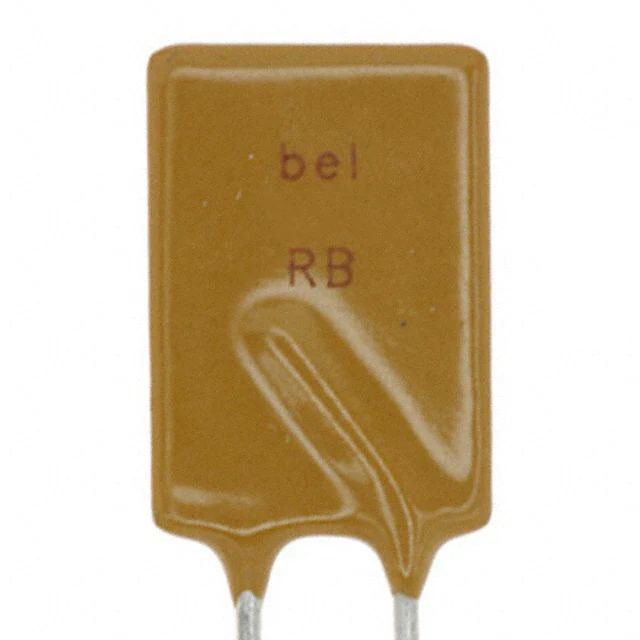

0ZRB0400FF2B PTC RESET FUSE 30V 4A RADIAL Bel Fuse Inc.	1,839	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	0ZRB	Active	Polymeric	30V	40 A	4 A	8 A	12.7 s	10 mOhms	50 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.551 L x 0.118 W (14.00mm x 3.00mm)	0.791 (20.10mm)	-
MF-PSMF035X-2 PTC RESET FUSE 6V 350MA 0805 Bourns Inc.	32,330	-	RFQ	Datasheet	0805 (2012 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-PSMF	Active	Polymeric	6V	40 A	350 mA	750 mA	100 ms	250 mOhms	1.2 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.085 L x 0.053 W (2.15mm x 1.35mm)	-	0.033 (0.85mm)
