Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
MF-R300-2 PTC RESET FUSE 30V 3A RADIAL Bourns Inc.	7,018	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-R	Active	Polymeric	30V	40 A	3 A	6 A	10.8 s	20 mOhms	80 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.472 L x 0.118 W (12.00mm x 3.00mm)	0.720 (18.30mm)	-
MF-MSMF200-2 PTC RESET FUSE 8V 2A 1812 Bourns Inc.	23,378	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-MSMF	Active	Polymeric	8V	40 A	2 A	4 A	3 s	20 mOhms	80 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.033 (0.85mm)
MF-MSMF150-2 PTC RESET FUSE 6V 1.5A 1812 Bourns Inc.	10,883	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-MSMF	Active	Polymeric	6V	100 A	1.5 A	3 A	500 ms	30 mOhms	120 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.033 (0.85mm)
MF-MSMF260-2 PTC RESET FUSE 6V 2.6A 1812 Bourns Inc.	14,849	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-MSMF	Active	Polymeric	6V	100 A	2.6 A	5.2 A	5 s	15 mOhms	80 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.033 (0.85mm)
MF-RM005/240-2 PTC RESET FUSE 240V 50MA RADIAL Bourns Inc.	4,382	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-RM	Active	Polymeric	240V (265V Int)	1 A	50 mA	120 mA	10 s	18.5 Ohms	65 Ohms	-	-20°C ~ 85°C	-	Through Hole	0.327 Dia x 0.150 T (8.30mm x 3.80mm)	0.508 (12.90mm)	-
1206L200PR PTC RESET FUSE 6V 2A 1206 Littelfuse Inc.	10,602	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 1206L	Active	Polymeric	6V	100 A	2 A	3.5 A	1.5 s	18 mOhms	80 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.128 L x 0.065 W (3.25mm x 1.65mm)	-	0.063 (1.60mm)
0ZCN0110AF2C PTC RESET FUSE 33V 1.1A 2016 Bel Fuse Inc.	16,890	-	RFQ	Datasheet	2016 (5041 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	0ZCN	Active	Polymeric	33V	100 A	1.1 A	2.2 A	500 ms	100 mOhms	400 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.200 L x 0.160 W (5.08mm x 4.07mm)	-	0.028 (0.70mm)
SMD150F/33-2920-2 PTC RESET FUSE 33V 1.5A 2SMD Littelfuse Inc.	13,721	-	RFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, SMD	Active	Polymeric	33V	40 A	1.5 A	3 A	5 s	80 mOhms	-	-	-40°C ~ 85°C	-	Surface Mount	0.289 L x 0.202 W (7.35mm x 5.12mm)	-	0.118 (3.00mm)

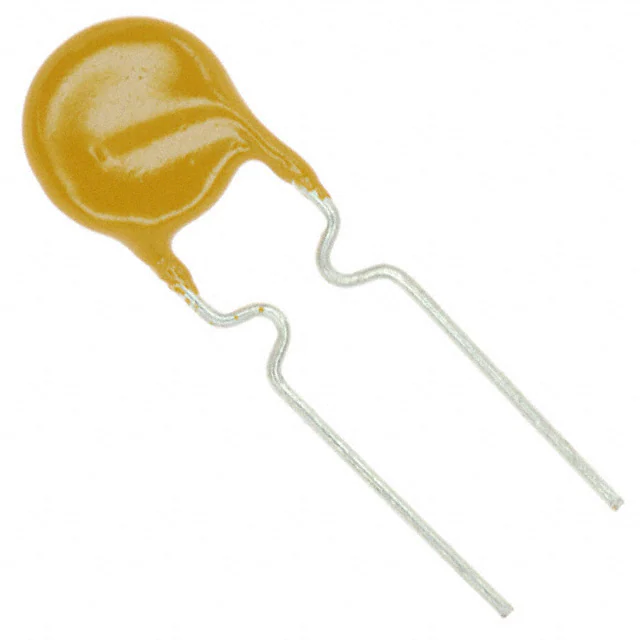

MF-R030-2 PTC RESET FUSE 60V 300MA RADIAL Bourns Inc.	5,627	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-R	Active	Polymeric	60V	40 A	300 mA	600 mA	3 s	760 mOhms	2.1 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.291 Dia x 0.122 T (7.40mm x 3.10mm)	0.528 (13.40mm)	-
MF-R500-2 PTC RESET FUSE 30V 5A RADIAL Bourns Inc.	3,325	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-R	Active	Polymeric	30V	40 A	5 A	10 A	14.5 s	10 mOhms	50 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.685 L x 0.118 W (17.40mm x 3.00mm)	0.980 (24.90mm)	-
SMD100F-2018-2 PTC RESET FUSE 15V 1.1A 2SMD Littelfuse Inc.	12,338	-	RFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, SMD	Active	Polymeric	15V	40 A	1.1 A	2.2 A	500 ms	100 mOhms	400 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.200 L x 0.180 W (5.08mm x 4.58mm)	-	0.060 (1.52mm)
RGEF300-2 PTC RESET FUSE 16V 3A RADIAL Littelfuse Inc.	15,581	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT)	PolySwitch®, RGEF	Active	Polymeric	16V	100 A	3 A	5.1 A	1 s	38 mOhms	97.5 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.260 L x 0.098 W (6.60mm x 2.50mm)	0.433 (11.00mm)	-

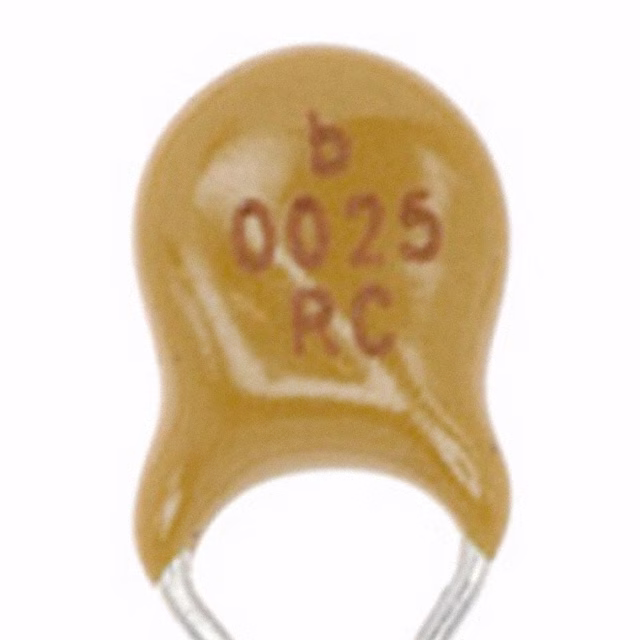

0ZRC0025FF1E PTC RESET FUSE 90V 250MA RADIAL Bel Fuse Inc.	32,997	-	RFQ	Datasheet	Radial, Disc	Box	0ZRC	Active	Polymeric	90V	40 A	250 mA	500 mA	2.5 s	1.25 Ohms	3 Ohms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.291 L x 0.122 W (7.40mm x 3.10mm)	0.500 (12.70mm)	-
MF-USMF075-2 PTC RESET FUSE 6V 750MA 1210 Bourns Inc.	10,885	-	RFQ	Datasheet	1210 (3225 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-USMF	Active	Polymeric	6V	40 A	750 mA	1.5 A	100 ms	70 mOhms	450 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.127 L x 0.102 W (3.22mm x 2.58mm)	-	0.033 (0.85mm)
PFNF.020.2 PTC RESET FUSE 24V 200MA 1206 SCHURTER Inc.	50,291	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PFNF	Active	Polymeric	24V	10 A	200 mA	460 mA	600 ms	600 mOhms	2.6 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.063 W (3.20mm x 1.60mm)	-	0.033 (0.85mm)
PFNF.012.2 PTC RESET FUSE 30V 120MA 1206 SCHURTER Inc.	46,201	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PFNF	Active	Polymeric	30V	10 A	120 mA	290 mA	200 ms	1.35 Ohms	8.5 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.126 L x 0.063 W (3.20mm x 1.60mm)	-	0.043 (1.10mm)

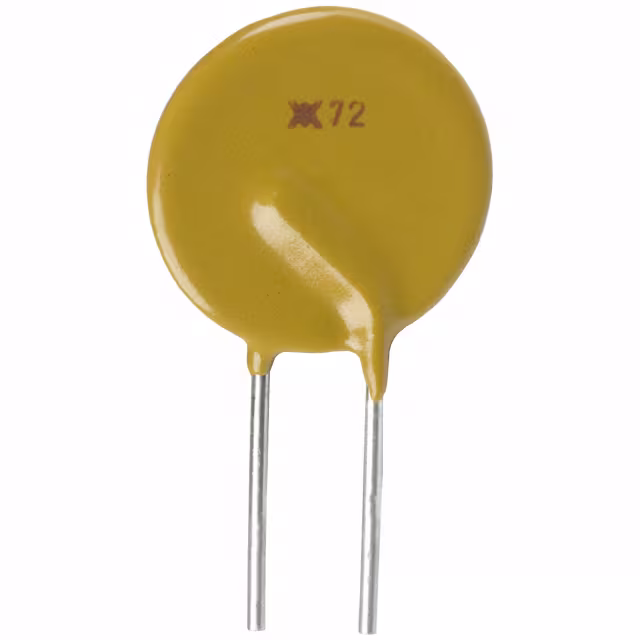

RXEF160-2 PTC RESET FUSE 72V 1.6A RADIAL Littelfuse Inc.	6,500	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT)	PolySwitch®, RXEF	Active	Polymeric	72V	40 A	1.6 A	3.2 A	11.4 s	90 mOhms	220 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.642 Dia x 0.118 T (16.30mm x 3.00mm)	0.819 (20.80mm)	-
0ZRE0033FF2B PTC RESET FUSE 240V 330MA RADIAL Bel Fuse Inc.	14,970	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	0ZRE	Active	Polymeric	240V	6 A	330 mA	740 mA	21 s	830 mOhms	2.6 Ohms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.449 L x 0.150 W (11.40mm x 3.80mm)	0.650 (16.50mm)	-
SMD300F-2 PTC RESET FUSE 6V 3A 2SMD Littelfuse Inc.	8,159	-	RFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, SMD	Active	Polymeric	6V	40 A	3 A	6 A	35 s	15 mOhms	48 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.290 L x 0.202 W (7.36mm x 5.12mm)	-	0.118 (3.00mm)
MF-USMF150-2 PTC RESET FUSE 6V 1.5A 1210 Bourns Inc.	4,176	-	RFQ	Datasheet	1210 (3225 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-USMF	Active	Polymeric	6V	40 A	1.5 A	3 A	5 s	30 mOhms	110 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.127 L x 0.102 W (3.22mm x 2.58mm)	-	0.033 (0.85mm)
