Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
1206L010/30WR PTC RESET FUSE 30V 100MA 1206 Littelfuse Inc.	81,071	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 1206L	Active	Polymeric	30V	10 A	100 mA	250 mA	1.5 s	1.5 Ohms	10 Ohms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.126 L x 0.065 W (3.20mm x 1.65mm)	-	-
MICROASMD005F-2 PTC RESET FUSE 30V 50MA 1210 Littelfuse Inc.	18,900	-	RFQ	Datasheet	1210 (3225 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, microASMD	Active	Polymeric	30V	10 A	50 mA	150 mA	1.5 s	3.6 Ohms	50 Ohms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.127 L x 0.102 W (3.22mm x 2.58mm)	-	0.026 (0.67mm)
MICROASMD010F-2 PTC RESET FUSE 30V 100MA 1210 Littelfuse Inc.	15,282	-	RFQ	Datasheet	1210 (3225 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, microASMD	Active	Polymeric	30V	10 A	100 mA	250 mA	1 s	2.1 Ohms	15 Ohms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.127 L x 0.102 W (3.22mm x 2.58mm)	-	0.026 (0.67mm)
0ZCN0030FF2C PTC RESET FUSE 60V 300MA 2016 Bel Fuse Inc.	14,896	-	RFQ	Datasheet	2016 (5041 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	0ZCN	Active	Polymeric	60V	100 A	300 mA	600 mA	3 s	500 mOhms	2.3 Ohms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.200 L x 0.160 W (5.08mm x 4.07mm)	-	0.045 (1.15mm)

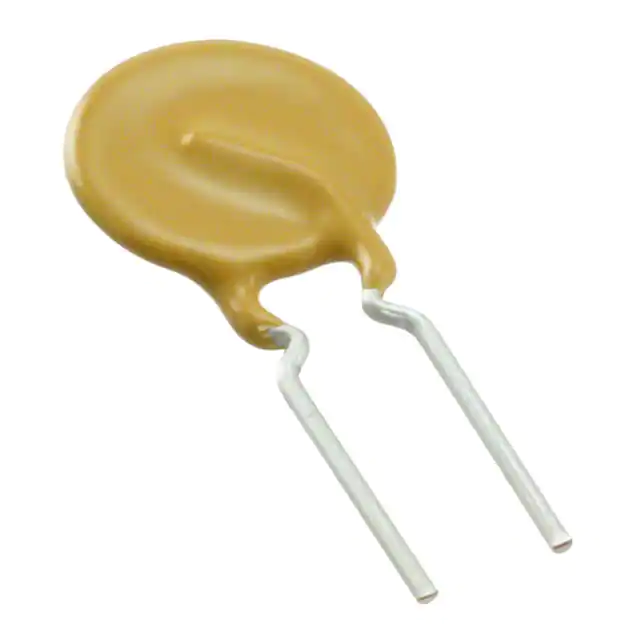

RXEF110K-2 PTC RESET FUSE 72V 1.1A RADIAL Littelfuse Inc.	10,695	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, RXEF	Active	Polymeric	72V	40 A	1.1 A	2.2 A	8.2 s	150 mOhms	380 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.504 Dia x 0.118 T (12.80mm x 3.00mm)	0.689 (17.50mm)	-
RXEF110-2 PTC RESET FUSE 72V 1.1A RADIAL Littelfuse Inc.	7,500	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR)	PolySwitch®, RXEF	Active	Polymeric	72V	40 A	1.1 A	2.2 A	8.2 s	150 mOhms	380 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.504 Dia x 0.118 T (12.80mm x 3.00mm)	0.689 (17.50mm)	-
1812L260THDR PTC RESET FUSE 8V 2.6A 1812 Littelfuse Inc.	16,230	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 1812L	Active	Polymeric	8V	100 A	2.6 A	5.2 A	2.5 s	15 mOhms	47 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.039 (1.00mm)
30R250UPR PTC RESET FUSE 30V 2.5A RADIAL Littelfuse Inc.	3,404	-	RFQ	Datasheet	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	POLY-FUSE®, 30R	Active	Polymeric	30V	40 A	2.5 A	5 A	10.3 s	20 mOhms	70 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.449 L x 0.118 W (11.40mm x 3.00mm)	0.720 (18.30mm)	-
0ZCF0110AF2A PTC RESET FUSE 60V 1.1A 2920 Bel Fuse Inc.	93,421	-	RFQ	Datasheet	2920 (7351 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	0ZCF	Active	Polymeric	60V	100 A	1.1 A	2.2 A	500 ms	90 mOhms	410 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.290 L x 0.202 W (7.36mm x 5.12mm)	-	0.067 (1.70mm)
RUSBF090-2 PTC RESET FUSE 16V 900MA RADIAL Littelfuse Inc.	5,673	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, RUSBF	Active	Polymeric	16V	40 A	900 mA	1.8 A	1.2 s	70 mOhms	180 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.291 L x 0.122 W (7.40mm x 3.10mm)	0.480 (12.20mm)	-
0ZCF0260AF2C PTC RESET FUSE 24V 2.6A 2920 Bel Fuse Inc.	84,339	-	RFQ	Datasheet	2920 (7351 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	0ZCF	Active	Polymeric	24V	100 A	2.6 A	5.2 A	20 s	20 mOhms	75 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.290 L x 0.202 W (7.36mm x 5.12mm)	-	0.067 (1.70mm)
60R110XMR PTC RESET FUSE 60V 1.1A RADIAL Littelfuse Inc.	24,297	-	RFQ	Datasheet	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	POLY-FUSE®, 60R	Active	Polymeric	60V	40 A	1.1 A	2.2 A	8.2 s	150 mOhms	380 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.512 Dia x 0.122 T (13.00mm x 3.10mm)	0.717 (18.20mm)	-
1812L160/12DR PTC RESET FUSE 12V 1.6A 1812 Littelfuse Inc.	14,057	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 1812L	Active	Polymeric	12V	100 A	1.6 A	2.8 A	1 s	30 mOhms	100 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.049 (1.25mm)
1812L150/12DR PTC RESET FUSE 12V 1.5A 1812 Littelfuse Inc.	4,930	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 1812L	Active	Polymeric	12V	100 A	1.5 A	3 A	500 ms	40 mOhms	110 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.049 (1.25mm)
1812L150/16DR PTC RESET FUSE 16V 1.5A 1812 Littelfuse Inc.	4,600	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 1812L	Active	Polymeric	16V	100 A	1.5 A	3 A	500 ms	40 mOhms	110 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.049 (1.25mm)
RXEF110K-AP PTC RESET FUSE 72V 1.1A RADIAL Littelfuse Inc.	29,015	-	RFQ	Datasheet	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	PolySwitch®, RXEF	Active	Polymeric	72V	40 A	1.1 A	2.2 A	8.2 s	150 mOhms	380 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.504 Dia x 0.118 T (12.80mm x 3.00mm)	0.689 (17.50mm)	-
RXEF135-2 PTC RESET FUSE 72V 1.35A RADIAL Littelfuse Inc.	4,289	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, RXEF	Active	Polymeric	72V	40 A	1.35 A	2.7 A	9.6 s	120 mOhms	300 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.571 Dia x 0.118 T (14.50mm x 3.00mm)	0.752 (19.10mm)	-

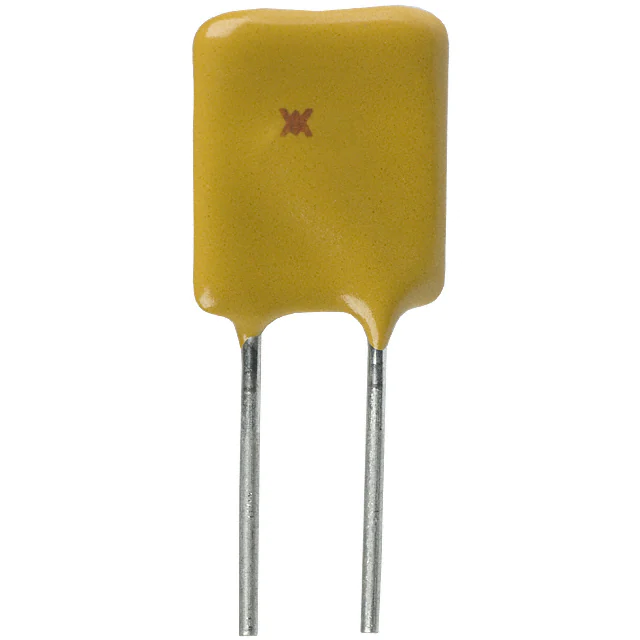

RUEF300-2 PTC RESET FUSE 30V 3A RADIAL Littelfuse Inc.	10,431	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, RUEF	Active	Polymeric	30V	100 A	3 A	6 A	10.8 s	20 mOhms	80 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.449 L x 0.118 W (11.40mm x 3.00mm)	0.650 (16.50mm)	-
0ZCN0075FF2A PTC RESET FUSE 60V 750MA 2016 Bel Fuse Inc.	19,128	-	RFQ	Datasheet	2016 (5041 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	0ZCN	Active	Polymeric	60V	100 A	750 mA	1.5 A	500 ms	130 mOhms	900 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.200 L x 0.160 W (5.08mm x 4.07mm)	-	0.067 (1.70mm)
0ZCN0055FF2A PTC RESET FUSE 60V 550MA 2016 Bel Fuse Inc.	6,289	-	RFQ	Datasheet	2016 (5041 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	0ZCN	Active	Polymeric	60V	100 A	550 mA	1.1 A	5 s	200 mOhms	1 Ohms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.200 L x 0.160 W (5.08mm x 4.07mm)	-	0.067 (1.70mm)
