Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
RHEF100-2 PTC RESET FUSE 30V 1A RADIAL Littelfuse Inc.	9,163	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT)	PolySwitch®, RHEF	Active	Polymeric	30V	40 A	1 A	1.8 A	5.2 s	180 mOhms	430 mOhms	-	-40°C ~ 125°C	-	Through Hole	0.382 Dia x 0.118 T (9.70mm x 3.00mm)	0.535 (13.60mm)	-
MF-SM150-2 PTC RESET FUSE 15V 1.5A 2SMD Bourns Inc.	3,541	-	RFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-SM	Active	Polymeric	15V	100 A	1.5 A	3 A	5 s	60 mOhms	250 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.344 L x 0.264 W (8.75mm x 6.71mm)	-	0.118 (3.00mm)

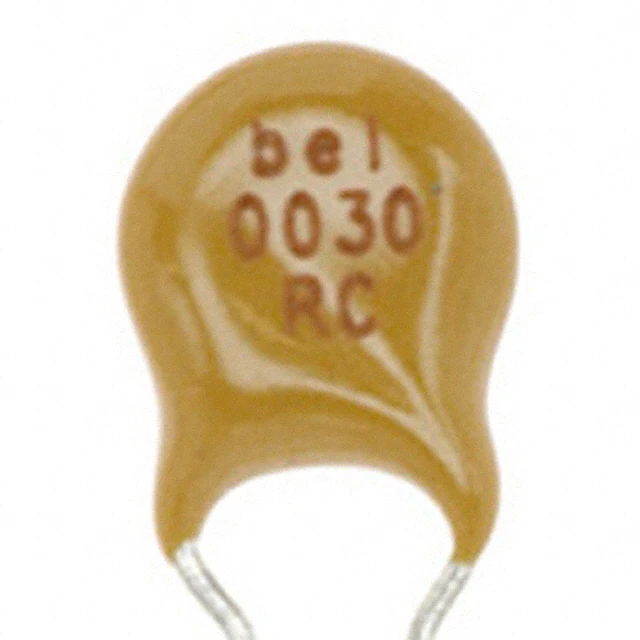

0ZRC0030FF1E PTC RESET FUSE 90V 300MA RADIAL Bel Fuse Inc.	19,226	-	RFQ	Datasheet	Radial, Disc	Box	0ZRC	Active	Polymeric	90V	40 A	300 mA	600 mA	3 s	880 mOhms	2.1 Ohms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.291 L x 0.122 W (7.40mm x 3.10mm)	0.512 (13.00mm)	-

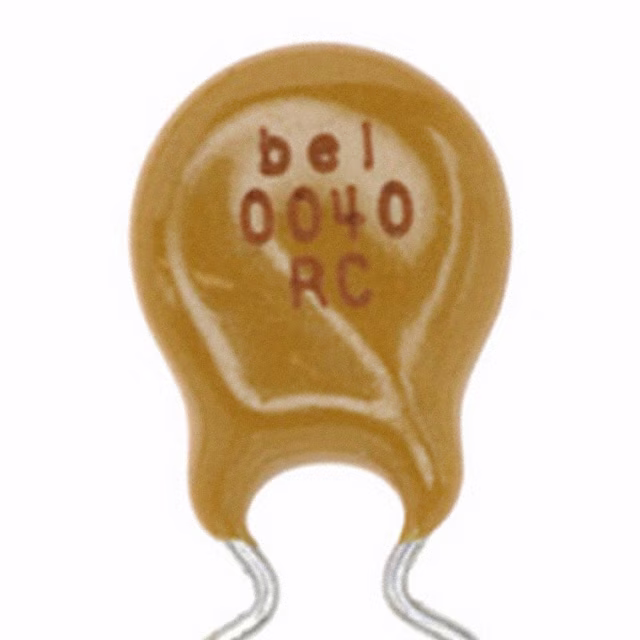

0ZRC0040FF1E PTC RESET FUSE 90V 400MA RADIAL Bel Fuse Inc.	2,729	-	RFQ	Datasheet	Radial, Disc	Box	0ZRC	Active	Polymeric	90V	40 A	400 mA	800 mA	3.8 s	550 mOhms	1.29 Ohms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.299 L x 0.122 W (7.60mm x 3.10mm)	0.532 (13.50mm)	-

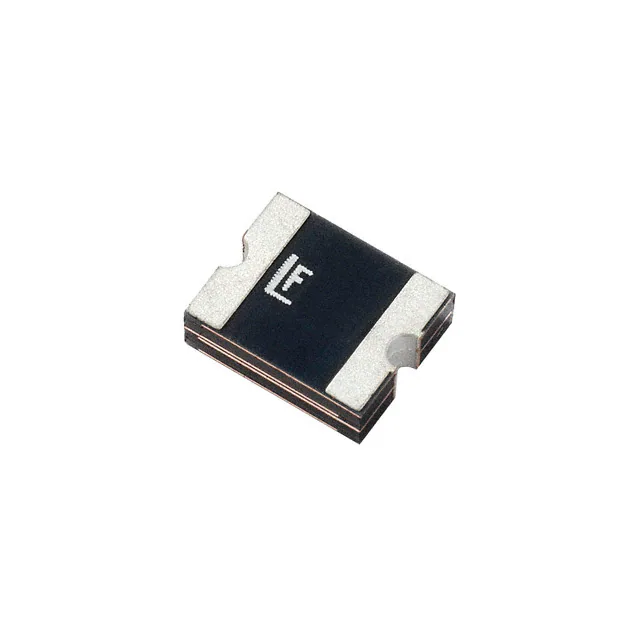

2016L100PR PTC RESET FUSE 15V 1.1A 2016 Littelfuse Inc.	3,913	-	RFQ	Datasheet	2016 (5041 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 2016L	Active	Polymeric	15V	40 A	1.1 A	2.2 A	500 ms	100 mOhms	400 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.200 L x 0.160 W (5.08mm x 4.07mm)	-	0.030 (0.75mm)
SMD300F/15-2 PTC RESET FUSE 15V 3A 2SMD Littelfuse Inc.	37,530	-	RFQ	Datasheet	2-SMD	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, SMD	Active	Polymeric	15V	40 A	3 A	6 A	35 s	15 mOhms	50 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.290 L x 0.202 W (7.36mm x 5.12mm)	-	0.118 (3.00mm)

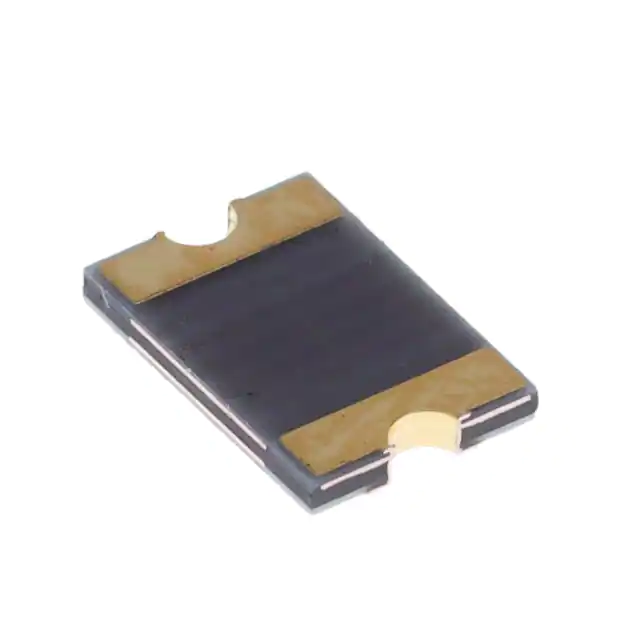

MF-MSMF050/30X-2 PTC RESETTABLE 0.5A 30V SMD 1812 Bourns Inc.	8,436	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-MSMF	Active	Polymeric	30V	40 A	500 mA	1 A	200 ms	150 mOhms	1.3 Ohms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.181 L x 0.128 W (4.60mm x 3.24mm)	-	0.033 (0.85mm)

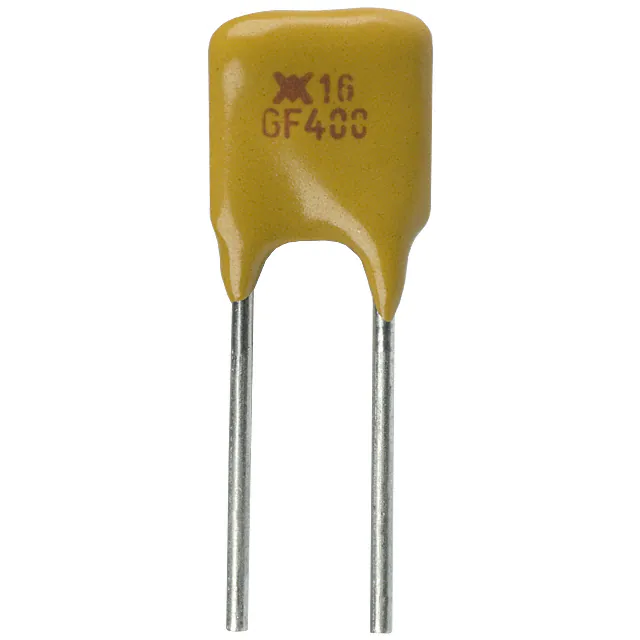

RGEF400-2 PTC RESET FUSE 16V 4A RADIAL Littelfuse Inc.	15,700	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, RGEF	Active	Polymeric	16V	100 A	4 A	6.8 A	1.7 s	21 mOhms	60 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.331 L x 0.098 W (8.40mm x 2.50mm)	0.504 (12.80mm)	-
RXEF185-2 PTC RESET FUSE 72V 1.85A RADIAL Littelfuse Inc.	9,614	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, RXEF	Active	Polymeric	72V	40 A	1.85 A	3.7 A	12.6 s	80 mOhms	190 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.689 Dia x 0.118 T (17.50mm x 3.00mm)	0.882 (22.40mm)	-
PFMF.075.24.2 PTC RESET FUSE 24V 750MA 1812 SCHURTER Inc.	4,524	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PFMF	Active	Polymeric	24V	40 A	750 mA	1.5 A	200 ms	110 mOhms	450 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.033 (0.85mm)
1206L005/60WR-A PTC RESET FUSE 60V 50MA 1206 Littelfuse Inc.	28,493	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 1206L	Active	Polymeric	60V	10 A	50 mA	150 mA	1.5 s	3.6 Ohms	20 Ohms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.126 L x 0.065 W (3.20mm x 1.65mm)	-	0.049 (1.25mm)
2920L030DR PTC RESET FUSE 60V 300MA 2920 Littelfuse Inc.	36,673	-	RFQ	Datasheet	2920 (7351 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 2920L	Active	Polymeric	60V	10 A	300 mA	600 mA	3 s	1.2 Ohms	4.8 Ohms	-	-40°C ~ 85°C	-	Surface Mount	0.289 L x 0.202 W (7.35mm x 5.12mm)	-	0.049 (1.25mm)
NANOSMDCH010F-02 PTC RESET FUSE 30V 100MA 1206 Littelfuse Inc.	12,011	-	RFQ	Datasheet	1206 (3216 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, nanoSMD	Active	Polymeric	30V	10 A	100 mA	350 mA	100 ms	1.1 Ohms	10 Ohms	-	-40°C ~ 125°C	-	Surface Mount	0.126 L x 0.063 W (3.20mm x 1.59mm)	-	0.028 (0.70mm)
MF-RM033/240-2 PTC RESET FUSE 240V 330MA RADIAL Bourns Inc.	6,709	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-RM	Active	Polymeric	240V (265V Int)	4.5 A	330 mA	740 mA	21 s	770 mOhms	2.6 Ohms	-	-20°C ~ 85°C	-	Through Hole	0.449 L x 0.150 W (11.40mm x 3.80mm)	0.787 (20.00mm)	-
MF-RX250/72-2 PTC RESET FUSE 72V 2.5A RADIAL Bourns Inc.	6,411	-	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-RX/72	Active	Polymeric	72V	40 A	2.5 A	5 A	15.6 s	50 mOhms	130 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.702 L x 0.122 W (17.84mm x 3.10mm)	0.939 (23.84mm)	-

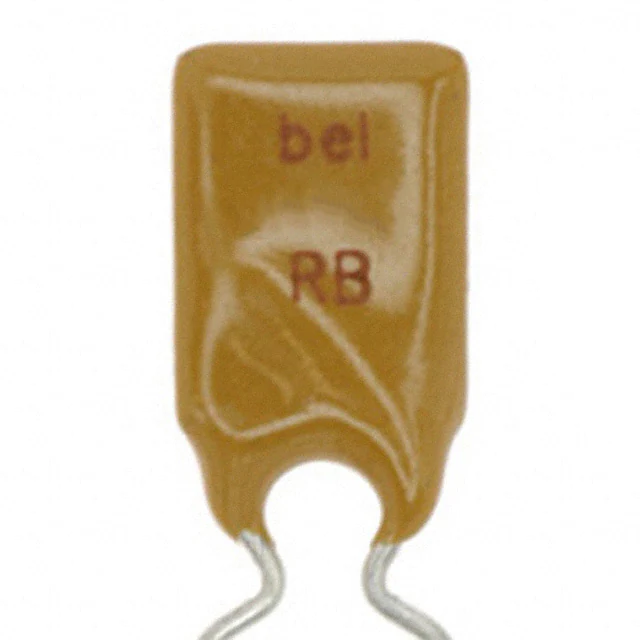

0ZRB0090FF1C PTC RESET FUSE 30V 900MA RADIAL Bel Fuse Inc.	1,197	-	RFQ	Datasheet	Radial, Disc	Box	0ZRB	Active	Polymeric	30V	40 A	900 mA	1.8 A	5.9 s	70 mOhms	220 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.291 L x 0.118 W (7.40mm x 3.00mm)	0.480 (12.20mm)	-
2016L150/33DR PTC RESET FUSE 33V 1.5A 2016 Littelfuse Inc.	1,761	-	RFQ	Datasheet	2016 (5041 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	POLY-FUSE®, 2016L	Active	Polymeric	33V	40 A	1.5 A	3 A	1 s	70 mOhms	180 mOhms	-	-40°C ~ 85°C	-	Surface Mount	0.200 L x 0.160 W (5.08mm x 4.07mm)	-	0.063 (1.60mm)
0ZRC0050FF1E PTC RESET FUSE 90V 500MA RADIAL Bel Fuse Inc.	37,118	-	RFQ	Datasheet	Radial, Disc	Box	0ZRC	Active	Polymeric	90V	40 A	500 mA	1 A	4 s	500 mOhms	1.17 Ohms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.311 L x 0.122 W (7.90mm x 3.10mm)	-	-
MF-MSMF075/30-2 PTC RESET FUSE 30V 750MA 1812 Bourns Inc.	3,681	-	RFQ	Datasheet	1812 (4532 Metric), Concave	Tape & Reel (TR),Cut Tape (CT)	Multifuse®, MF-MSMF	Active	Polymeric	30V	-	750 mA	1.5 A	200 ms	110 mOhms	450 mOhms	-	-40°C ~ 85°C	AEC-Q200	Surface Mount	0.179 L x 0.128 W (4.55mm x 3.24mm)	-	0.033 (0.85mm)
60R250XMR PTC RESET FUSE 60V 2.5A RADIAL Littelfuse Inc.	2,717	-	RFQ	Datasheet	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	POLY-FUSE®, 60R	Active	Polymeric	60V	40 A	2.5 A	5 A	15.6 s	50 mOhms	130 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.785 Dia x 0.122 T (19.93mm x 3.10mm)	1.032 (26.20mm)	-
